Zyxel ZyWALL USG 20 [31/150] Configure port roles

Chapter 2 How to Set Up Your Network

ZyWALL USG 20-2000 User’s Guide

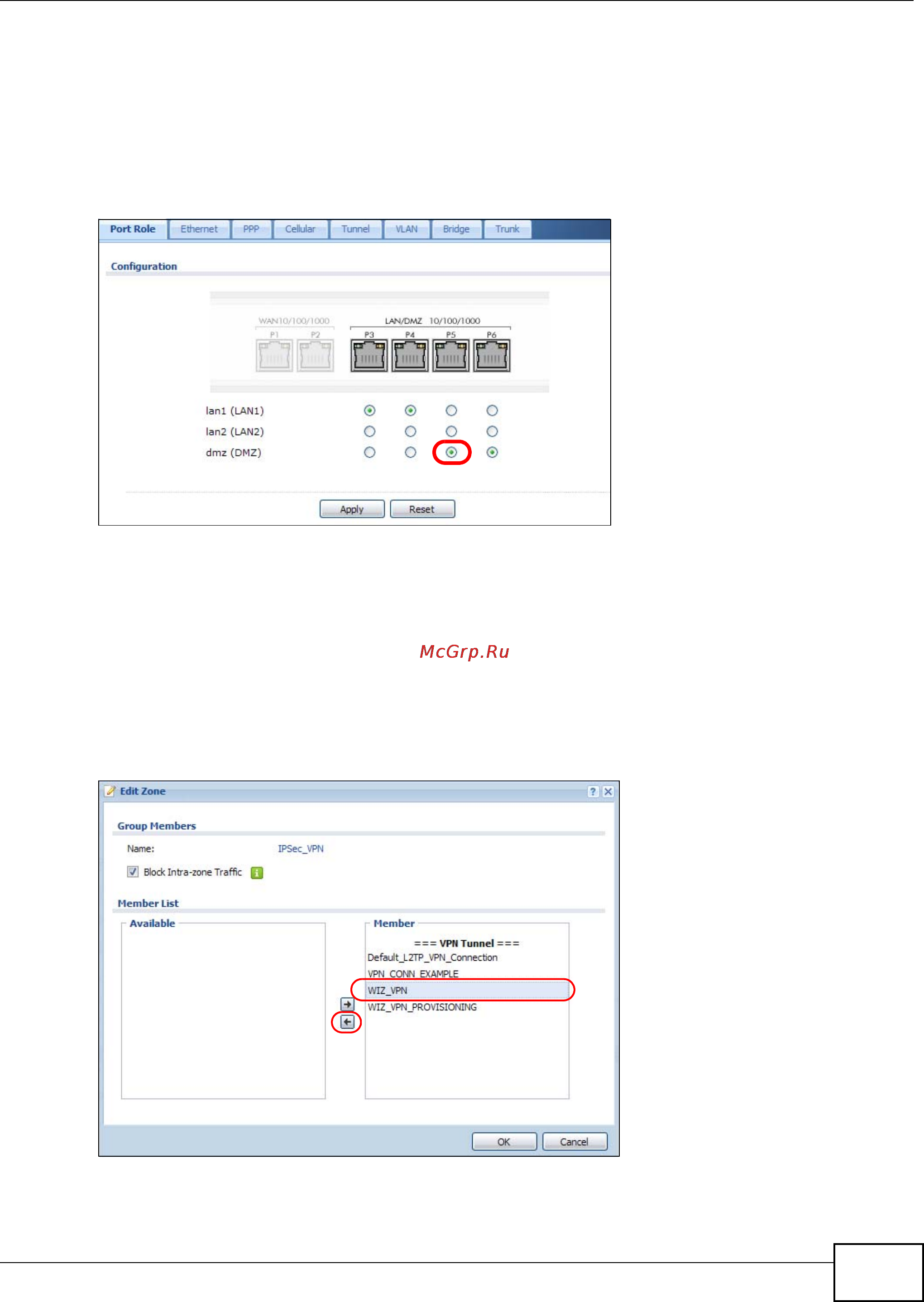

2.2.2 Configure Port Roles

Here is how to take the P5 port from the lan2 interface and add it to the dmz interface.

1 Click Configuration > Network > Interface > Port Role.

2 Under P5 select the dmz (DMZ) radio button and click Apply.

2.2.3 Configure Zones

In this example you have created a WIZ_VPN tunnel through the Quick Setup - VPN Setup

wizard. By default, it is assigned to the IPSec_VPN zone. Do the following to move WIZ_VPN

from the IPSec_VPN zone to a new zone.

1 Click Configuration > Network > Zone and then double-click the IPSec_VPN entry.

2 Select WIZ_VPN and remove it from the Member box and click OK.
