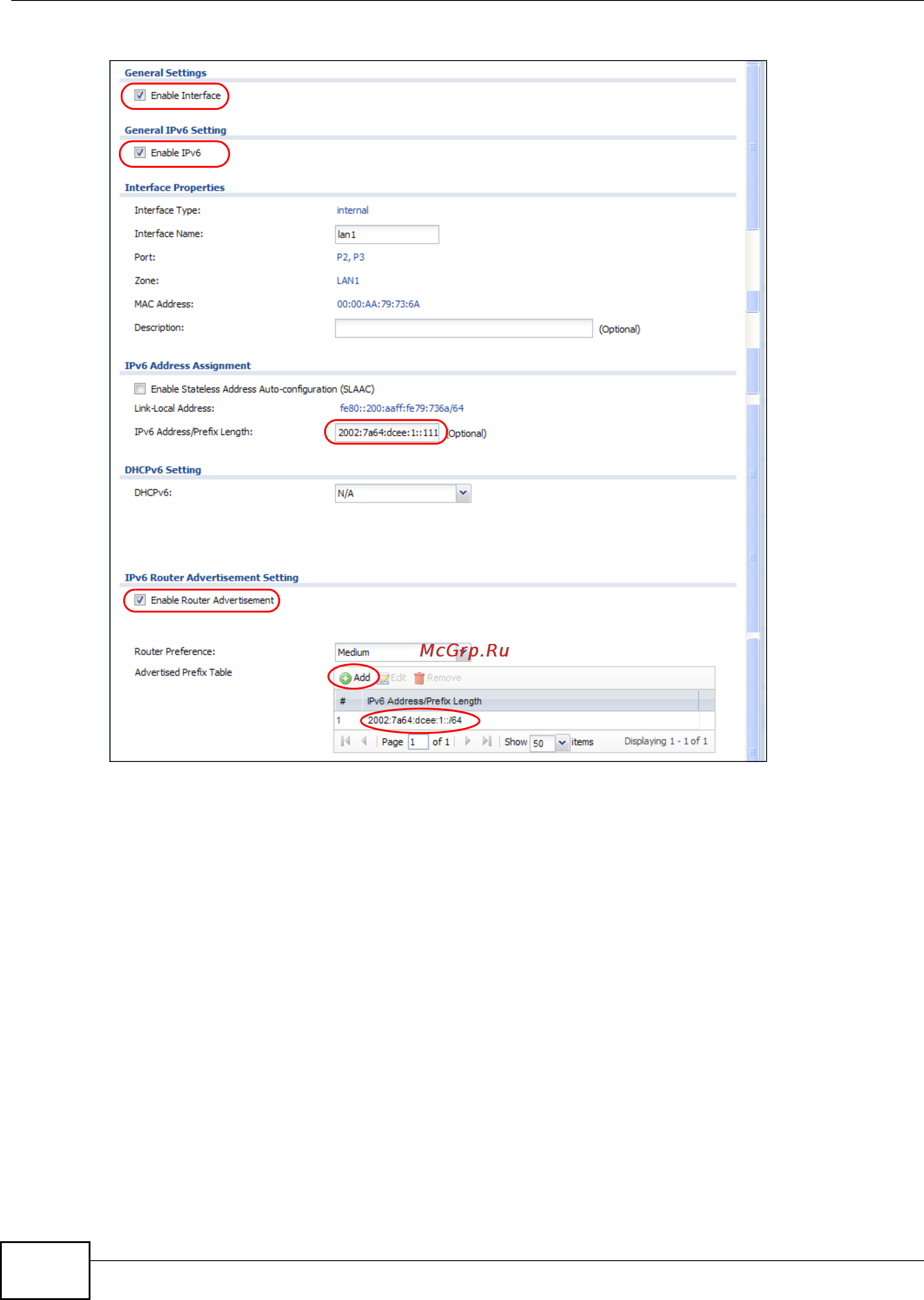

Chapter 2 How to Set Up Your Network
ZyWALL USG 20-2000 User’s Guide
46
2.7.3 Setting Up the 6to4 Tunnel
1 Click Add in the CONFIGURATION > Network > Interface > Tunnel screen.
2 The Add Tunnel screen appears. Select Enable.
Enter tunnel0 as the Interface Name and select 6to4 as the Tunnel Mode.
In the 6to4 Tunnel Parameter section, this example just simply uses the default 6to4 Prefix,
2002:://16. Enter your relay router’s IP address (192.88.99.1 in this example).
Select wan1 as the gateway. Click OK.
