Chapter 4 Create Secure Connections Across the Internet
ZyWALL USG 20-2000 User’s Guide
87

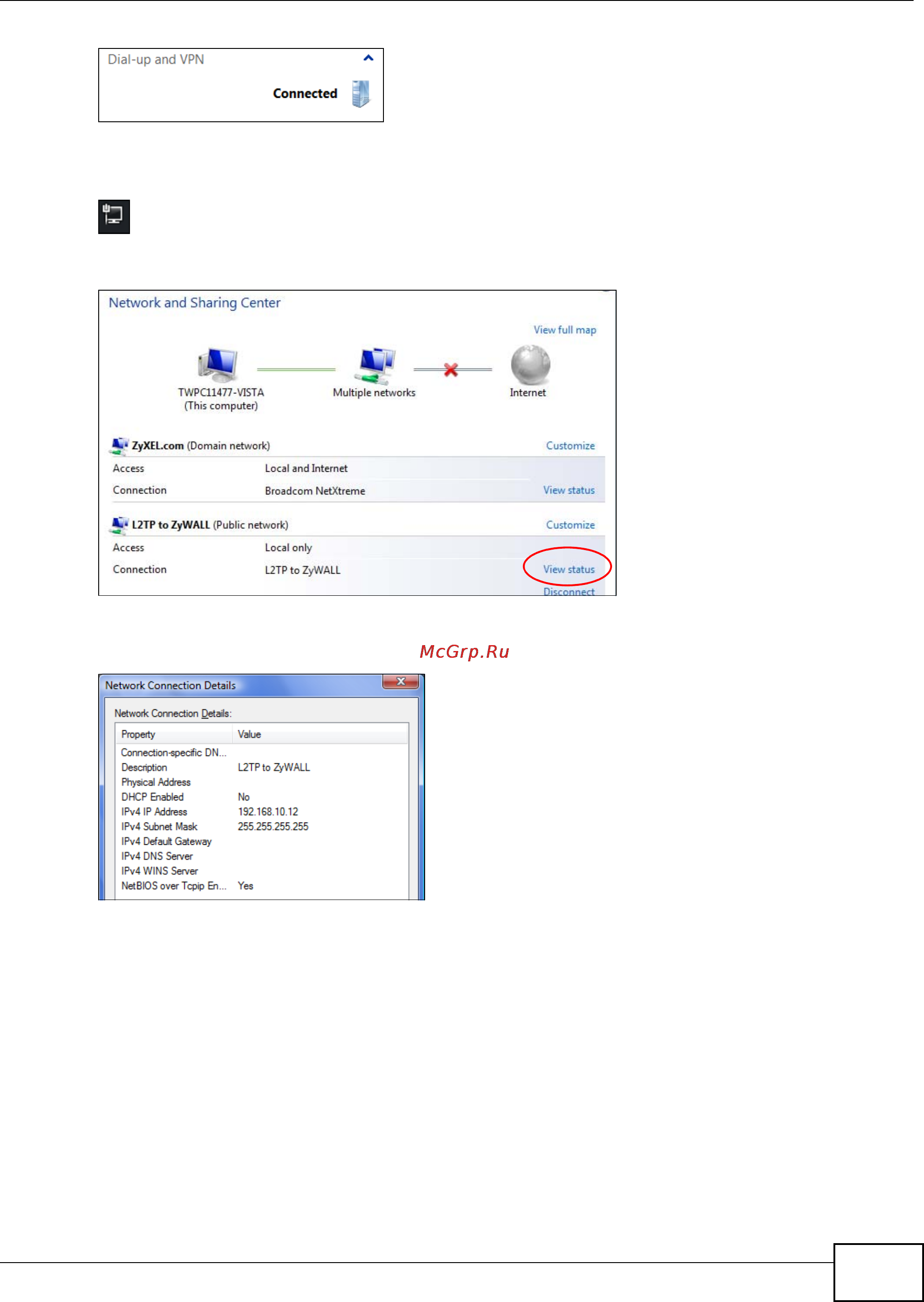

3 After the connection is up a connection icon displays in your system tray. Click it and then the L2TP
connection to open a status screen.
4 Click the L2TP connection’s View status link to open a status screen.
5 Click Details to see the address that you received is from the L2TP range you specified on the
ZyWALL (192.168.10.10-192.168.10.20 in the example).
6 Access a server or other network resource behind the ZyWALL to make sure your access works.
4.6.5.2 Configuring L2TP in Windows XP
In Windows XP, first issue the following command from the Windows command prompt (including
the quotes) to make sure the computer is running the Microsoft IPSec service.
net start "ipsec services".
Then do the following to establish an L2TP VPN connection.
1 Click Start > Control Panel > Network Connections > New Connection Wizard.
L2TP to ZyWALL
