Chapter 4 Create Site-to-Site VPN Tunnels
ZyWALL/USG Series Handbook
172
3 On the Create virtual network page, enter the NAME for the VPN network. For example,
VPN_Vnet_to_USG. Add your Address Space, Subnet name and a single Subnet address
range.
Click Resource group and either select an existing resource group, or create a new one by typing
a name for your new resource group. For example, RG_USG.
LOCATION is directly related to the physical location (region) where the virtual machines (VMs)
reside. The region associated with the virtual network cannot be changed after it has been created.
Then, click the Create button. After clicking Create, you will see a tile on your dashboard that will
reflect the progress of your VNet. The tile will change as the VNet is being created.

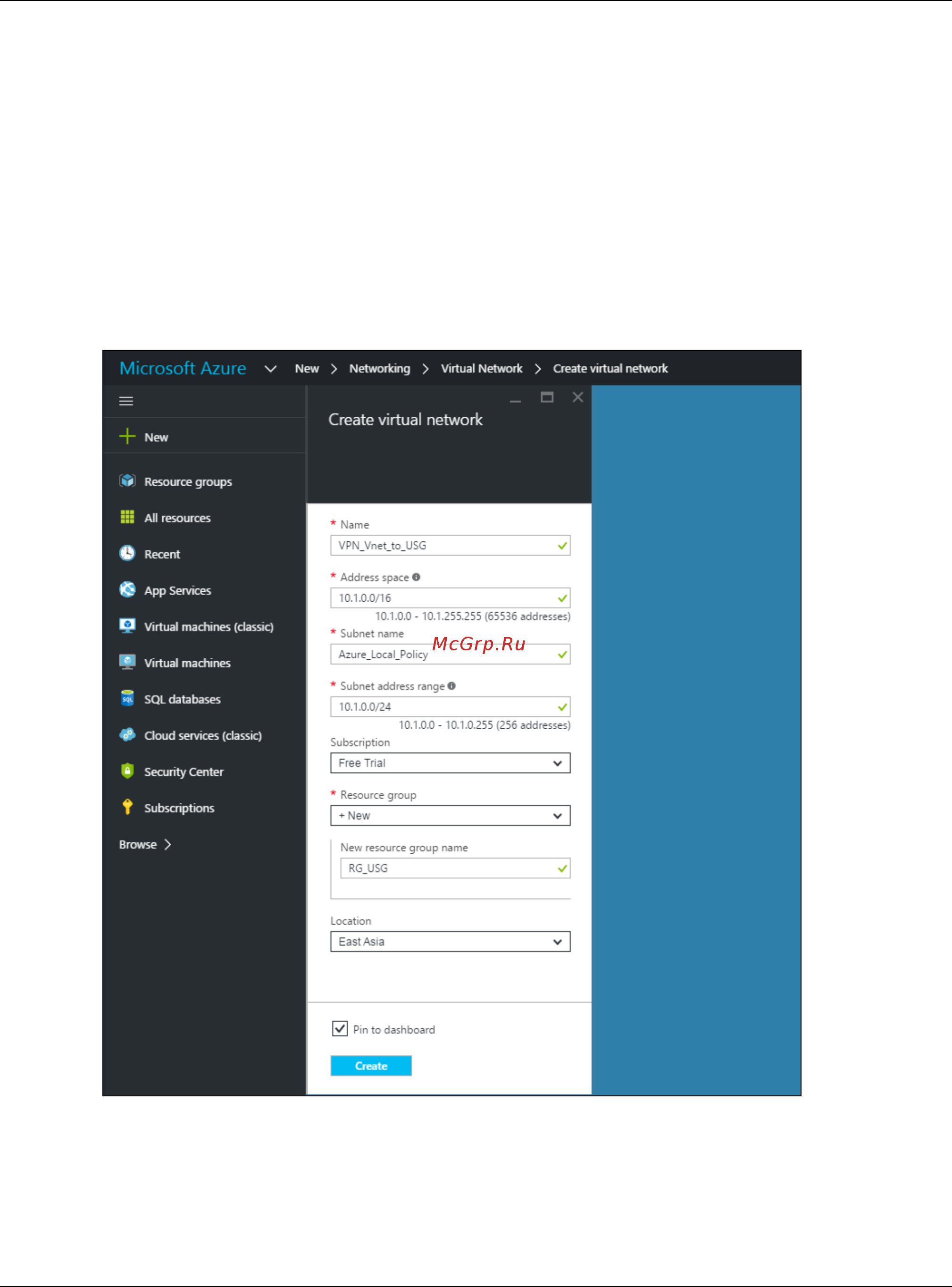

Figure 356 New > Networking > Virtual Network > Create virtual network
