Chapter 4 Create Site-to-Site VPN Tunnels
ZyWALL/USG Series Handbook
173
4 In the portal, navigate to the virtual network to which you just created. On the blade for your
virtual network, click the Settings icon at the top of the blade to expand the Setting blade to
Subnets > Add > Add Subnet. Name your subnet GatewaySubnet. You should not name it
anything else, or the gateway will not work. Add the IP Address range for your gateway. Click OK
at the bottom of the blade to create the subnet.

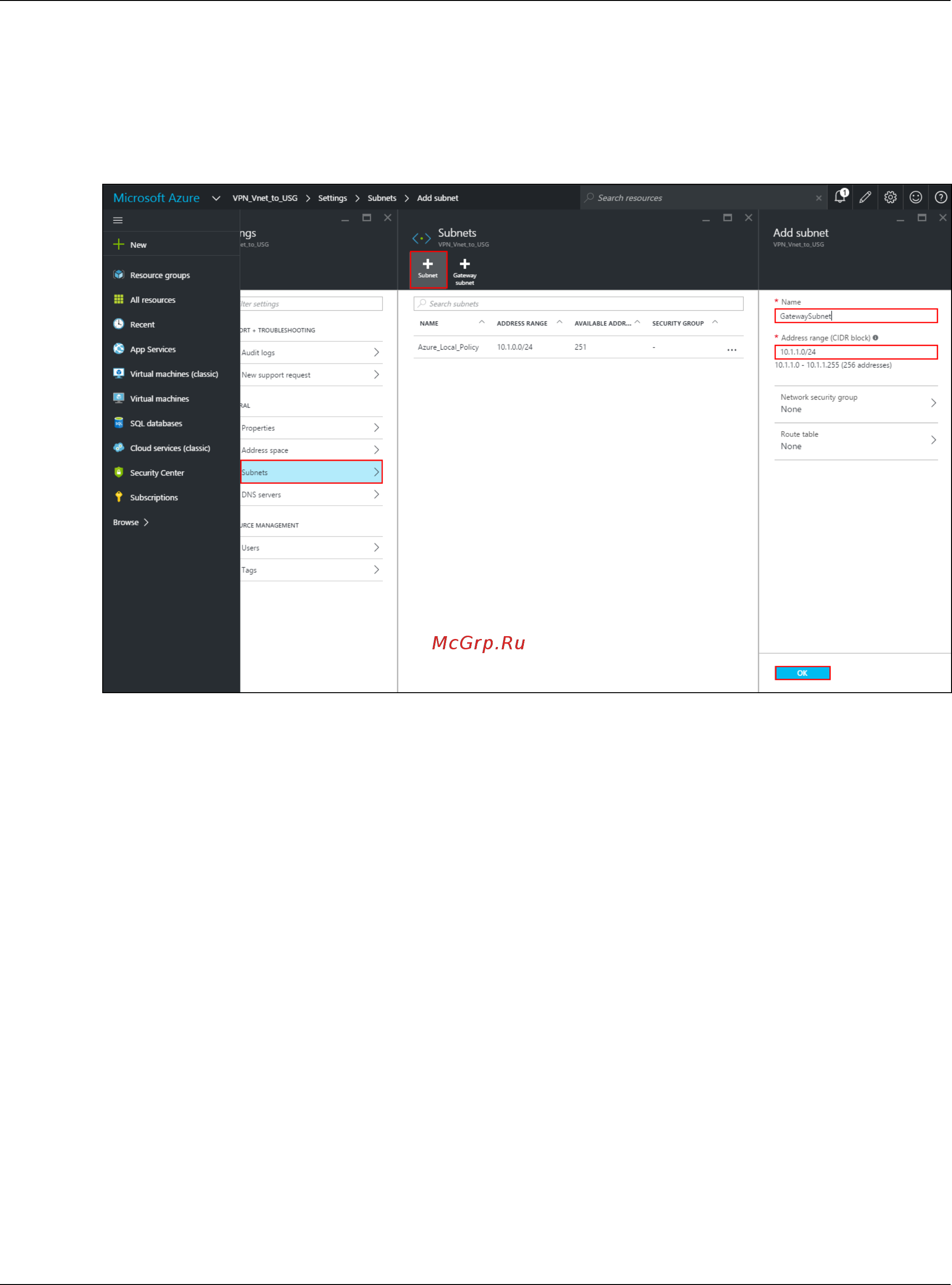

Figure 357 VPN_Vnet_to_USG > Settings > Subnet > Add subnet
5 In the portal, go to New, then Networking. Select Virtual network gateway from the list. On
the Create virtual network gateway blade Name field, name your gateway. Next, choose the
Virtual network that you want to deploy this gateway to.
Click the arrow (>) to open the Choose public IP address blade. Then click Create New to open
the Create public IP address blade. Input a Name for your public IP address. Note that this is
not asking for an IP address. The IP address will be assigned dynamically. Rather, this is the name
of the IP address object that the address will be assigned to. Click OK to save your changes.
