Chapter 4 Create Site-to-Site VPN Tunnels

ZyWALL/USG Series Handbook

175

Click Create to create the local network gateway.

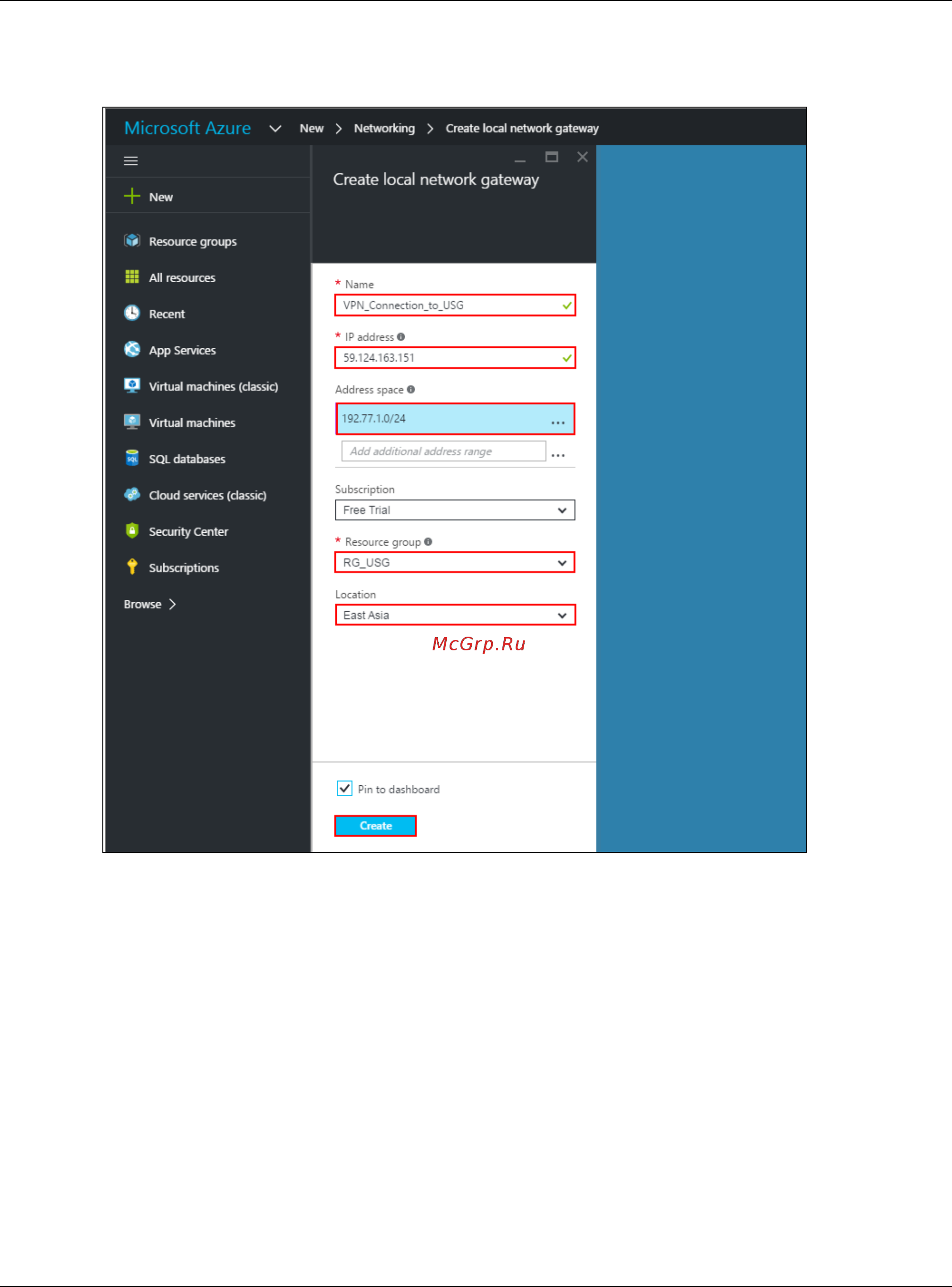

Figure 359 New > Networking > Local network gateway

7 Locate your virtual network gateway (VPN_Connection_to_USG in this example) and click Settings

> Connection > Add connection, Name your connection. For Connection type, select Site-to-

site (IPSec). For Virtual network gateway, the value is fixed because you are connecting from

this gateway (VPN_GW_to_USG in this example).

For Local network gateway, select the local network gateway that you want to use

(VPN_Connection_to_USG in this example).
