Chapter 4 Create Site-to-Site VPN Tunnels

ZyWALL/USG Series Handbook

176

For Shared Key (PSK), the value here must match the value that you are using for your ZyWALL/

USG device. For Resource Group, select the resource group that you created before. Click OK to

create your connection.

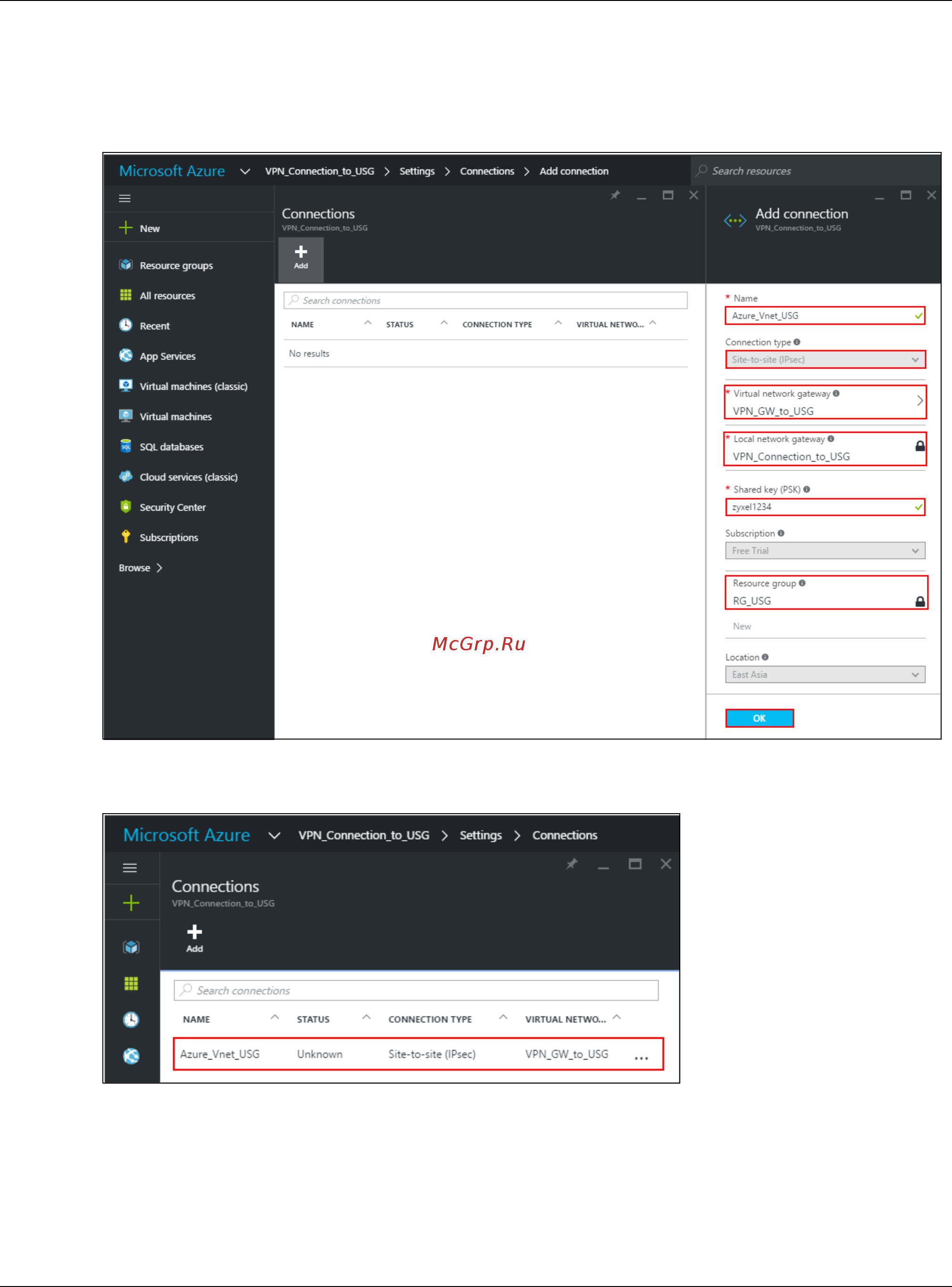

Figure 360 VPN_Connection_to_USG > Settings > Connections > Add connection

8 When the connection is complete, you'll see it appear in the Connections blade for your Gateway.

Figure 361 VPN_Connection_to_USG > Settings > Connections
