Landmann 12754 [22/32] Shut off gas cylinder

GRILLCHEF

Before connecting the regulator to the cylinder valve,

Take care that the rubber Hose (3) is correctly assembled

on the regulator hose nozzle.

Insert the hose possibly by using soap solution.

Fix the hose by using the proper hose clip (4), and

advoiding to tighten too much to not damage the

rubber Hose (in some countries the hose clips and

the rubber hoses have standard dimensions).

Verify the gas tight of the ttings

by using the soap solution.

2. Position the gas cylinder next to the barbecue.

– Never lay the gas cylinder on its side or place it on the base shelf.

– The gas hose must not be bent or under tension.

3. Check that the gas cylinder and the pressure reducer (1) are in good working order.

4. Turn the control button (5) to the 3 o‘clock setting and t the pressure reducer (1) onto the gas cylinder valve.

5. Turn the control button (5) to the 3 o'clock setting. Check to ensure that the pressure reducer (1) is securely on the gas

cylinder.

6. Check the connection between the pressure reducer (1) and the gas hose (3) and the gas hose (3) to the setting device

to ensure they are secure.

7. Open the cylinder vale by pulling the red safety catch on the control button (5) forwards a little and by turning the

control button to the 12 o'clock setting. Use a standard leak detector to ensure that all connections are tight.

Please observe the instructions for the leak detection agent!

– Never check for leaks using a naked ame. Listening for leaks is not a reliable method of detection either.

– If the connection is not sealed immediately close the bottle valve (turn control button (5) to 3 o'clock setting) and

tighten the connection or replace the leaking part. Repeat the leak test.

8. If you do not wish to use the barbecue immediately, close the cylinder valve: turn control button (5) to the 3 o'clock

setting.

Shut o Gas Cylinder

– all taps of the consuming appliance is correctly

tted.

– the connecting pipe to the consuming appli-

ance is correctly tted.

– the „Compact Quick-on“ regulator handles is in

the „o“ position .

With no ame on, remove the seal CAP from the auto-

matic valve, place the „Compact Quick-on“ onto the valve

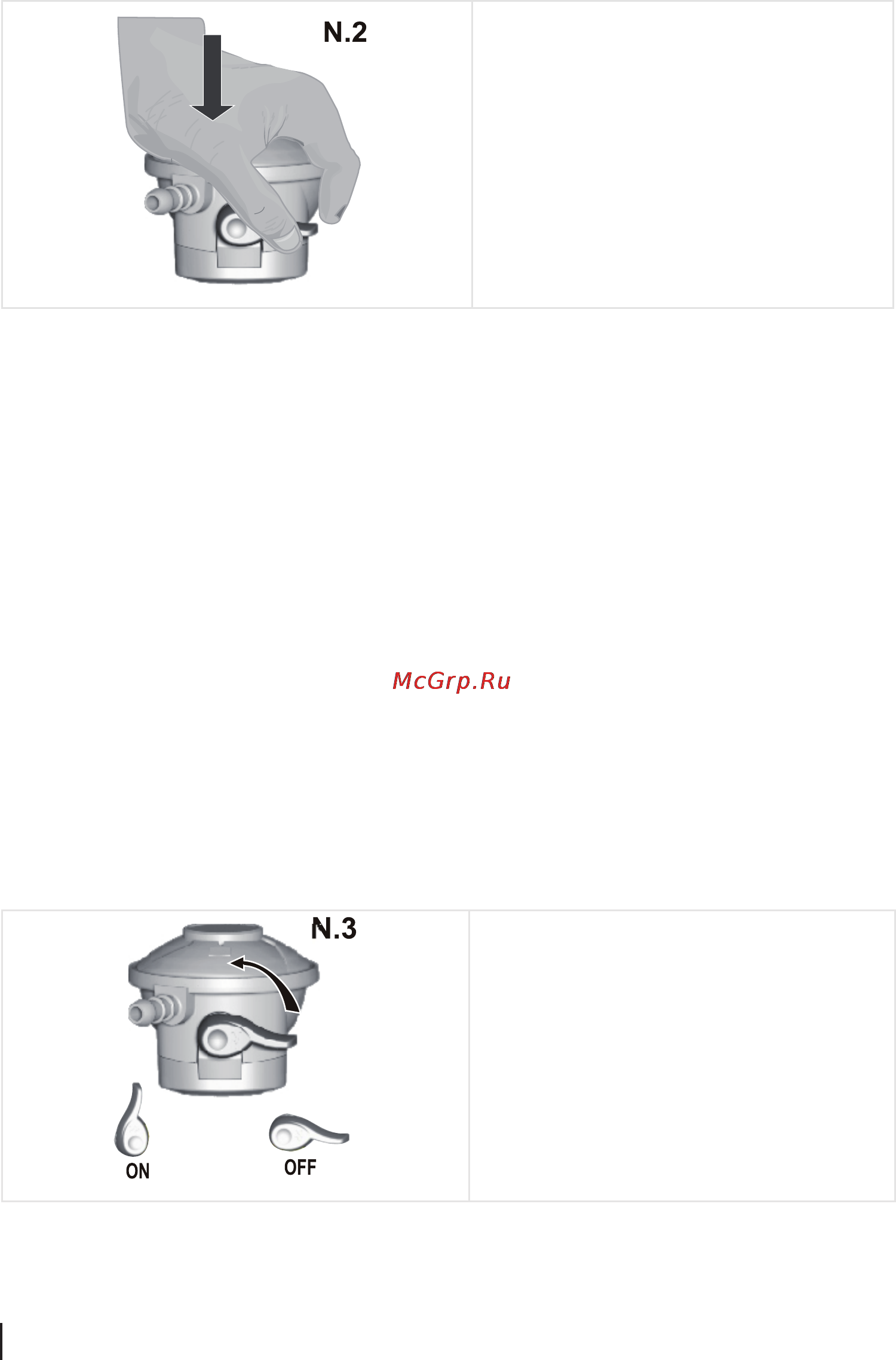

and push down rmly and vertically. You should hear a

„click“ Sound which means the regulator is securely lat-

ched (g. No. 2).

1. Close the cylinder valve: turn control button (5) to a 3 o‘clock position).

2. Pull the red safety leverl on the control button (5) forwards a little, turn the control button t(5) to a 3 o‘clock setting and

pull the pressure reducer (1) from the gas cylinder valve.
