Robomow City 100 [10/44] Planning the setup
![Robomow City 100 [10/44] Planning the setup](/views2/1172852/page10/bga.png)

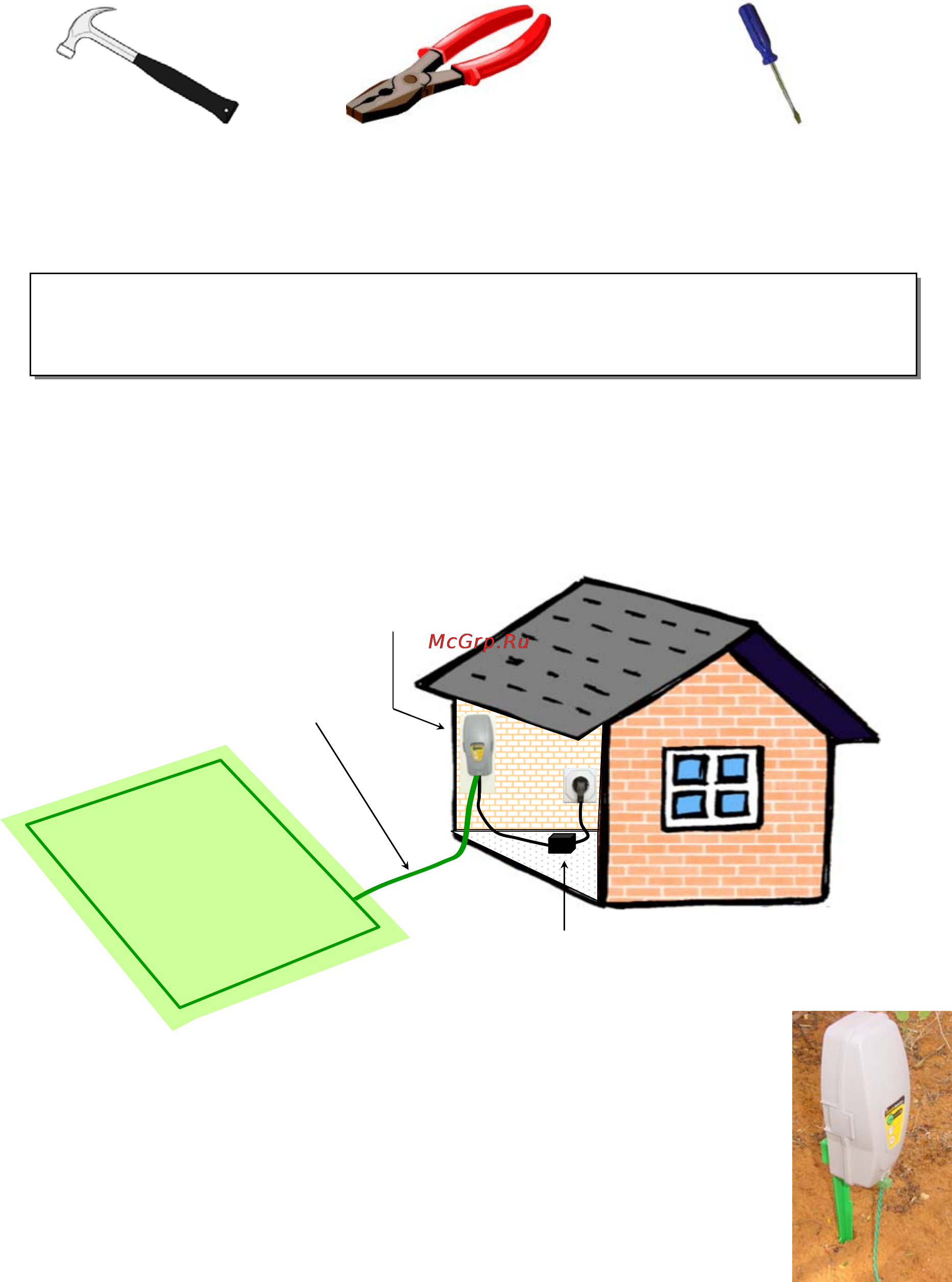

10
Wires leading from the perimeter
to the Perimeter Switch are
adjacent and touching.
Indoor Power
Supply
Zone A
The Perimeter Switch MUST be
mounted vertically in order
to maintain its’ water resistance
Wires leading from the perimeter
to the Perimeter Switch are
adjacent and touching.
Indoor Power
Supply
Zone A
The Perimeter Switch MUST be
mounted vertically in order
to maintain its’ water resistance
Chapter 1 - Perimeter Wire Setup
1.1 Preparations
Read carefully the Operating and Safety Manual prior to setup.
It is recommended to mow your lawn using a conventional lawn mower and water the ground
before starting the setup for easier driving of the pegs.
Confirm all parts for the setup are included (refer to ‘What’s in the Box’ page 9).
During the setup you will also need the following tools:
1.2 Planning the Setup
1.2.1 Perimeter Switch Location
Find a convenient spot outside the perimeter, but a location that is relatively easy for
you to access.
The Perimeter Switch must be mounted vertically in order to maintain its’ water
resistance and preferably in a dry and sheltered location.
Close to a wall socket (230V/120V) – as it is connected to an indoor Power Supply.
1.2.2 Placing the Perimeter Switch
The Perimeter Switch connector is designed for quick and easy
disconnection that allows you to easily move the perimeter switch between
plots.
The Perimeter Switch also comes with a large stake that fastens to its
back, making transfer from one plot to another easier by allowing you to
disconnect the switch and move it with the stake still attached (Figure 1.3).
Hammer
Combination
Pliers
Small flat and
Philips screwdrivers
Fi
g
ure 1.1
–
Tools required for the setup
IMORTANT INFORMATION! Before starting the setup, it is necessary to first
read this chapter in order to be aware of all setup rules and instructions so you are able
to determine the best location for the Perimeter Switch and the perimeter wire layout.
Figure 1.2
Perimeter Switch
Location
Figure 1.3 - Perimeter Switch
with stake attached
