17

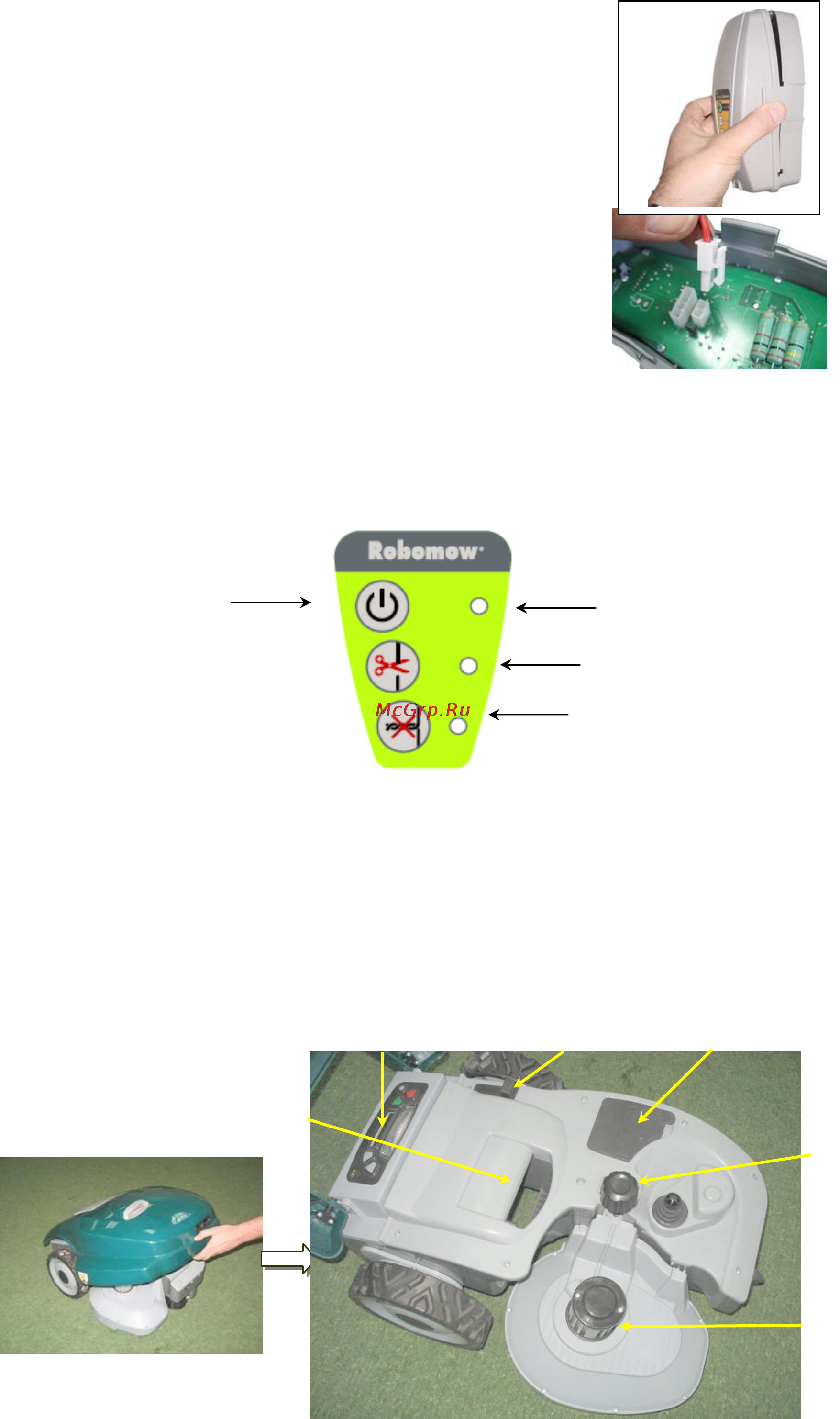

Figure 1.19
Perimeter Switch
Operating Panel
Flashing light
indicates the s
y
stem
Indicates poor splicing of
perimeter wires or perimeter
wire
,
which is too lon
g
Indicates a
disconnected/broken
O
N
bu
tt
o
n
Take the Perimeter Switch and squeeze the tabs on
both sides of the Perimeter Switch, (as shown in figure
1.18a) and remove the back cover from the Perimeter
Switch.
Connect the power supply plug to the Perimeter Switch
board (see figure 1.18b) and reassemble the Perimeter
Switch.
Connect the power supply to a regular household
receptacle 230/120 Volts AC;
The Power Supply is for indoor use only, thus place it in
a dry location, which is well ventilated (do not cover it
with plastic bag); be sure the power supply and the
connection to the low voltage cable are in a dry place
and not exposed to water and rain.
Press the ‘ON’ button. A small flashing green light next to the ‘ON’ button indicates that the
system is on and functioning properly. The Perimeter Switch also has indicators for a
disconnected/broken perimeter wire and for
poor wire splicing. Figure 1.19.
The Perimeter Switch has an automatic shutoff feature, eliminating the need for you to turn it
off after each use. It will shut itself off after 12 hours of operation. You may manually turn the
perimeter switch off by pressing the ‘ON’ button continuously for 3 seconds. A beep will be
heard after the three seconds, indicating you may release the button and the switch is off.
1.4 Robomow Preparation and Settings
1.4.1 Setting the Cutting Height
Lift the Bumper Cover from the front side of the Robomow (figure 1.20).
To change the cutting height, rotate the cutting height adjustment knob (see figure 1.21).
Figure 1.18b Connect the power supply plug
to the Perimeter Switch board
Figure 1.20 -
Lifting the Bumper Cover
Figure 1.21 -
RM200 General View
Cutting height
adjustment
knob
Mowing
motor
Carrying
handle
Power Supply
connection
Fuse locationControl Panel
Figure
1.18a
