18
STOP
GO
STOP
GO
Operating Lamp
UP
arrow
DOWN
arrow
Rain
sensor
LCD display
window
GO / START
button
Main Switch
button
STOP button
Language
Press GO
00:00 dd/mm/yy
next digit
Time and Date
Press GO
English (US)
Confirm
Press ‘GO’
Scroll ‘UP’ or ‘DOWN’
to choose your language
and press GO to confirm
Press ‘GO’
Scroll to set the time and date
and press ‘GO’ for the next digit
(‘STOP’ is used to go back)
15:23 16/04/07
Confirm
Please note that there are
‘English’and ‘English (US)’ under
the ‘Language’ menu, as the language
defines also the ‘Time and date’ format.
Press ‘GO’ to confirm and continue
with the instructions at the next
subparagraph (‘Wire position’ test)
Language
Press GO
Language
Press GO
00:00 dd/mm/yy
next digit
00:00 dd/mm/yy
next digit
Time and Date
Press GO
Time and Date
Press GO
English (US)
Confirm
English (US)
Confirm
English (US)
Confirm
Press ‘GO’
Scroll ‘UP’ or ‘DOWN’
to choose your language
and press GO to confirm
Press ‘GO’
Scroll to set the time and date
and press ‘GO’ for the next digit
(‘STOP’ is used to go back)
15:23 16/04/07
Confirm
Please note that there are
‘English’and ‘English (US)’ under
the ‘Language’ menu, as the language
defines also the ‘Time and date’ format.
Press ‘GO’ to confirm and continue
with the instructions at the next
subparagraph (‘Wire position’ test)
Your Robomow is shipped with the batteries fuse
removed and it will not operate without it. The fuse is supplied
in a small plastic bag attached to the Robomow (located under
the Bumper Cover).
Lift the Bumper Cover and insert the fuse. The fuse can be
inserted in either direction. See figure 1.22
Robomow will now power up (wake up). The Batteries are
charged at the factory and have plenty of power to perform the
initial setup and test run. However, after the initial set-up
process is completed the batteries need to be charged 16 hours
in the Base Station before the first operation.
1.4.2 Robomow Settings
Control Panel
On the top of the rear side of Robomow there is a control panel. The control panel consists
of a display, keypad and operating lamp (figure 1.23).
The ‘GO’ button is used as a means to select or confirm different menu options or settings;
‘Up / Down ’ arrow keys will allow you to scroll through the menu items;
The ‘STOP’ button has two different functions: when pressing during automatic operation it
will stop Robomow and blade operation immediately and when pressing at any time during
the menu selection process it will bring you one step back in the menu.
‘Main Switch’ button is used to switch off the Robomow. It is required to switch off the
Robomow when carrying it between zones.
IMPORTANT INFORMATION!
Follow the instructions on the LCD display -
Robomow will friendly instruct you, step by step, how to complete the setup
Language, Time and Date settings
‘Language’ is the first setting you are asked to set, as Robomow wakes up. Follow
the instructions below, as shown in figure 1.24.

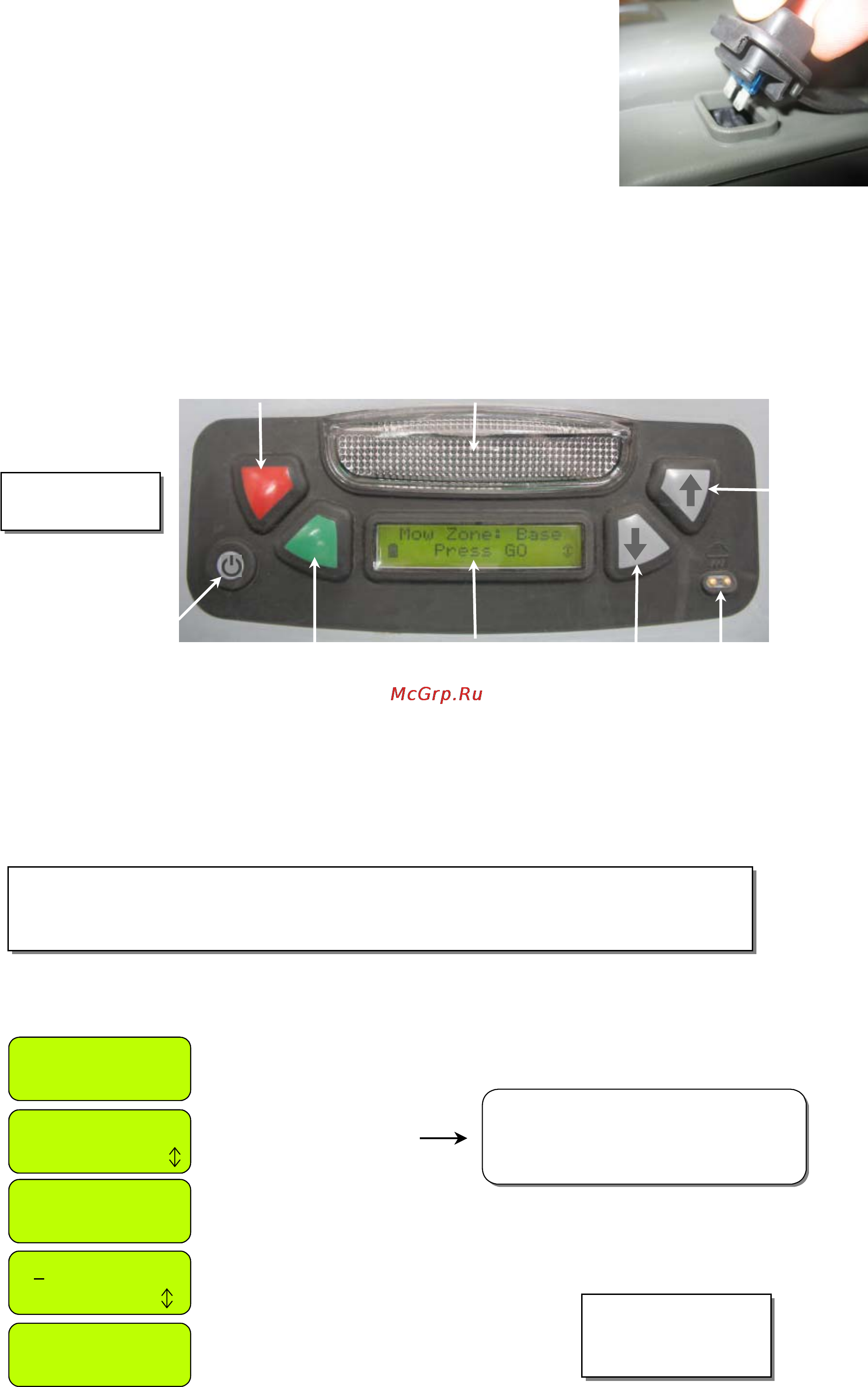

Figure 1.22 -
