Installation instructions
23
The dishwasher can also be connected to a hot water supply
not exceeding 60°C
. Supplying the
appliance with hot water cuts down the washing time by approximately 20 minutes, but slightly
reduces its effectiveness. Make the connection to the domestic hot water supply using the same
procedure described for connecting to the cold water supply.
DRAIN CONNECTION

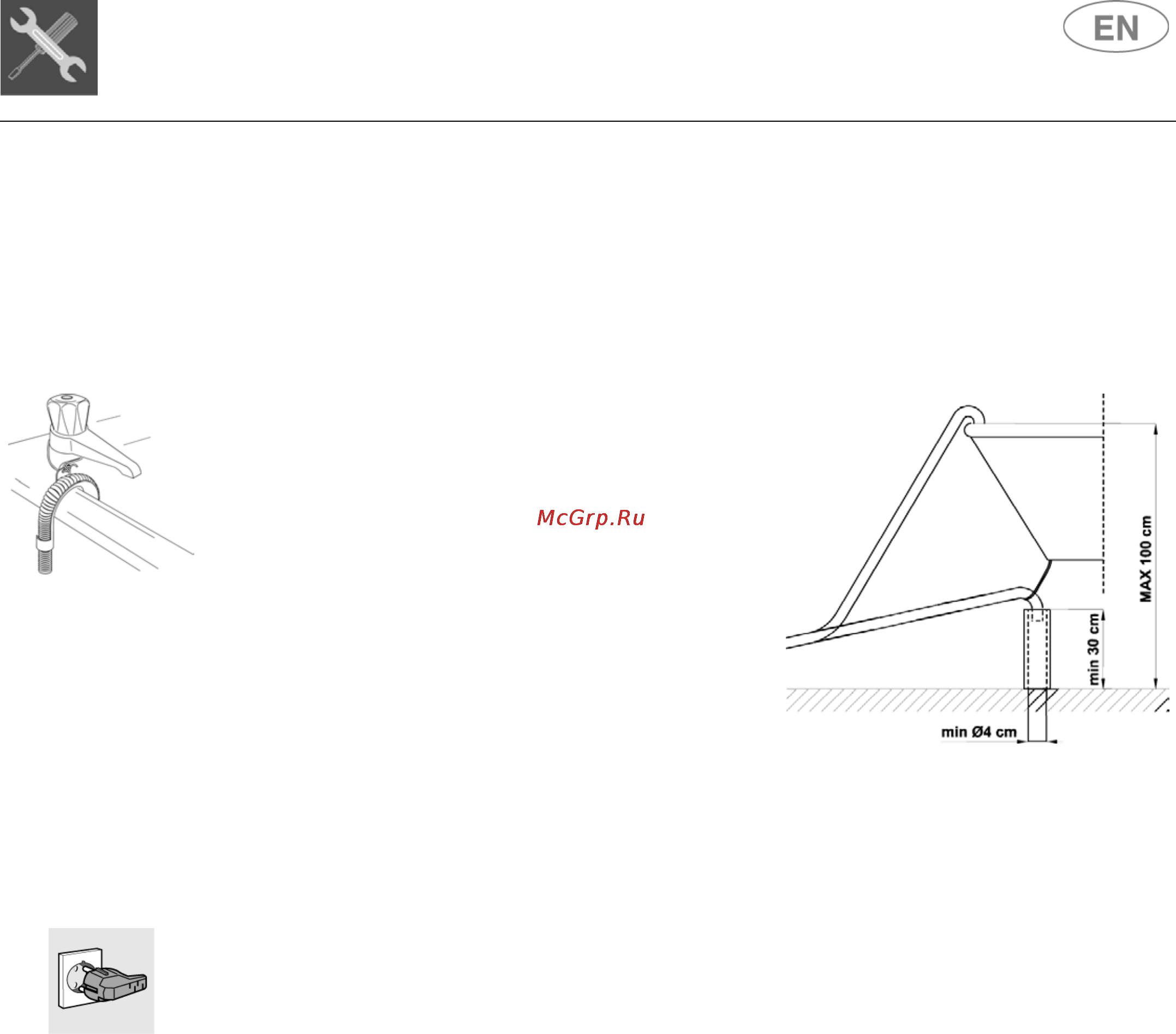

Insert the dishwasher’s drain hose into a drain pipe
having a diameter of at least
4 cm
, or alternatively,
place it inside the kitchen sink using the plastic support
provided, taking care not to crush or excessively bend
the hose. It is important to prevent the hose from
coming loose and falling. For this purpose, the plastic
support is equipped with a hole for tying it to the wall or
water tap.
The free end should be positioned at a height of
between
30 and 100 cm
, and should never be
submerged in water.
If a horizontal drain extension hose is used (for a
maximum of 3 m) the drain hose can be placed at a
maximum height of
85 cm
from the ground.
2.2 Electrical connection
Plug the power cord into a suitable electrical outlet, according to the instructions given in chapter
"1. Safety and operating instructions".
