3. Terminal Setup

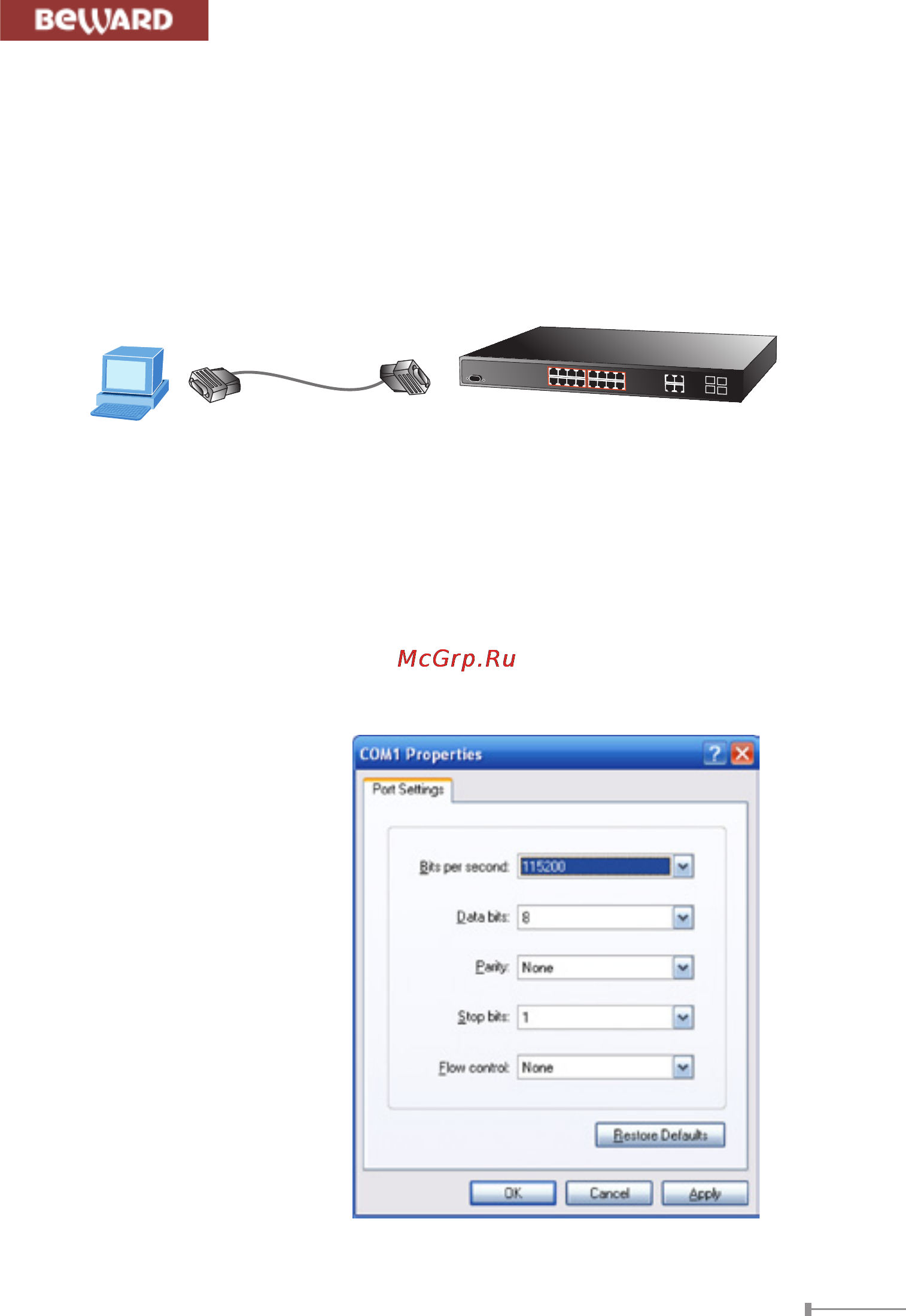

To congure the system, connect a serial cable to a COM port on a PC or

notebook computer and to serial (console) port of the Managed Switch. The

console port of the Managed Switch is DCE already. So, you can connect the

consoleportdirectlytothePCwithouttheneedofNullModem.

PC / Workstation

with

Terminal emulation software

Serial Port

RS-232

Serial Port

115200,8,n,1

A terminal program is required to make the software connection to the Managed

Switch. Windows’ Hyper Terminal program may be a good choice or please

downloadtheotherhyperterminallikesoftware,suchasputty.TheHyperTerminal

canbeaccessedfromtheStart menu.

1. Click START, then Programs, AccessoriesandthenHyper Terminal.

2.When the following screen appears, make sure that the COM port should be

conguredas:

zBaud :115200

zDatabits :8

zParity :None

zStopbits :1

zFlowControl :None
