5-3
Chapter 5: Chassis Setup and Maintenance
5-4 Removing and Installing the Air Shroud

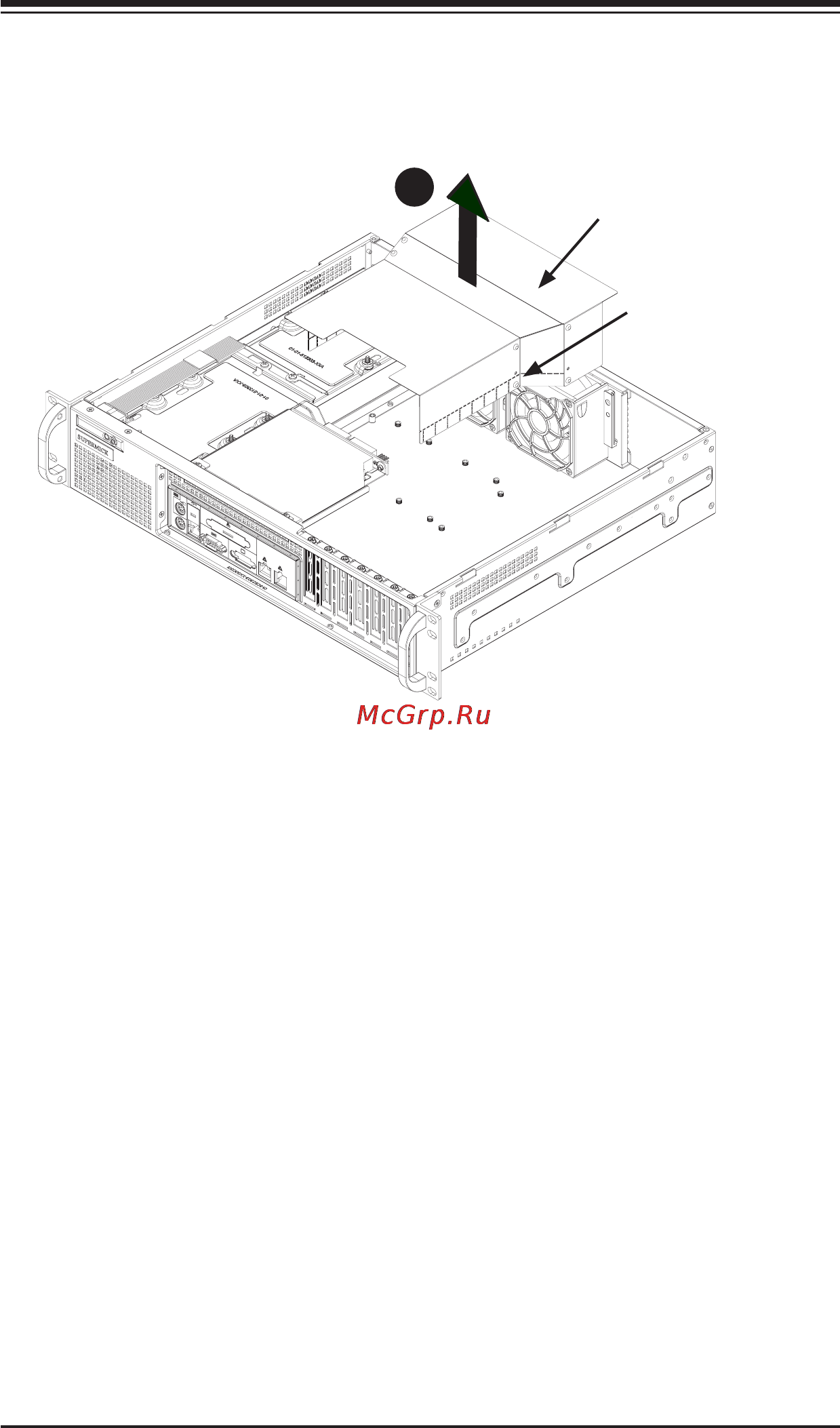

Figure 5-2: Removing the Air Shroud
Air shrouds concentrate airow to maximize fan efciency. The SC523 chassis air
shroud does not require screws to set it up. The air shroud must be removed before
a motherboard may be installed.
Removing the Air Shroud
Unplug the chassis from any power source.1.
Carefully lift the air shroud straight up and out of the chassis.2.
Installing the Air Shroud
Each air shroud includes perforated tabs that can be removed to accommo-1.
date motherboard components. To ensure maximum cooling, remove only the
tabs that are necessary to ensure a proper t of the air shroud.
Place air shroud in the chassis. The air shroud covers the fans at the rear of 2.
the chassis.
Air Shroud
Perforated
Tabs
2
