SUPERSERVER 6027R-N3RF/WRF User's Manual

Outer Rack Rails

Outer rails attach to the rack and hold the chassis in place. The outer rails for the

SC825 chassis extend between 30 inches and 33 inches.

Installing the Outer Rails to the Rack (Figure 2-3)

1. Secure the back end of the outer rail to the rack, using the screws provided.

2. Press the button where the two outer rails are joined to retract the smaller

outer rail.

3. Hang the hooks of the rails onto the rack holes and if desired, use screws to

secure the front of the outer rail onto the rack.

4. Repeat steps 1-3 for the remaining outer rail.

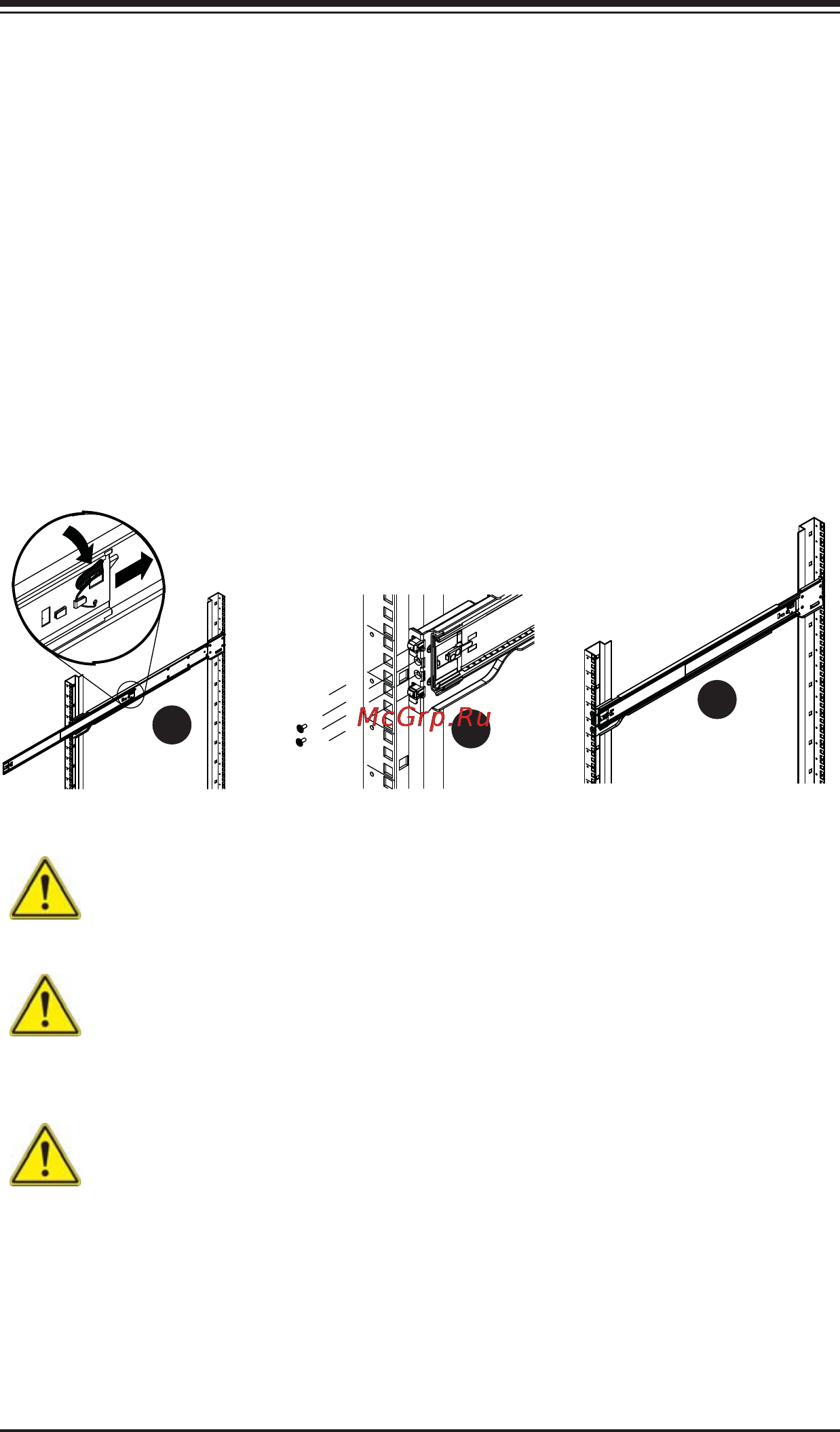

Figure 2-3. Assembling the Outer Rails

Installing the Chassis into a Rack (Figure 2-4)

Warning: Do not pick up the server with the front handles. They are designed

to pull the system from a rack only.

Stability Hazard: The rack stabilizing mechanism must be in place, or the

rack must be bolted to the ﬂ oor before you slide the unit out for servicing. Failure to

stabilize the rack can cause the rack to tip over.

Warning: Slide rail mounted equipment is not to be used as a shelf or a work

space.

1. Extend the outer rails as illustrated above.

2. Align the inner rails of the chassis with the outer rails on the rack.

3. Slide the inner rails into the outer rails, keeping the pressure even on both

sides. When the chassis has been pushed completely into the rack, it should

click into the locked position.
