5-15
Chapter 5: Chassis Setup and Maintenance
5-10 Removing and Instaling the Power Supply
The SC523 chassis has a 410 or 520 Watt power supply. This power supply is
auto-switching capable. This enables it to automatically sense and operate at a
100v to 240v input voltage. An amber light will be illuminated on the power supply
when the power is off. An illuminated green light indicates that the power supply
is operating.
Power Supply Replacement
The SC523 chassis models includes one power supply. Replacement units can be
ordered directly from Supermicro (see contact information in the Preface).
Removing the Power Supply
Disconnect the chassis from the power source. 1.
Disconnect the power connectors from the motherboard.2.
Remove the screws from the power supply panel on the back of the chassis 3.
as illustrated.

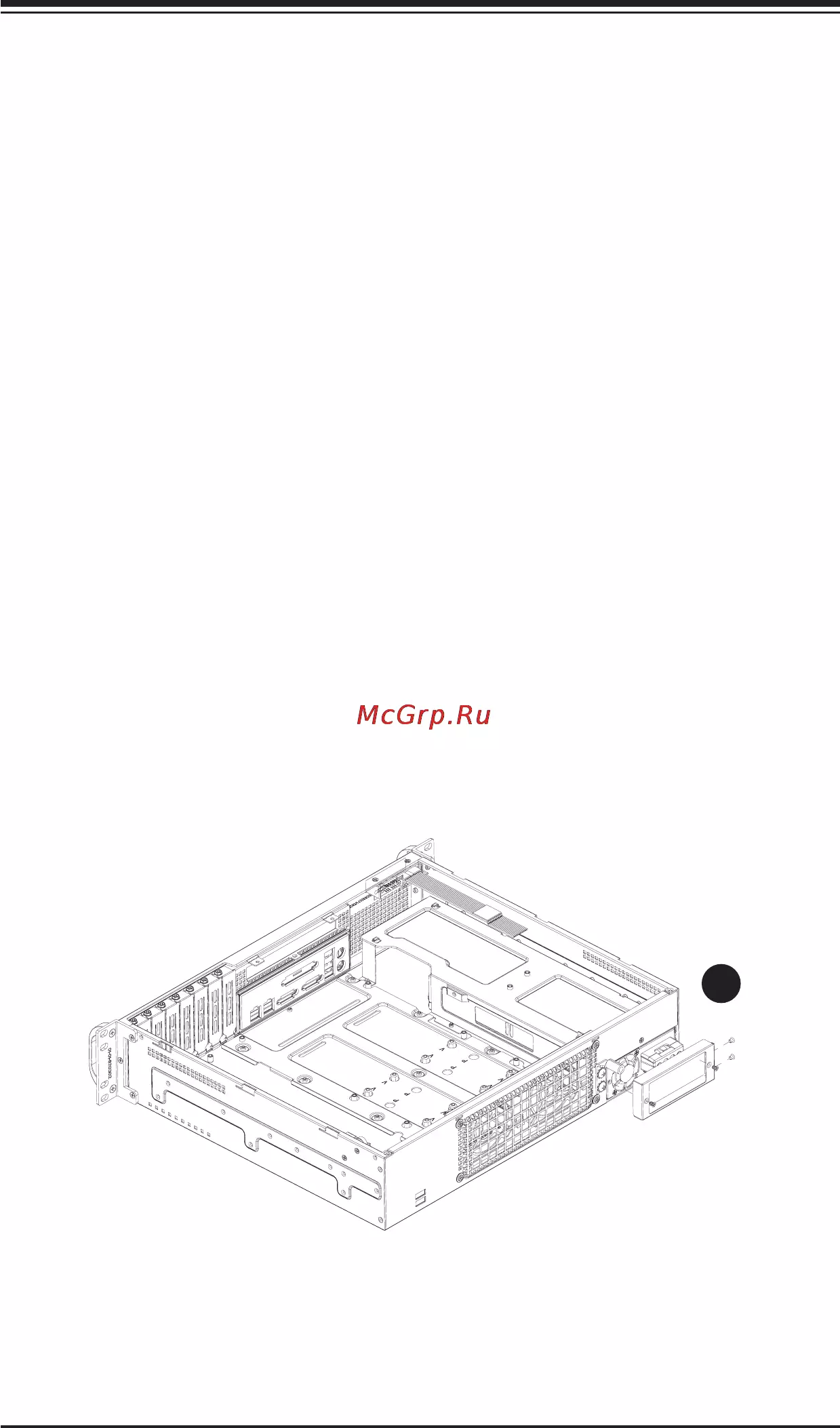

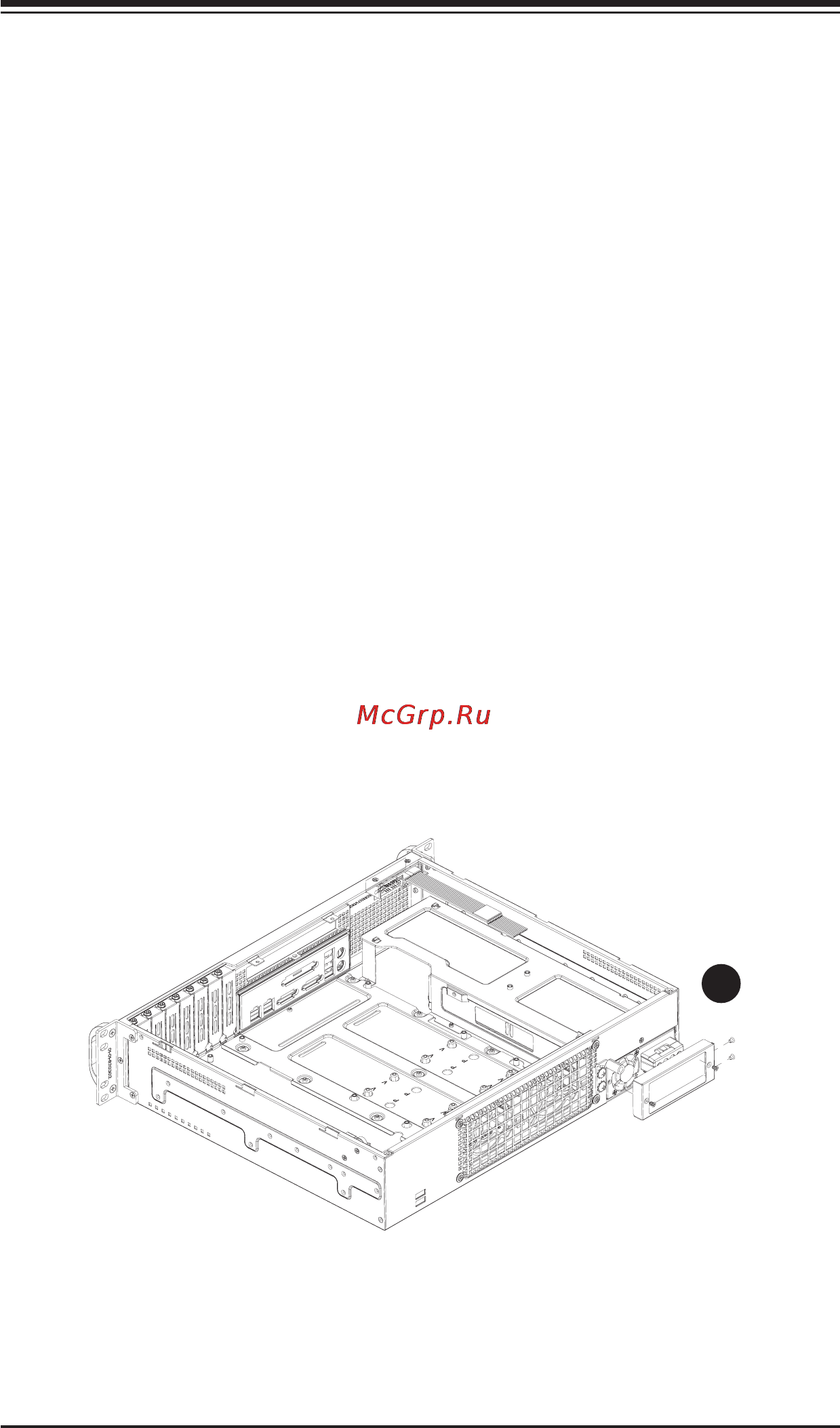

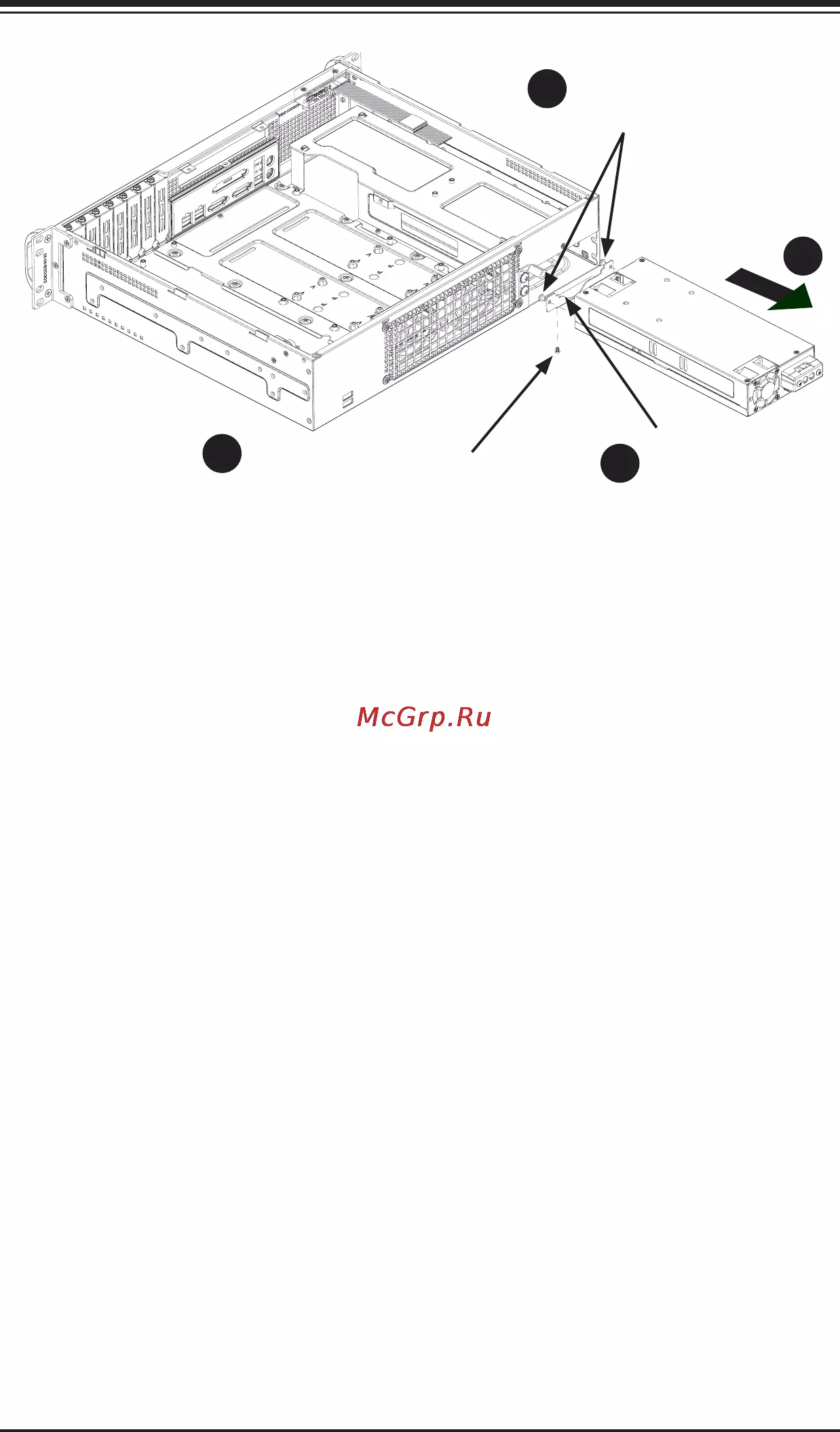

Figure 5-13: Removing the Power Supply Panel
3
