E-20
SC826 Chassis Manual
Description: Internal cascading cable. Connects the backplane to the host bus
adapter or external port. Used in dual-port environments.
Cable Name: SAS Dual-port Cable Assembly, 68/76 cm
Part #: CBL-0168L (SFF-8087 to SFF-8088 x2
Ports: Dual
Placement: Internal cable
Description: External cascading cable. Connects ports between servers. Use one
cable for single port connections and two cables for dual port connections.
Cable Name: BPN-SAS EL2/EL1 Cascading Cable (External), 68 cm
Part #: CBL-0166L (SFF-8088 x1 to SFF-8088 x1)
Ports: Single or dual
Placement: External cable

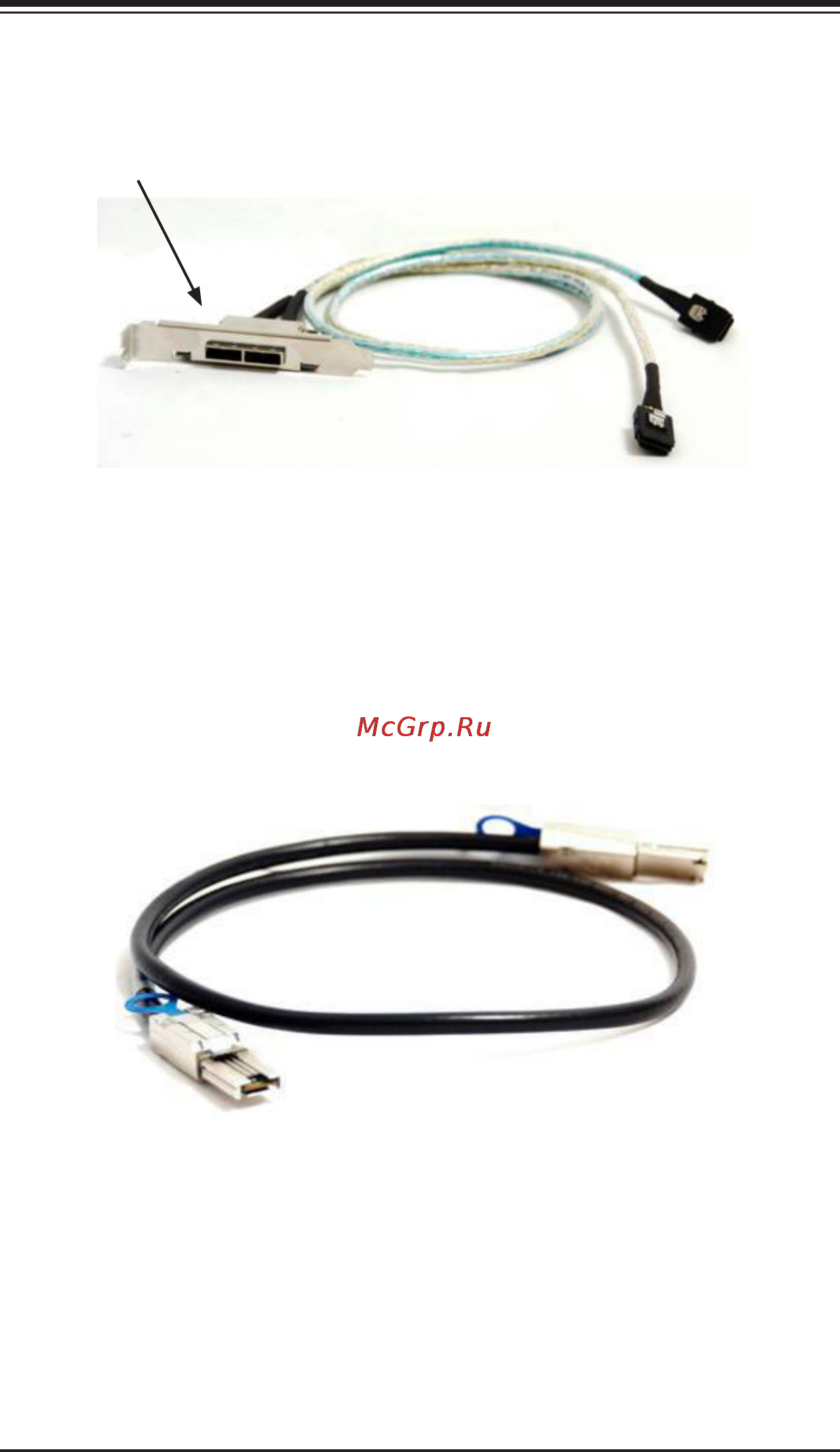

Dual HBA Conguration Cables
Dual Port Cable
Assembly
Figure E-16. The CBL-0168L Cable
Figure E-17. The CBL-0166L Cable
