TD-W8901N
150Mbps Wireless N ADSL2+ Modem Router User Guide
2. If the Internet LED is off, please check your ADSL LED first. If your ADSL LED is also off,
please refer to Note 1. If your ADSL LED is GREEN ON, please check your Internet
configuration. You may need to check this part of information with your ISP and make sure
everything have been input correctly. Refer to 4.1.1 Device Info and 4.3.1 Internet
for more
information.

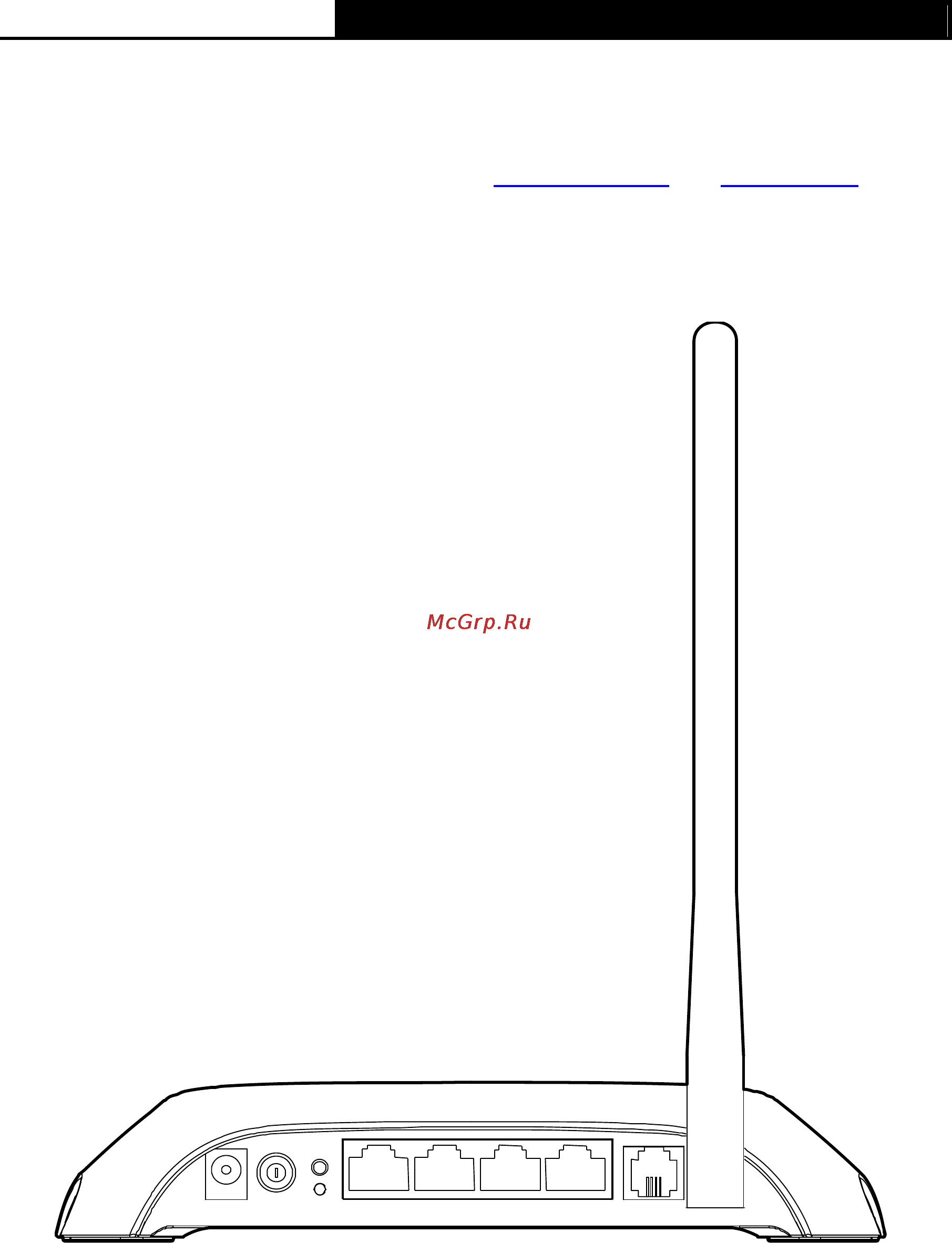

2.2 The Back Panel
POWER ON/OFF
WPS/
RESET
WiFi
LAN4
LAN3
LAN2
LAN1
ADSL
Figure 2-2
POWER: The Power plug is where you will connect the power adapter.
ON/OFF: The switch for the power.
WiFi: Press this button to enable or disable Wireless LAN interface.
WPS/RESET: The switch for the WPS function. If your client devices, such as wireless
adapters, support Wi-Fi Protected Setup, then you can press this button for about two
5
