TD-W8901N
150Mbps Wireless N ADSL2+ Modem Router User Guide

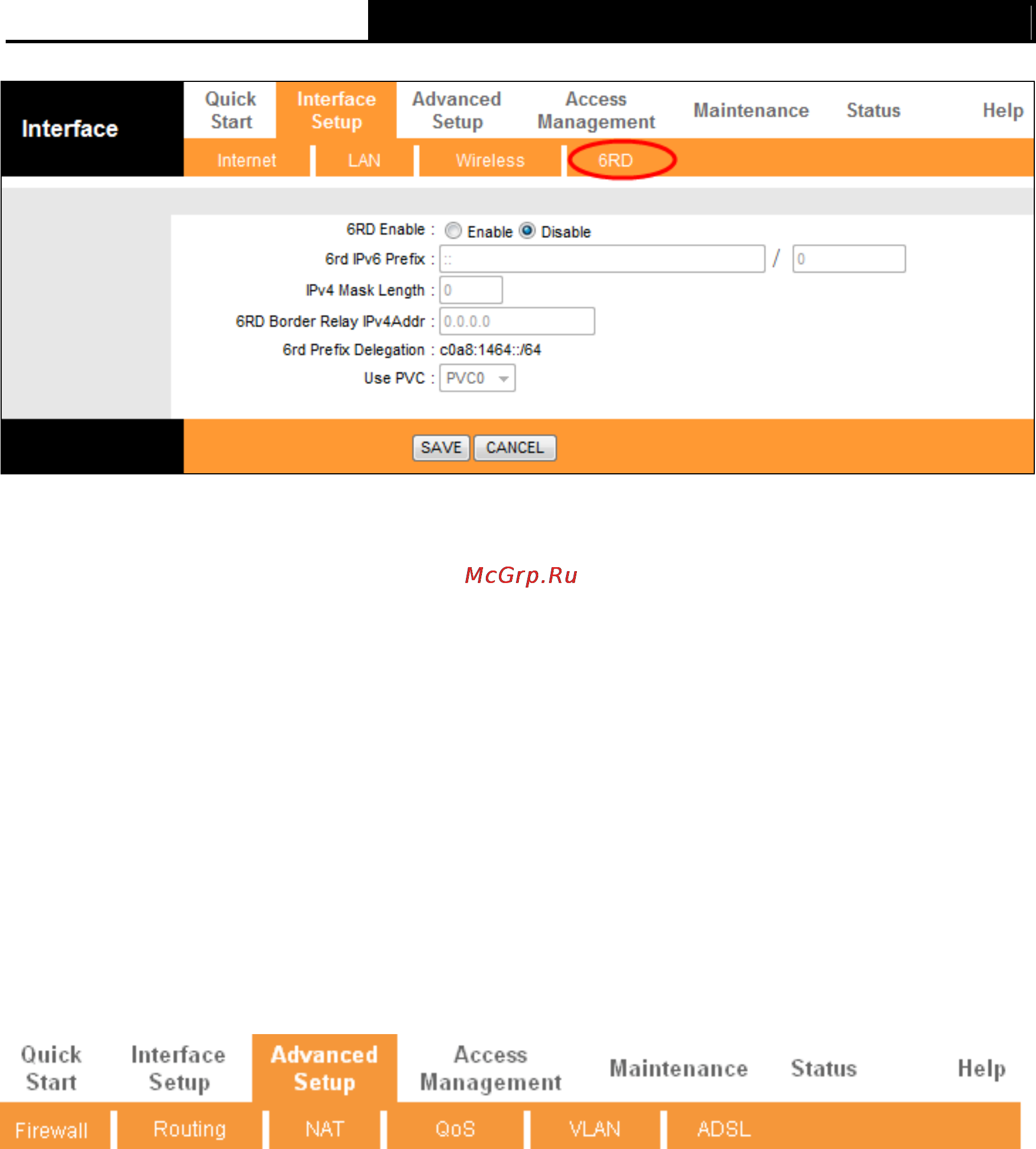

Figure 4-28
6rd IPv6 Prefix: The prefix of the 6RD tunnel.
IPv4 Mask Length: The length of the IPv4 mask.
6RD Border Relay IPv4 Address: The IPv4 address of the border relay router of 6RD tunnel.
Use PVC: Select the PVC from the the drop-down list.
Note:
To enable the function, there should not have any IPv6 WAN connections.
4.4 Advanced Setup
Choose “Advanced Setup”, you can see the next submenus:
Figure 4-29
Click any of them, and you will be able to configure the corresponding function.
4.4.1 Firewall
Choose “Advanced Setup→Firewall” menu, and you will see the next screen (shown in Figure
4-30).
45
