TD-W8901N

150Mbps Wireless N ADSL2+ Modem Router User Guide

Click the BACK button to return to the previous screen.

Click the CANCEL button to cancel the configuration which is made just now.

4.4.3.3 IP Address Mapping

Select Multiple for numbers of IPs in Figure 4-33, and choose “Advanced Setup→NAT→IP

Address Mapping(for Multiple IP Service)”. You can configure the Address Mapping Rule in the

next screen. The IP Address Mapping is for those VCs that configured with multiple IPs. The IP

Address Mapping rule is per-VC based (only for Multiple IPs' VCs).

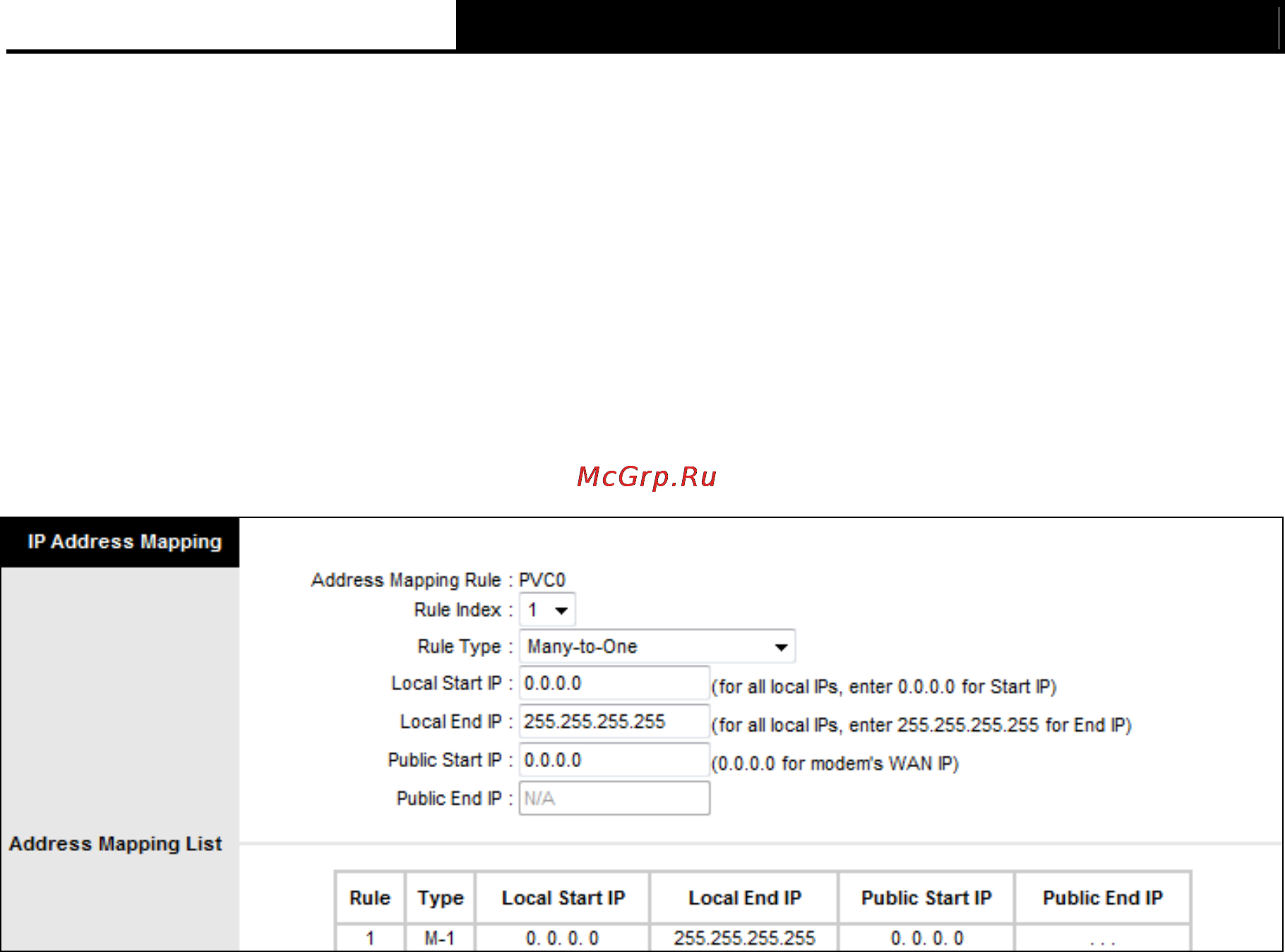

Figure 4-36

 Rule Index: Select the Virtual server rule index for this VC. You can specify 8 rules in

maximum.

 Rule Type: There are four types: one-to-one, Many-to-One, Many-to-Many Overload and

Many-to-Many No-overload.

 Local Start & End IP: Enter the local IP Address you plan to map to. Local Start IP is the

starting local IP address and Local End IP is the ending local IP address. If the rule is for all

local IPs, then the Start IP is 0.0.0.0 and the End IP is 255.255.255.255.

 Public Start & End IP: Enter the public IP Address you want to do NAT. Public Start IP is the

starting public IP address and Public End IP is the ending public IP address. If you have a

dynamic IP, enter 0.0.0.0 as the Public Start IP.

 Address Mapping List: This displays the information about the Mapping addresses.

To add a mapping rule:

Step 1: Select the “Virtual Circuit” and Multiple for the “Number of IPs”. Then select the tab IP

Address Mapping (shown in Figure 4-33).



Note:

IP Address Mapping is only available for VCs with Multiple IPs.

Step 2: Select the Rule index for the rule as shown in Figure 4-36.
