Tp-Link td-8901n [55/91] Routing

TD-W8901N

150Mbps Wireless N ADSL2+ Modem Router User Guide

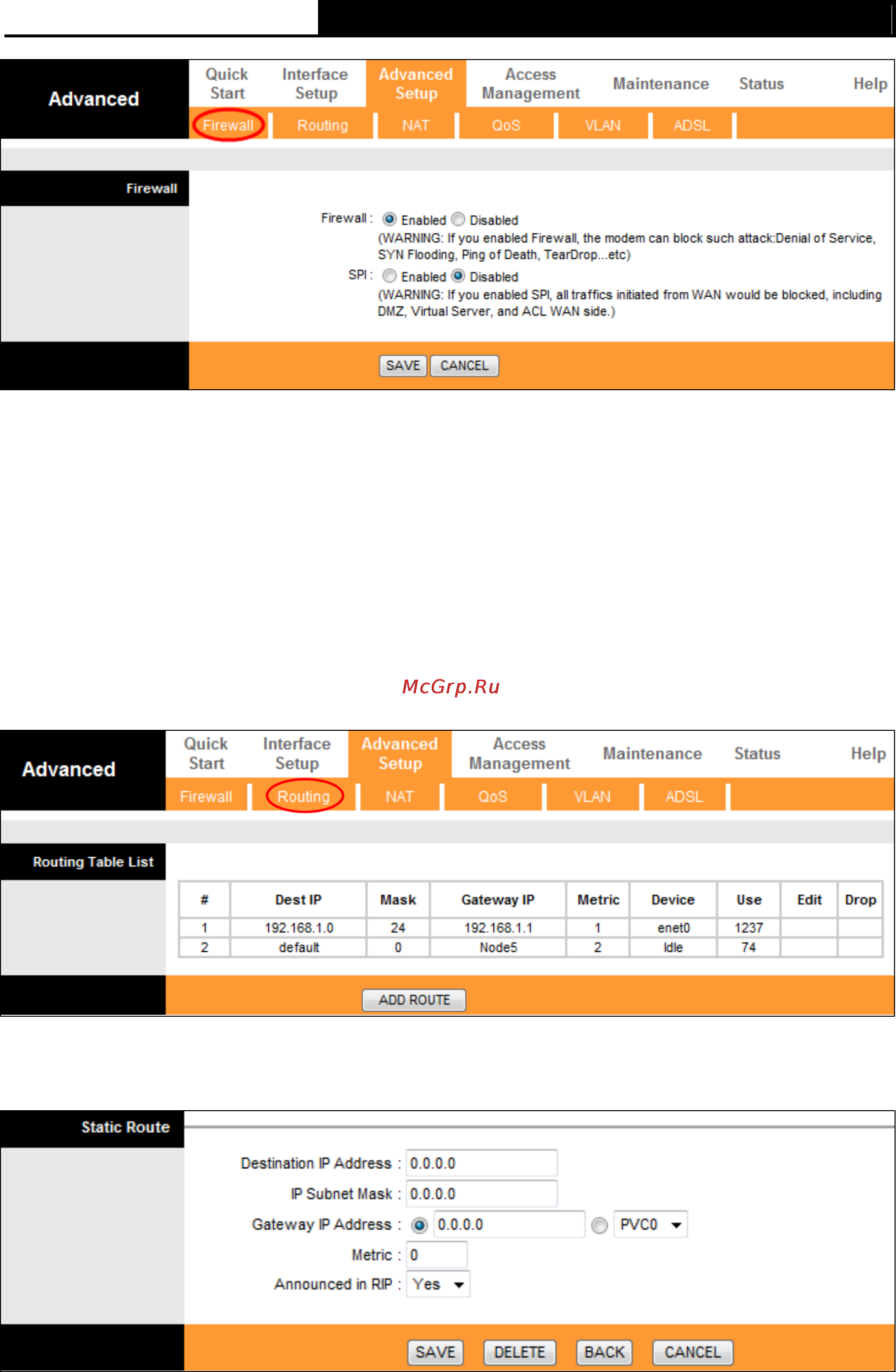

Figure 4-30

 Firewall: Select this option can automatically detect and block Denial of Service (DoS)

attacks, such as Ping of Death, SYN Flood, Port Scan and Land Attack.

 SPI: If you enable SPI, all traffics initiated from WAN would be blocked, including DMZ, Virtual

Server, and ACL WAN side.

4.4.2 Routing

Choose “Advanced Setup→Routing” menu, and you will see the routing information in the next

screen (shown in Figure 4-31).

Figure 4-31

Click ADD ROUTE button to add a new route in the next screen (shown in Figure 4-32).

Figure 4-32
