TD-W8901N

150Mbps Wireless N ADSL2+ Modem Router User Guide

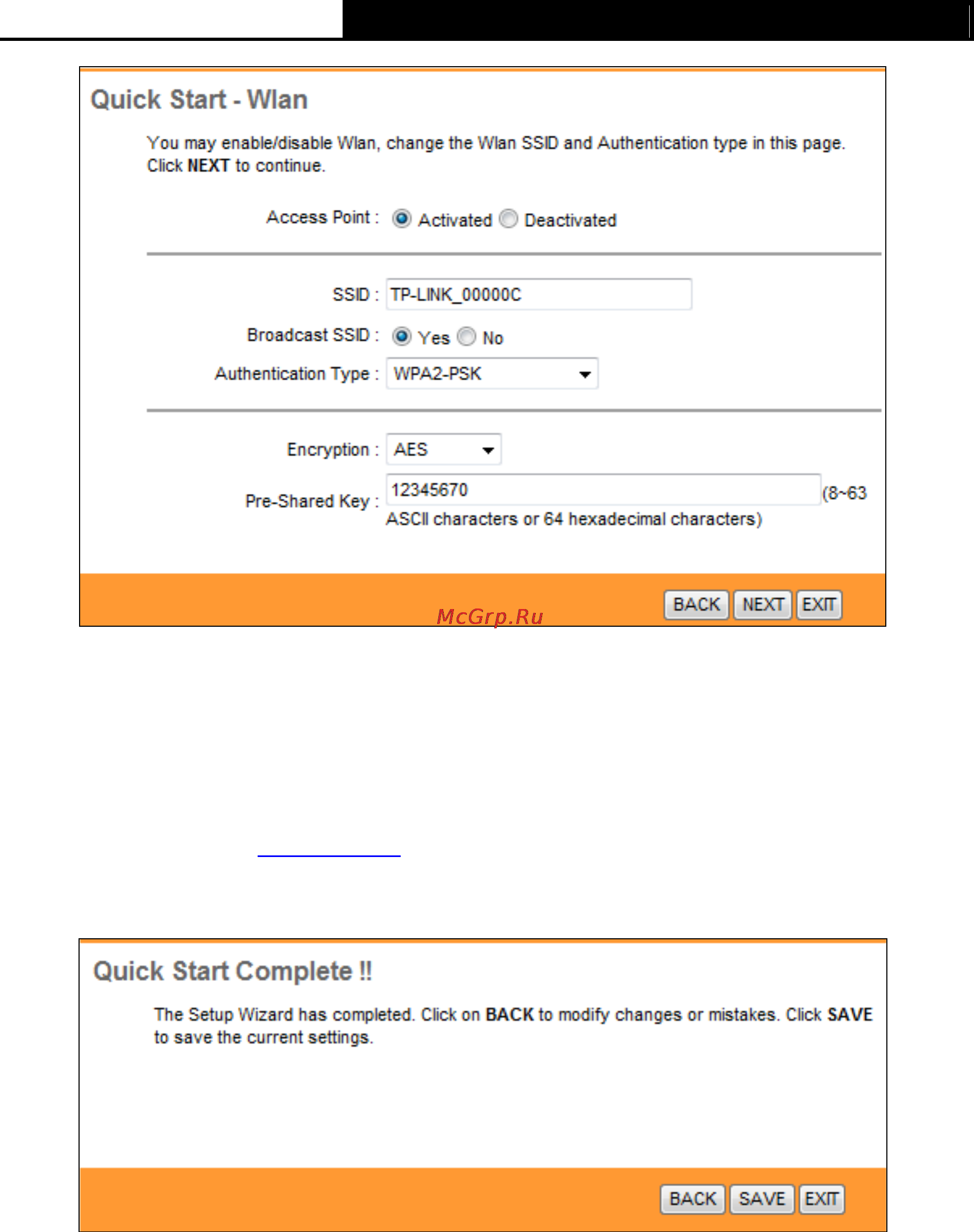

Figure 3-7



Note:

If the Access Point is activated, the wireless function will be available even without the external

antenna because of an additional printed antenna. To adopt the wireless security protection

measures, please refer to 4.3.3 Wireless.

Step 5: Click SAVE to finish the Quick Start.

Figure 3-8
