TD-W8901N

150Mbps Wireless N ADSL2+ Modem Router User Guide

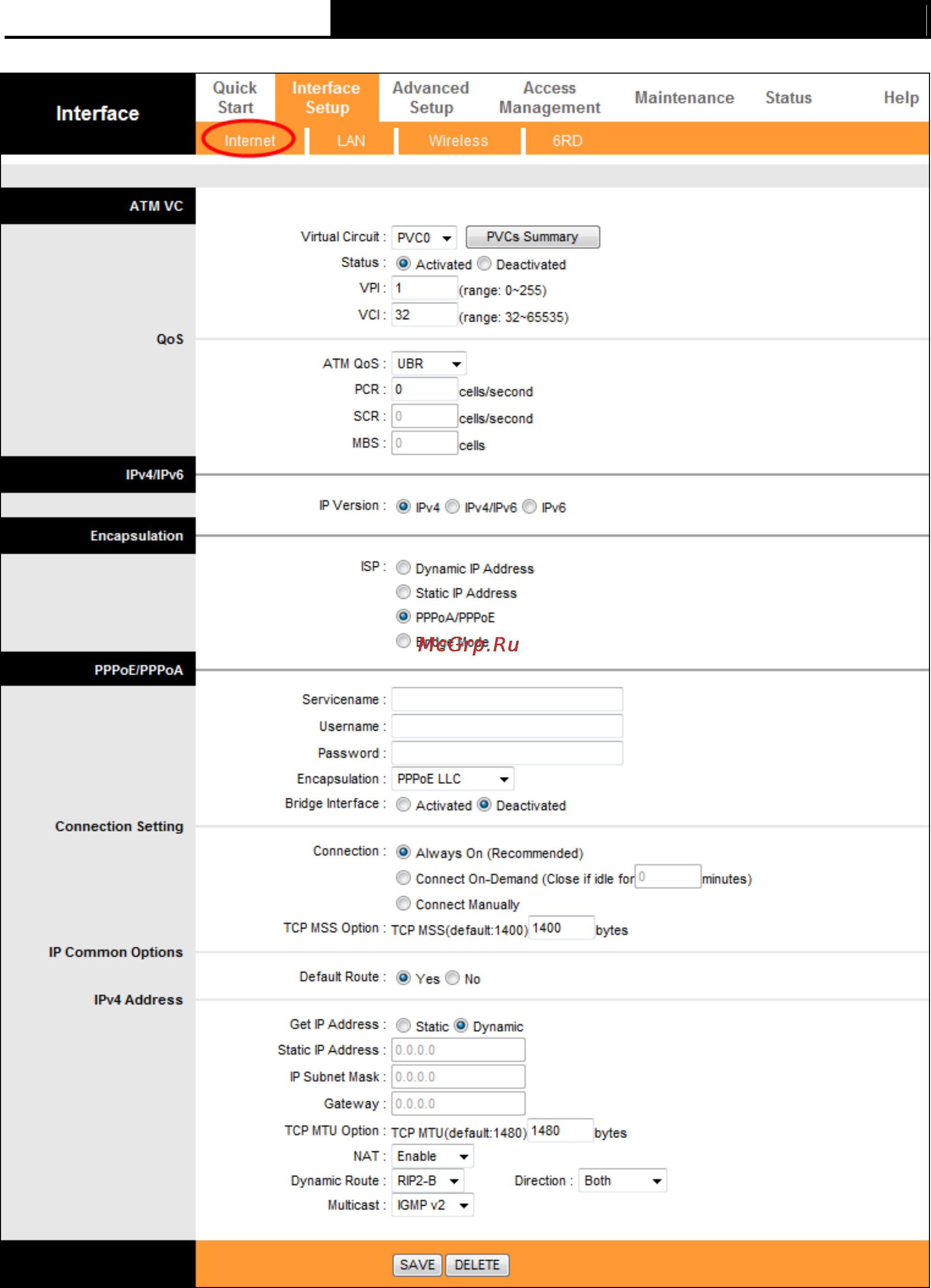

Figure 4-6

 ATM VC: ATM settings are used to connect to your ISP. Your ISP provides VPI (Virtual Path

Identifier), VCI (Virtual Channel Identifier) settings to you. In this Device, you can totally setup

8 VCs on different encapsulations, if you apply 8 different virtual circuits from your ISP. You
