TD-W8901N
150Mbps Wireless N ADSL2+ Modem Router User Guide

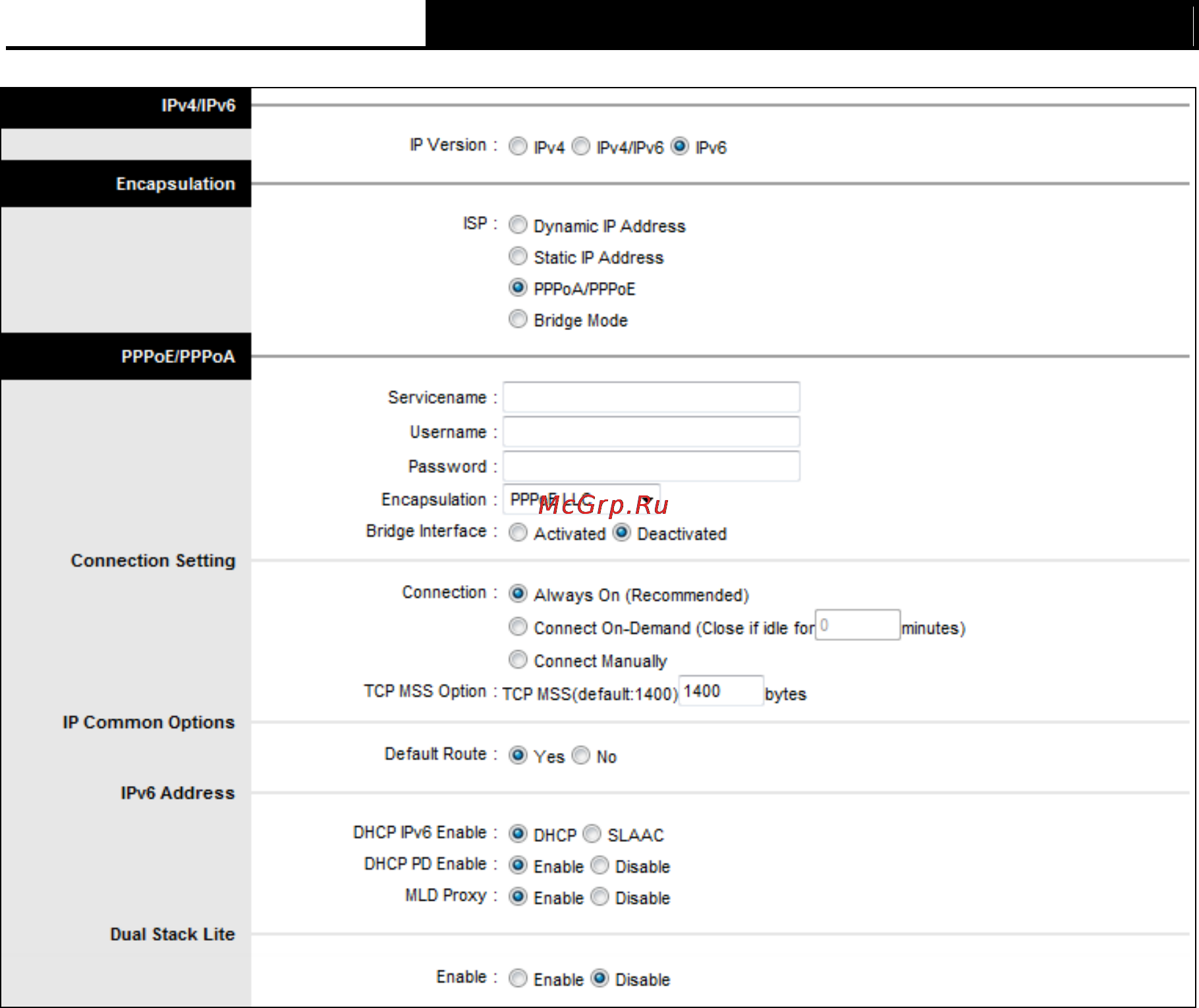

Figure 4-13
Service name: Specify a name for the PPPoA/PPPoE connection for recognition.
Username: Enter your username for your PPPoA/PPPoE connection to identify and verify
your account to the ISP.
Password: Enter your password for your PPPoA/PPPoE connection.
Encapsulation: For both PPPoA/PPPoE connection, you need to specify the type of
Multiplexing, either LLC or VC Mux.
Bridge Interface: Activate the option, the modem router can also work in Bridge mode.
Connection: For PPPoA/PPPoE connection, you can select Always on or Connect
on-Demand or Connect Manually. Connect on demand is dependent on the traffic. If there is
no traffic (or Idle) for a pre-specified period of time, the connection will drop down
automatically. And once there is traffic send or receive, the connection will be automatically
on.
TCP MSS Option
：
Enter the TCP MSS as your desire. The default value is 1400.
Default Route: You should select Yes to configure the PVC as the default gateway to
Internet from this device.
DHCP IPv6: There are two types of assignation for IPv6 address: DHCP (Dynamic Host
Configuration Protocol) Server and SLAAC (Stateless address auto-configuration). Select
your assignation type accordingly.
28
