TD-W8901N
150Mbps Wireless N ADSL2+ Modem Router User Guide

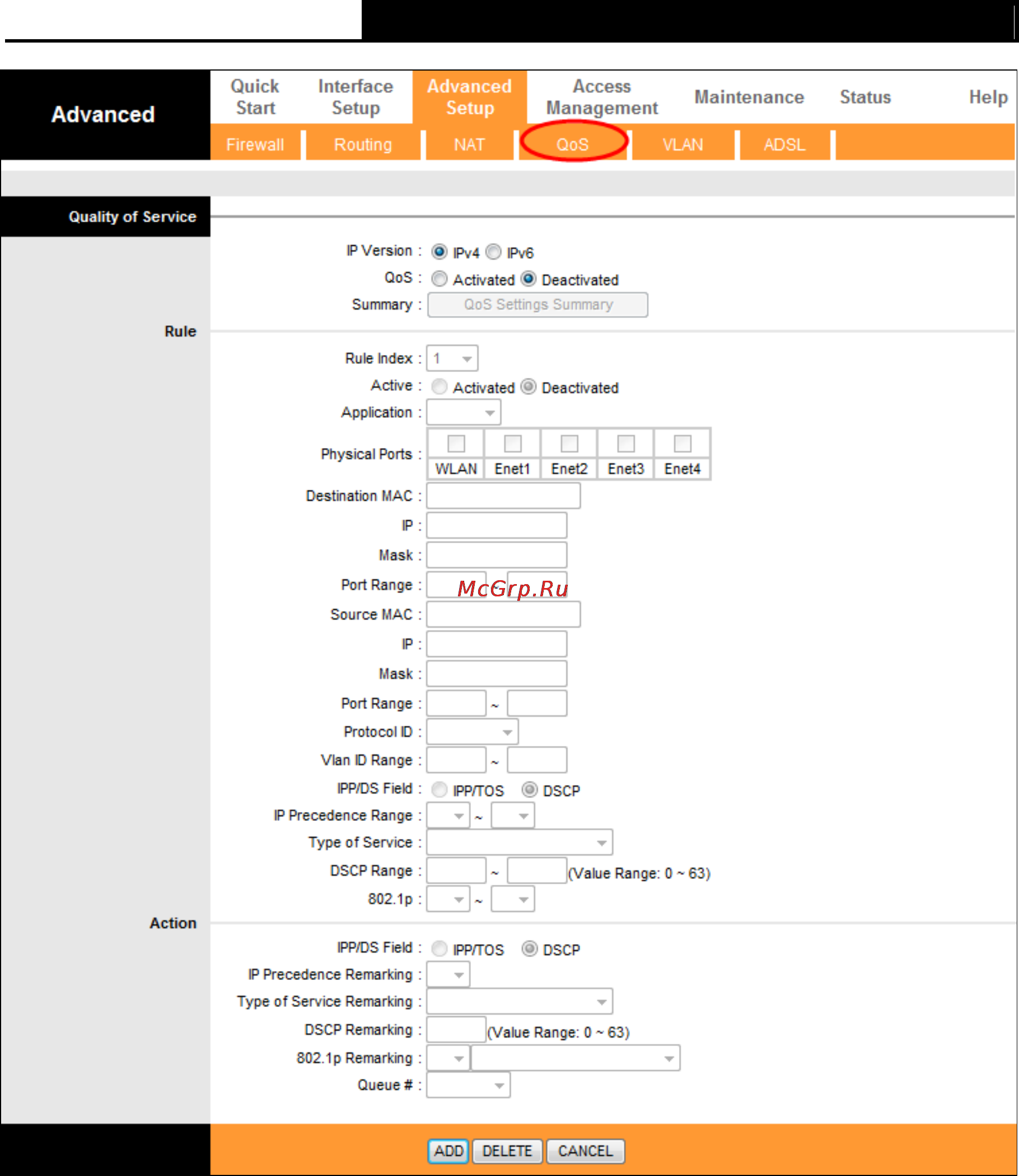

Figure 4-37
IP Version
：
Select your IP version.
QoS: Select this option to Activate/Deactivate the IP QoS on different types (IP ToS and
DiffServ).
Summary: Click the button to view the configurations of QoS.
Rule: Configure the rules for QoS. If the traffic complies with the rule, then the modem router
will take the corresponding action to deal with it.
• Rule Index: Select the index for the rule you want to configure.
• Active: Activate the rule. The rule can take effect only when it is activated.
52
