TD-W8901N

150Mbps Wireless N ADSL2+ Modem Router User Guide

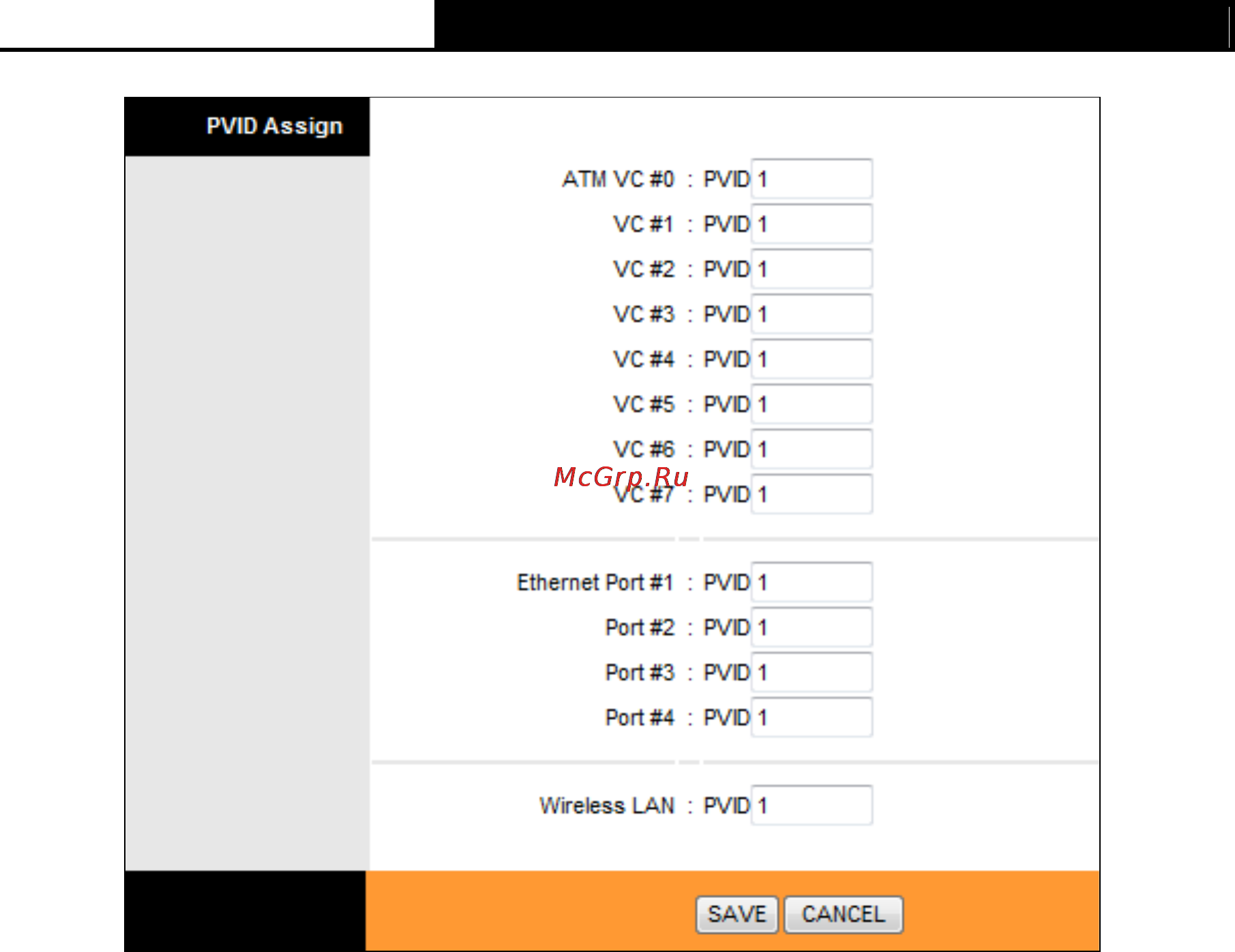

Figure 4-40

 PVID: Each physical port has a default VID called PVID (Port VID). PVID is assigned to

untagged frames or priority tagged frames (frames with null (0) VID) received on this port.

4.4.6 ADSL

Choose “Advanced Setup→ADSL”, you can select the ADSL Type and ADSL Mode in the next

screen. The ADSL feature can be selected when you meet the physical connection problem.

Please check the proper settings with your Internet service provider.
