TD-W8901N

150Mbps Wireless N ADSL2+ Modem Router User Guide

website of IP address 202.96.134.12, while other PCs have no limit. You can configure the rules

as follows. Presume the rules are both aimed at the interface PVC0, and their indexes are (1, 1),

(1, 2) and (1, 3).

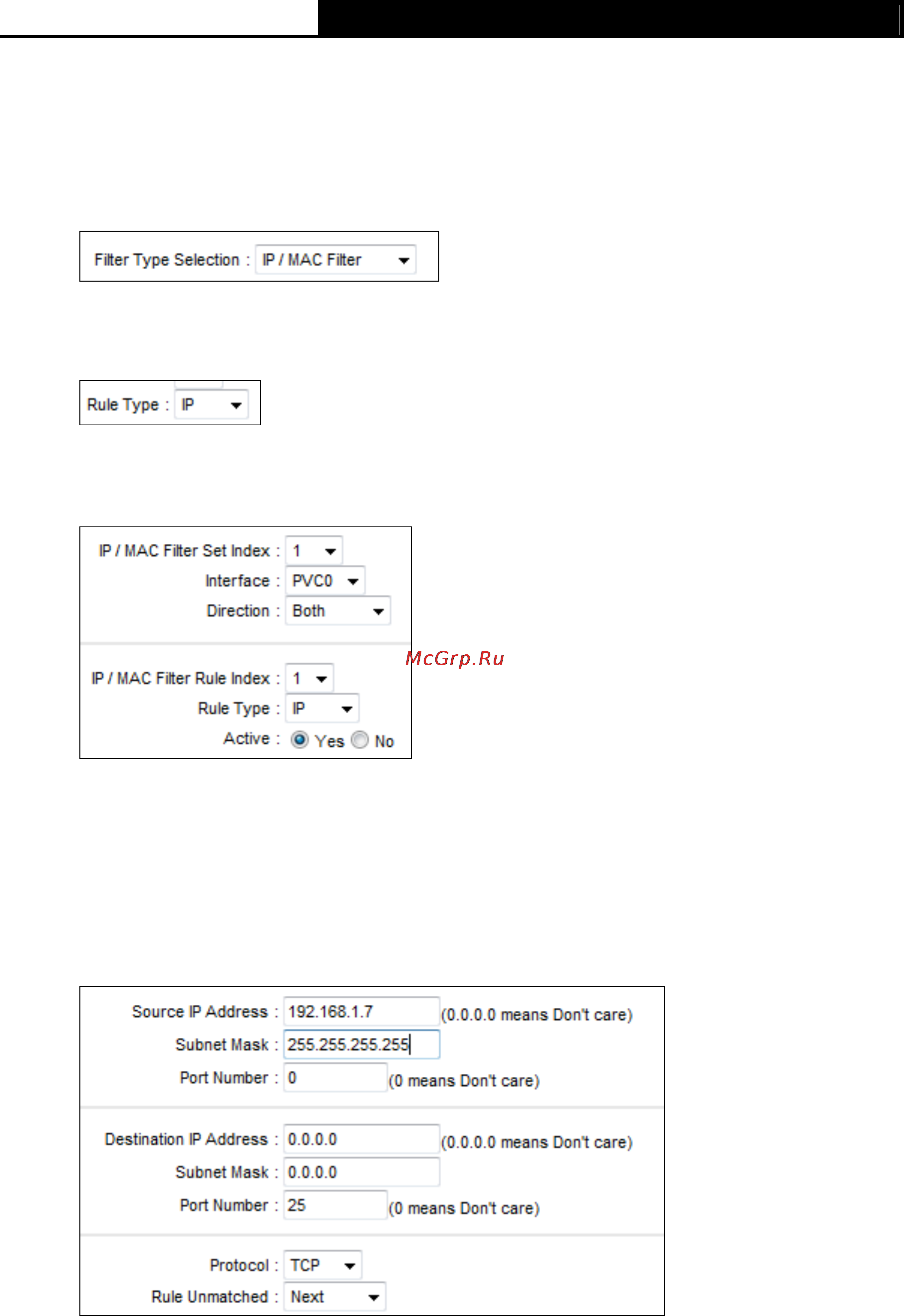

Step 1: Select the “IP/MAC Filter” as the Filter Type Selection (show in Figure 4-46).

Select the “IP” as the Rule Type on the Filter screen, then you can configure the specific

rule for the example.

Step 2: Select the IP/MAC Filter Set Index and IP/MAC Filter Rule Index for the rule, then

select the Interface “PVC0”, and select the Direction “Both” for the first rule.



Note:

If you want to make the rule take effect, please select Yes to active the rule.

Step 3: Enter the “Source IP Address”, “Destination IP Address”, “Subnet Mask” and “Port

Number” in the corresponding field.

Step 4: Select the Protocol as “TCP” and select the Unmatched rule as “Next”.

Step 5: Finally, click the SAVE to save the entry.
