TL-WA701ND 150Mbps Wireless N Access Point User Guide

Select the operation mode based on your need, then click the Save button.

If the mode is changed, the Note Dialog will appear, shown as below. Click OK.

4.5 WPS

WPS (Wi-Fi Protected Setup) can help you to quickly and securely connect to a network. This

section will guide you to add a new wireless device to an existing network quickly by function. The

WPS function is only available when the Operation Mode is set to Access Point and Multi-SSID.

Here we take the Access Point mode for example. Select menu “WPS”, you will see the next

screen shown in Figure 4-5.

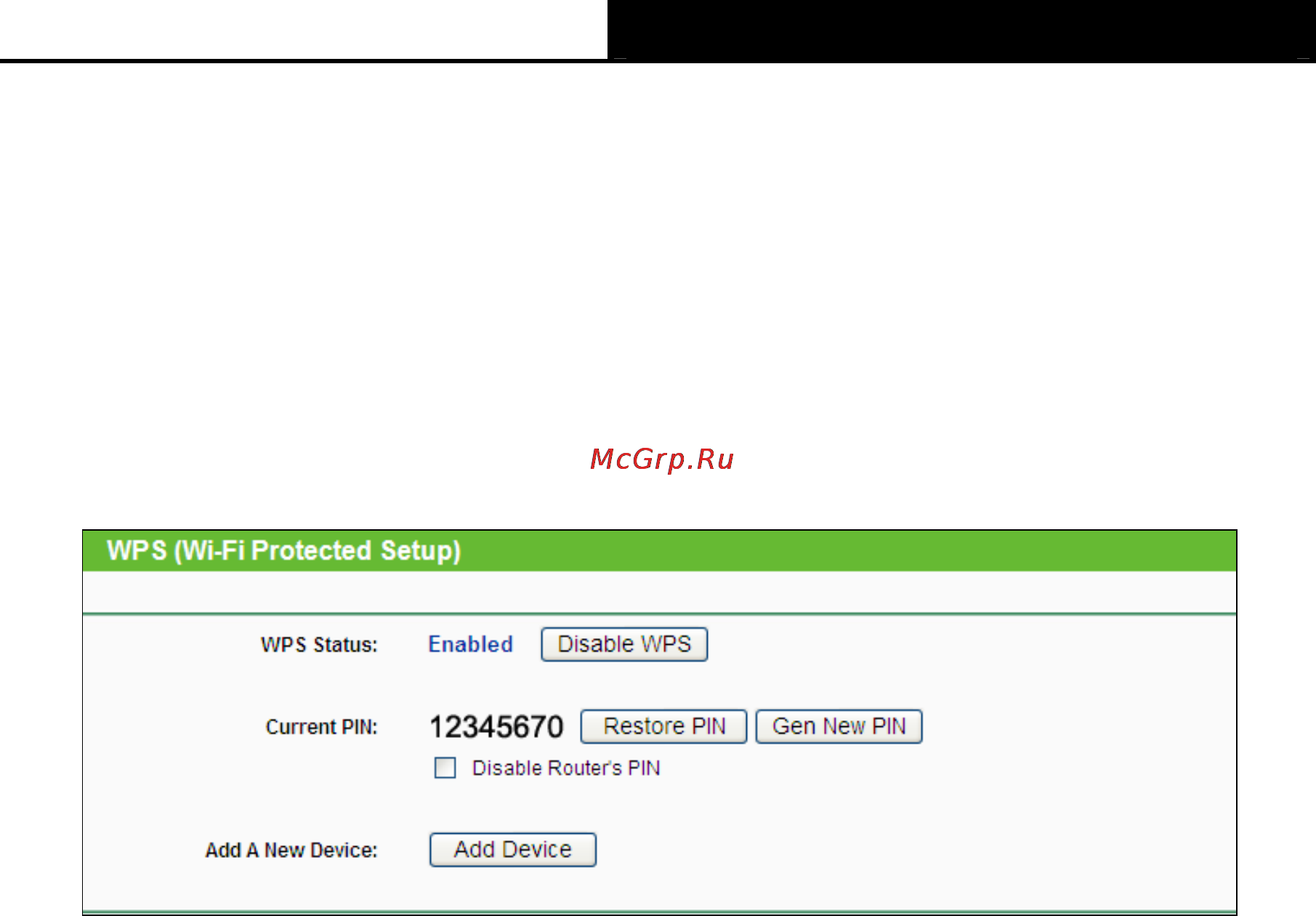

Figure 4-5 WPS

¾ WPS Status - To enable or disable the WPS function here.

¾ Current PIN - The current value of the device's PIN is displayed here. The default PIN of the

device can be found in the label or User Guide.

¾ Restore PIN - Restore the PIN of the device to its default.

¾ Gen New PIN - Click this button, and then you can get a new random value for the device's

PIN. You can ensure the network security by generating a new PIN.

¾ Disable Router’s PIN - WPS external register of entering the device’s PIN can be disabled

or enabled manually. If the device receives multiple failed attempts to authenticate an

external Register, this function will be disabled automatically.

¾ Add Device - You can add a new device to the existing network manually by clicking this

button.

To add a new device:

If the wireless adapter supports Wi-Fi Protected Setup (WPS), you can establish a wireless

connection between wireless adapter and device using either Push Button Configuration (PBC)

method or PIN method.

)

Note:

To build a successful connection by WPS, you should also do the corresponding configuration of

the new device for WPS function meanwhile.

For the configuration of the new device, here takes the Wireless Adapter of our company for

example.

I. By PBC

If the wireless adapter supports Wi-Fi Protected Setup and the Push Button Configuration (PBC)

method, you can add it to the network by PBC with the following two methods.
