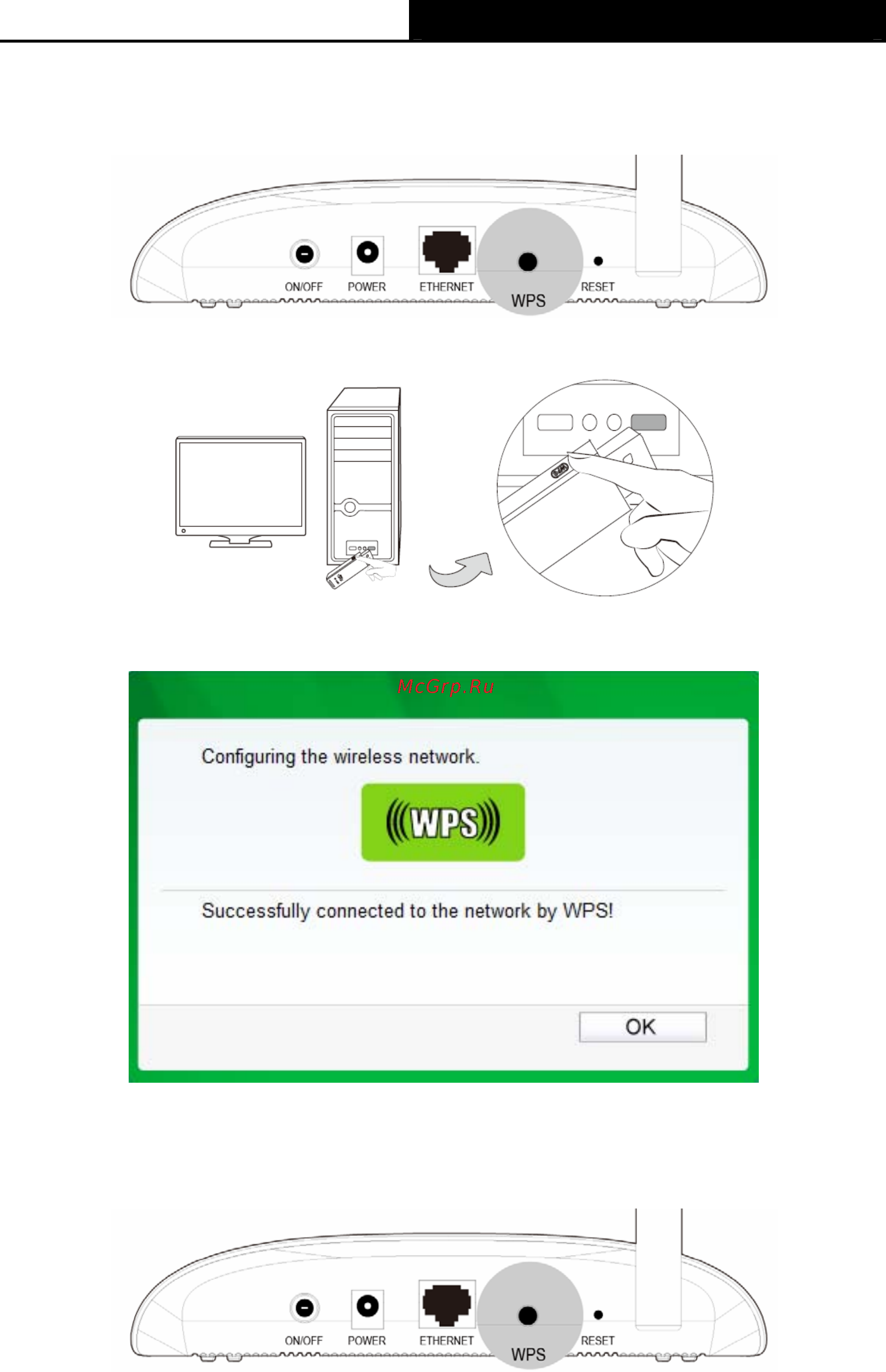

TL-WA701ND 150Mbps Wireless N Access Point User Guide

Method One:

Step 1: Press the WPS button on the rear panel of the device.

Step 2: Press and hold the WPS button of the adapter directly for 2 or 3 seconds.

Step 3: Wait for a while until the next screen appears. Click Finish to complete the WPS

configuration.

The WPS Configuration Screen of Wireless Adapter

Method Two:

Step 1: Press the WPS button on the rear panel of the device.

Step 2: For the configuration of the wireless adapter, please choose “Push the button on my

access point” in the configuration utility of the WPS as below, and click Next.
