TL-WA701ND 150Mbps Wireless N Access Point User Guide

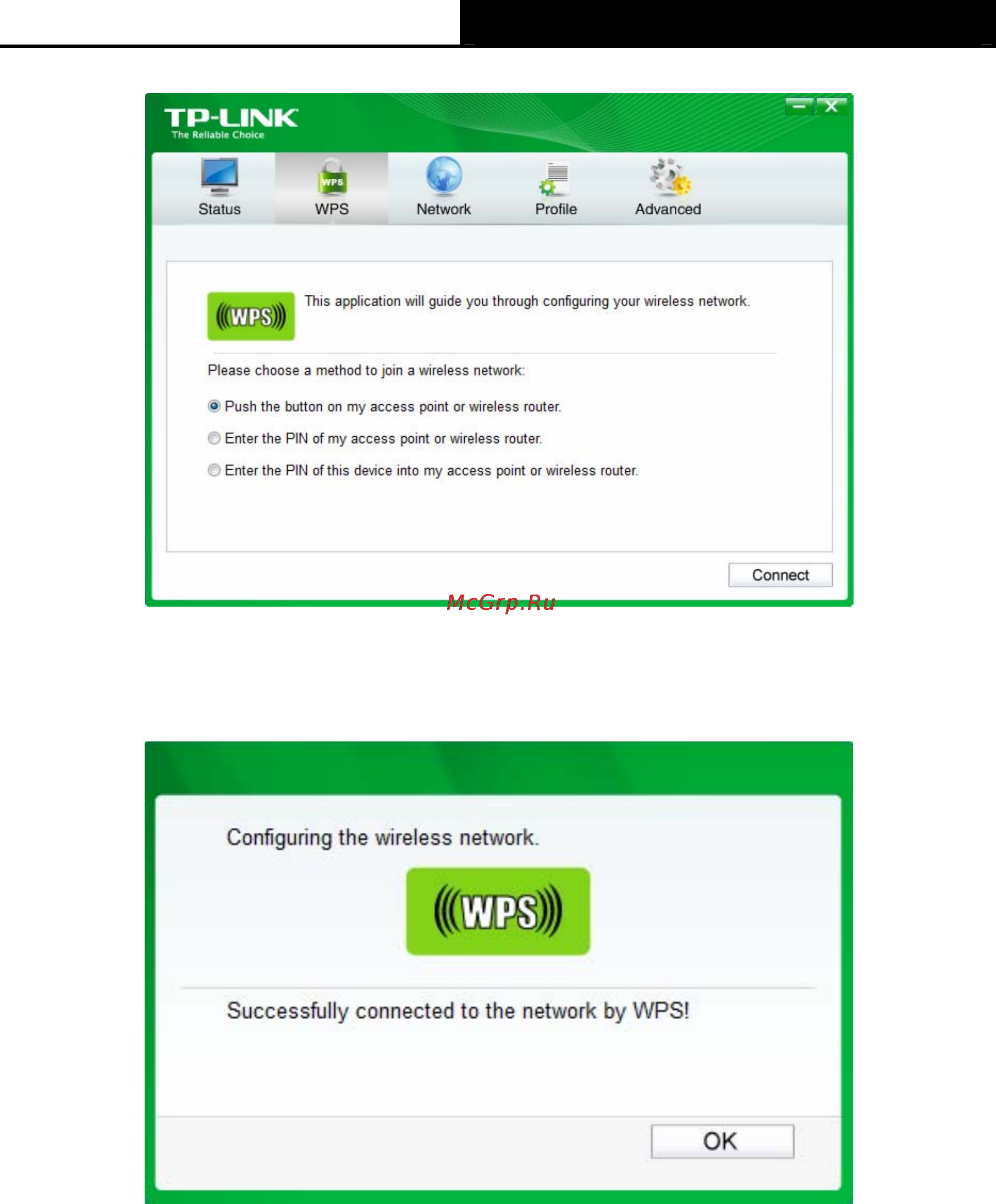

The WPS Configuration Screen of Wireless Adapter

Step 3: Wait for a while until the next screen appears. Click Finish to complete the WPS

configuration.

The WPS Configuration Screen of Wireless Adapter

Method Three:

Step 1: Keep the default WPS Status as Enabled and click the Add device button in Figure 4-5,

then the following screen will appear.
