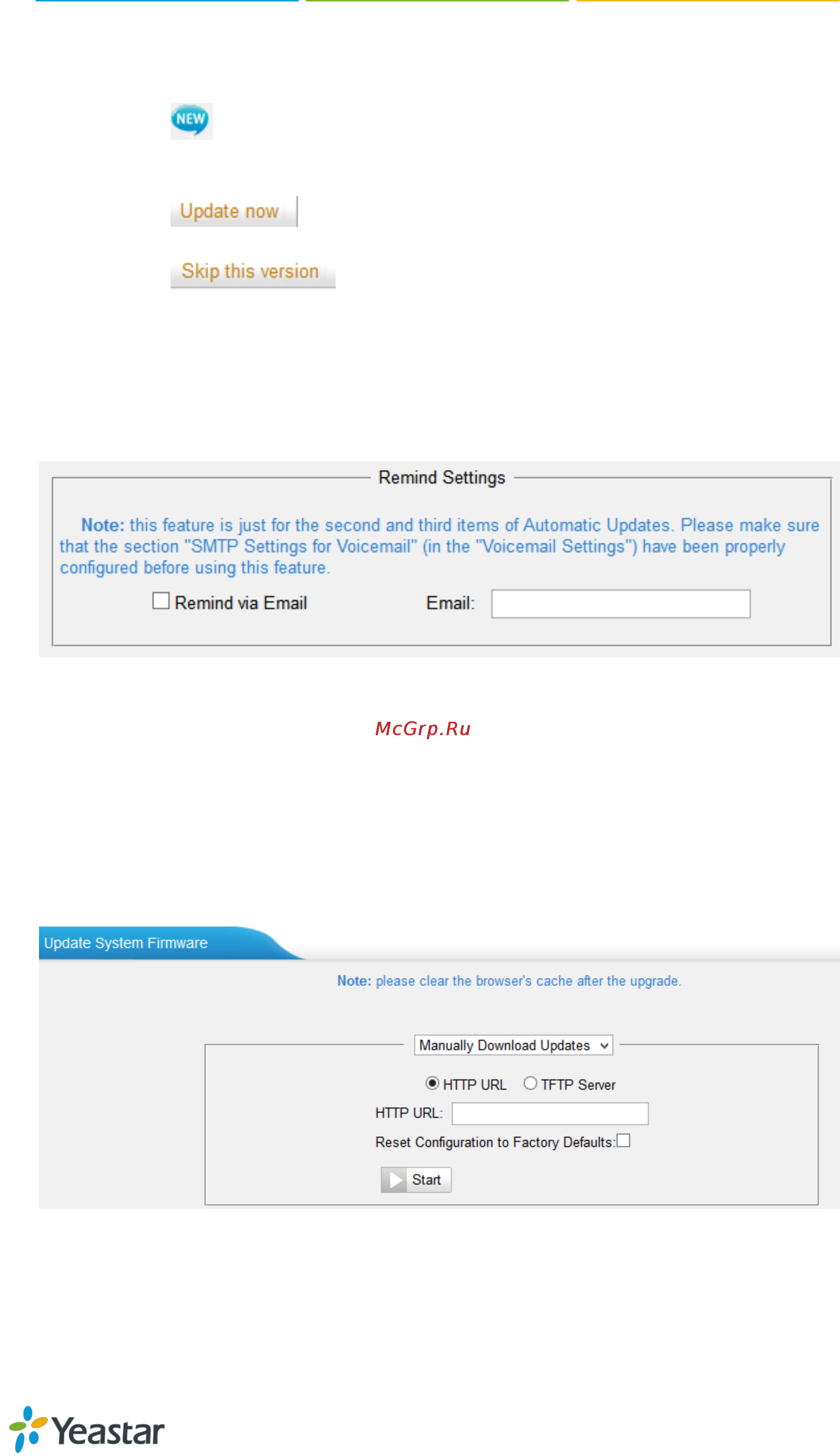

![Yealink N824 [100/104] Upgrade through http](/views2/1192296/page100/bg64.png)
N824 Administrator Manual
95
Check for Updates and let me choose whether to update:
1) Set when to do check the updates automatically from the cloud server.
2) Click behind the new firmware version to view what is new for the new
firmware.
3) Click to update the firmware to the new one now.
4) Click to ignore the new firmware.
Check for updates and automatically install: automatically downloads and installs
firmware updates without even asking.
A notification will be send via a pre-configured email address for the send and third
items of Automatic Updates.
Figure 20-2 Email Notification for Automatic Updates
Upgrade through HTTP
On the Firmware Upgrade page, choose HTTP URL.
Step1. Enter the update image file download link.
Note: the HTTP URL should be a BIN file download link.
Step2. Click ―Start‖ to upgrade.
Figure 20-3 Upgrade through HTTP
Upgrade through TFTP
Step1. Download firmware file from Yeastar website.
