N824 Administrator Manual
3
N824 Rear Panel

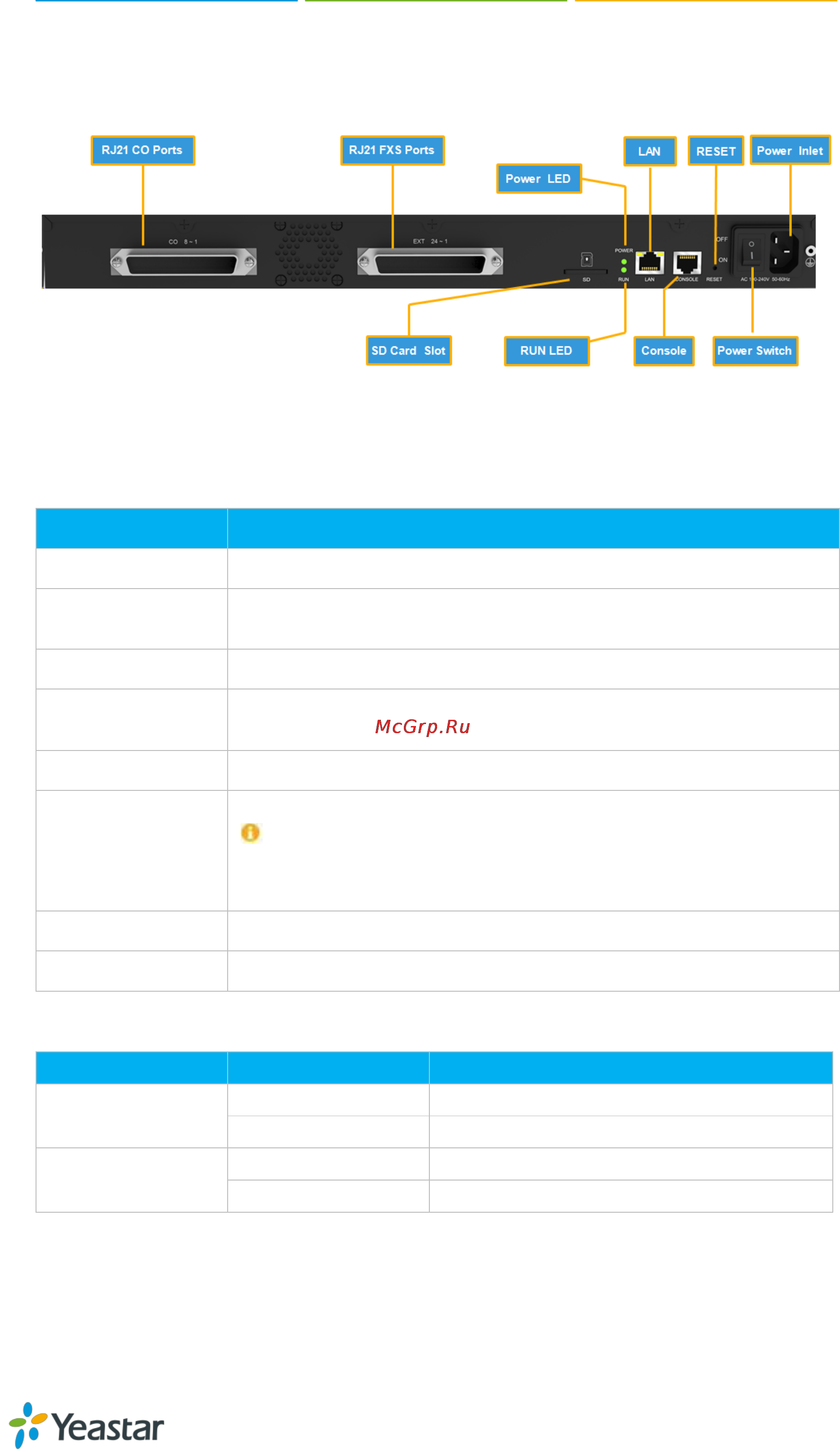

Figure 1-2 N824 Rear Panel
Table 1-3 N824 Rear Panels–Port Description
Port
Description
RJ21 CO Ports
For connection of CO lines with an RJ21 to RJ11 cable.
RJ21 FXS Ports
For connection of analog phones/fax machines with an RJ21 to
RJ11 cable.
SD Card Slot
Insert the SD card and restore the recording files.
LAN Port
10/100 Base-TX, connect one end of an RJ-45 Ethernet cable
into the LAN port.
Console Port
Used for service and maintenance.
Reset Button
Press the reset button to restore the factory defaults.
Please make sure that you want to reset, because once
reset the previous configurations would be erased
automatically.
Power Switch
Power Inlet
For connection of power supply.
Table 1-4 N824 Rear Panel–LED Description
LED
LED Status
Description
POWER
On
The power is switched on.
Off
The power is switched off.
RUN
Blinking
N824 is running properly.
Not Blinking/Off
N824 goes wrong.
