N824 Administrator Manual
7
Application Overview
With N824, in addition to use the functions as traditional PBX, you could expand the
communication flexibly with 4 SIP trunks, 8 SIP extensions. You will enjoy the N824
with its easy management that you had never experienced on a traditional PBX.
Yeastar has developed an App called Linkus for you to access your N824 wherever
you are with your smart phones, which significantly increase the flexibility and mobility
of your communication.

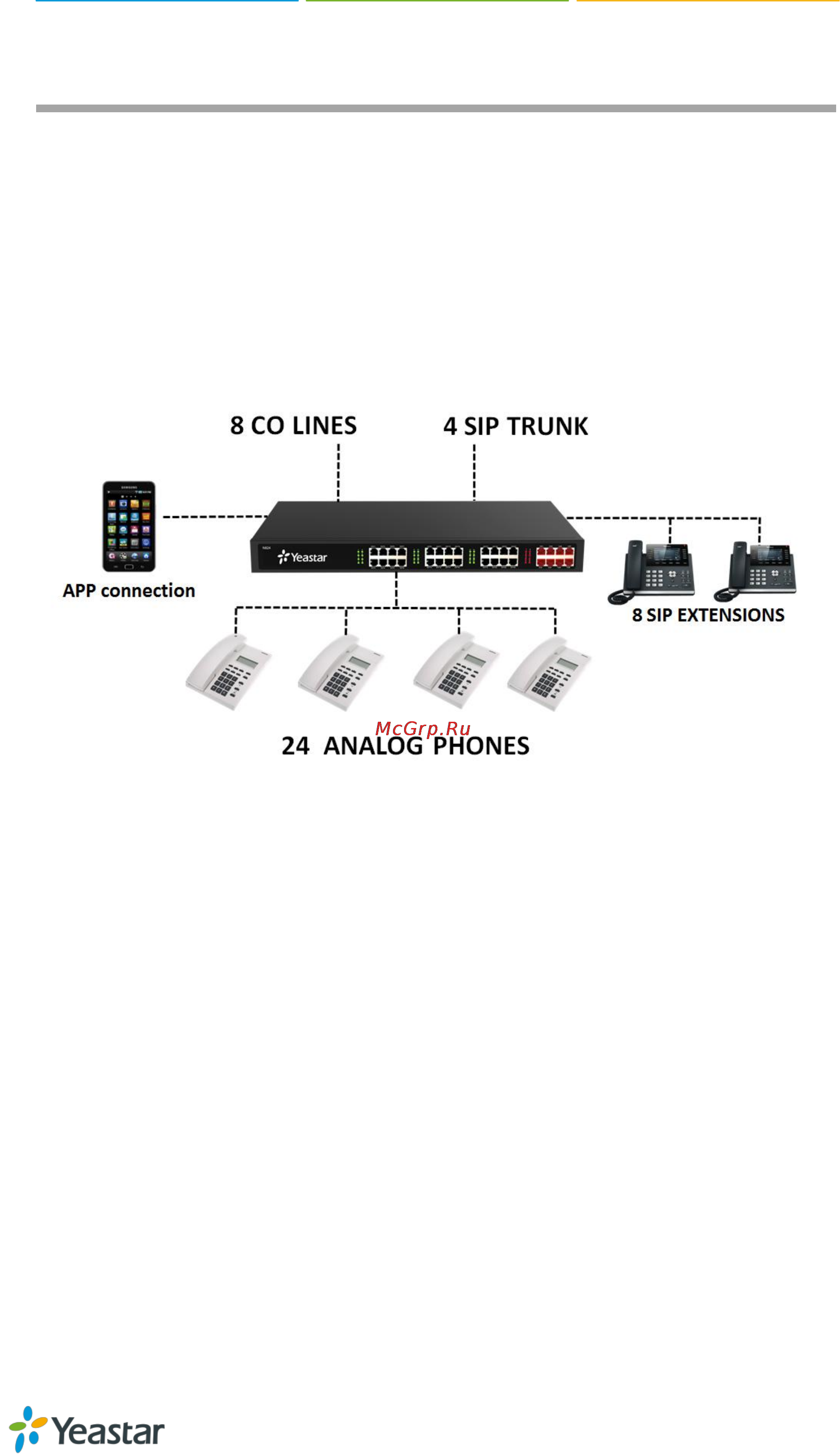

Figure 3-1 N824 Application Overview
