N824 Administrator Manual
2
connected. Work on the move anytime, anywhere!
Cloud Service
Detect the new firmware from cloud server and upgrade automatically.
Learn more about N824 here:
http://www.yeastar.com/Products/Smart-Analog-PBX-N824

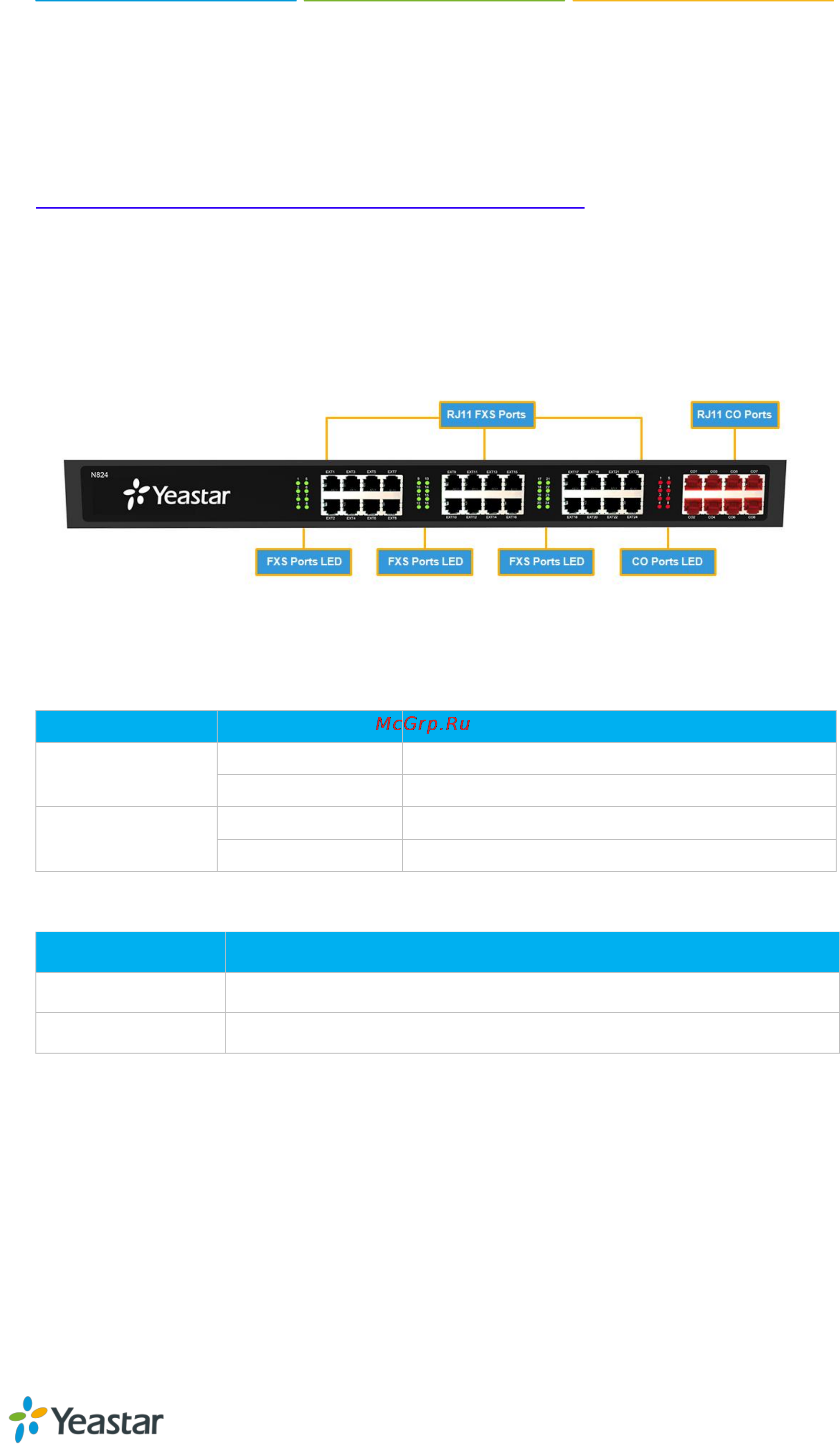

N824 Front Panel
Figure 1-1 N824 Front Panel
Table 1-1 N824 Front Panel - LED Description
LED
LED Status
Description
FXS Ports Status
Solid Green
The port is idle.
Blinking Green
There is an ongoing call on the port.
CO Ports Status
Solid Red
The port is being used.
Blinking Red
The port is idle.
Table 1-2 N824 Front Panels–Port Description
Port
Description
FXS Ports (1-24)
For connection of analog phones/fax machines.
Co Ports (1-8)
For connection of CO lines.
