ZOTAC ZBOX nano
Positioning the ZOTAC ZBOX nano
• Do not position the ZOTAC ZBOX nano where the ventilation holes are covered. To
guarantee proper use, leave 4 inches (10 cm) of spacing in front of the ventilation
holes.
• ZOTAC ZBOX nano mini-PC systems provide ample connectivity in a tiny form
factor, please choose connectors and cables in appropriate sizes to avoid
interference.

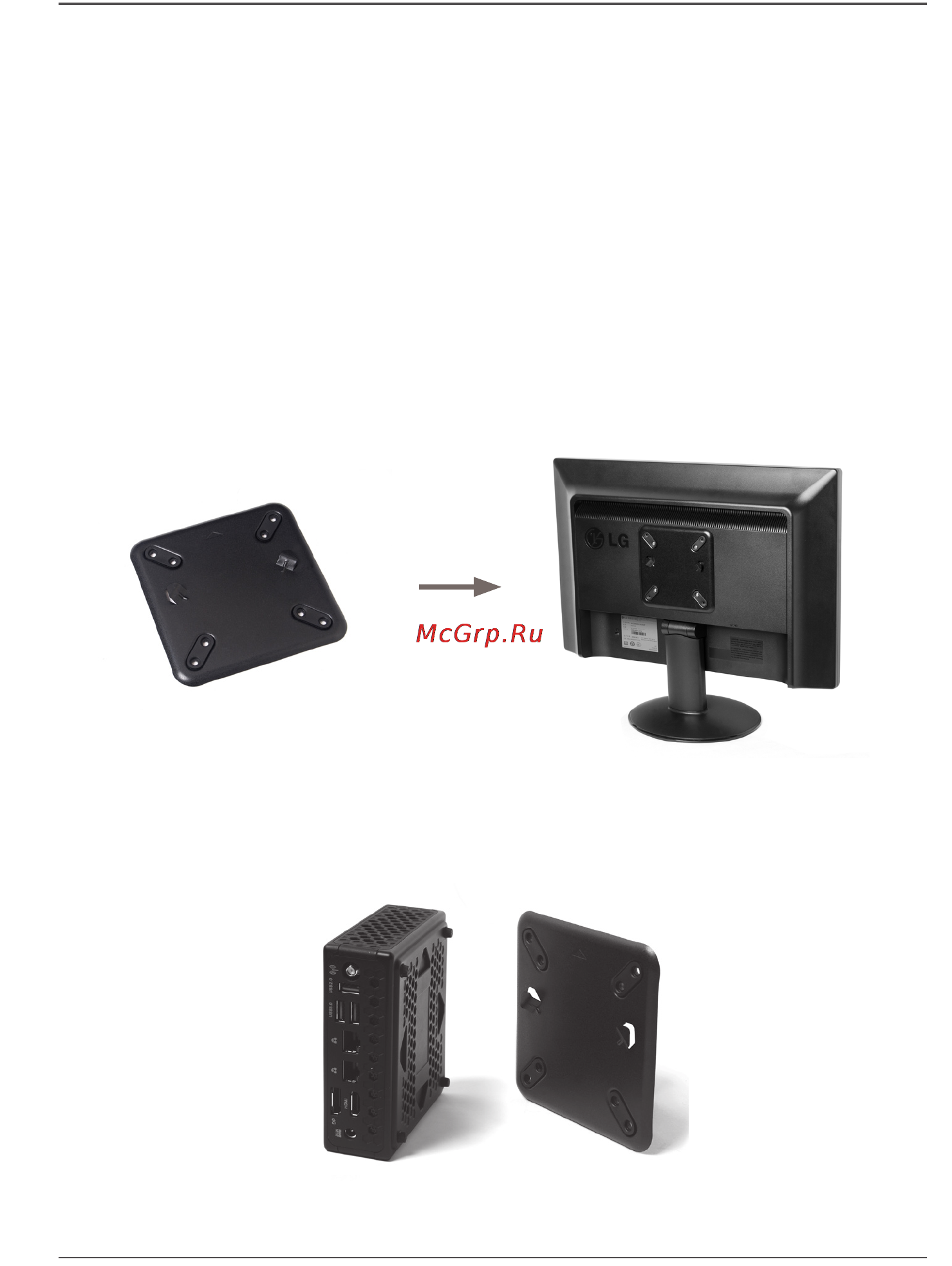

Mounting the ZOTAC ZBOX nano to an LCD monitor
You can attach your ZOTAC ZBOX nano to the back of a VESA75/100 compliant
monitor.
1. Secure the VESA mount to the LCD monitor using 4 screws (not included).
Disclaimer: ZOTAC cannot be held liable for damages resulting from an improper installation.
2. Align the ZOTAC ZBOX nano mounting holes to the VESA mount attachment
pegs. Attach the ZOTAC ZBOX nano to the VESA mount and gently press down
to secure the ZBOX to the mount.
