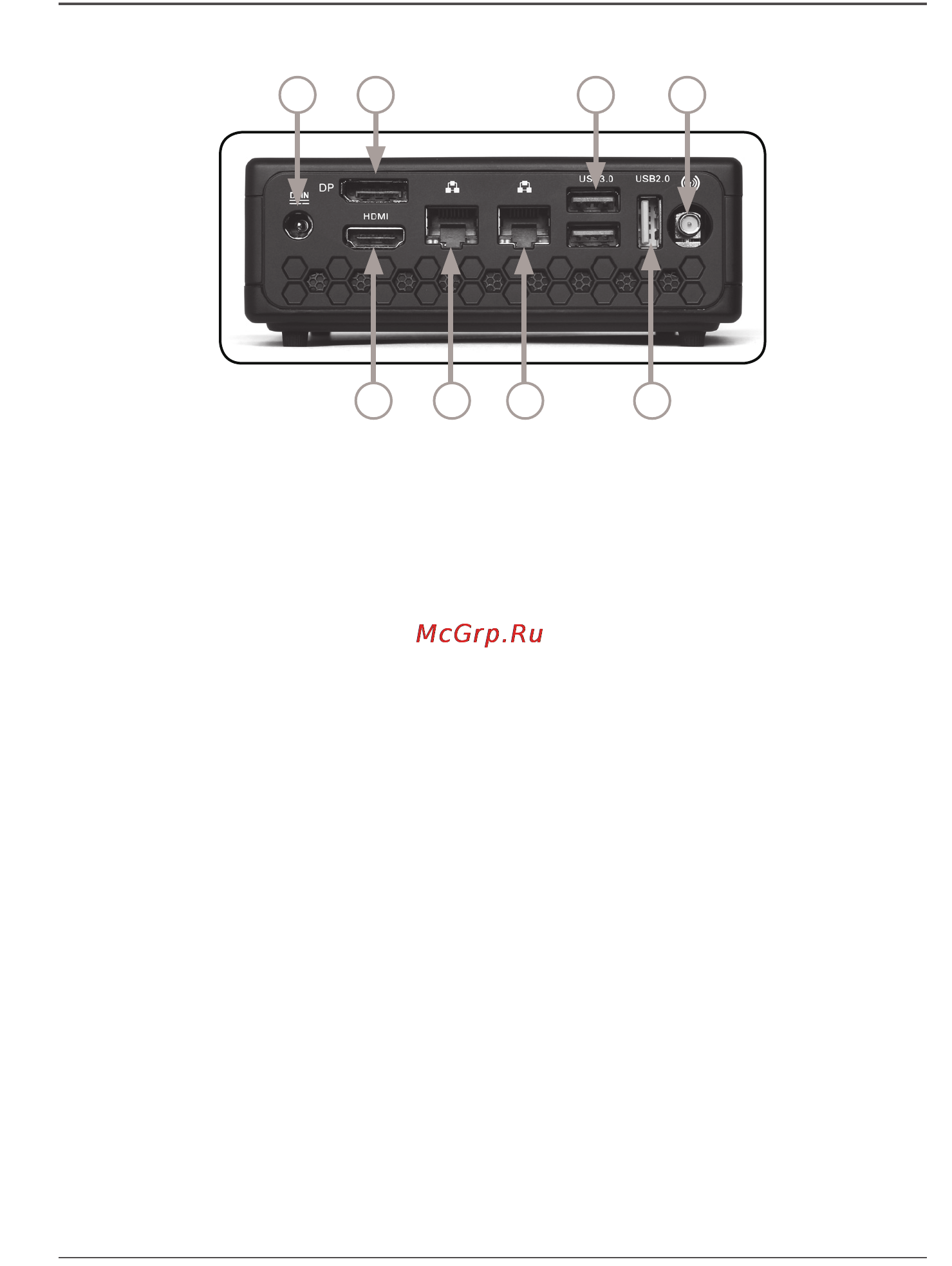

Refer to the diagram below to identify the components on this side of the system.

1. Power input (DC19V)

The supplied power adapter converts AC power to DC power for use with this jack.

Power supplied through this jack supplies power to the mini-PC. To prevent damage

to the mini-PC, always use the supplied power adapter.

2. HDMI output

The HDMI (High Denition Multimedia Interface) port supports a Full-HD device

such as an LCD TV or monitor to allow viewing on a larger external display.

3. DisplayPort output

The DisplayPort outputs support displays with resolutions up to 2560x1600 @60Hz.

4. Ethernet ports

The eight-pin RJ-45 LAN port supports standard Ethernet cable for connection to a

local area network (LAN) with speeds of 10/100/1000Mbps.

5. USB 3.0 ports

The USB 3.0 ports support the SuperSpeed USB 3.0 devices and are backwards

compatible with USB 2.0/1.1 devices. Use the ports for USB 3.0 devices for

maximum performance with USB 3.0 compatible devices.

6. USB 2.0 port

The USB (Universal Serial Bus) port is compatible with USB devices such as

keyboards, mice, cameras and hard disk drives.

7. Wi-Fi antenna connector

The Wi-Fi antenna connector supports the included Wi-Fi antenna.

Note 1: The power adapter may become warm to hot when in use. Do not cover the adapter and keep it

away from your body.

Note 2: Due to the special design for easy upgrade, some connectors are placed upside down.
