Zotac zbox-ci321nano-be [6/20] Getting to know your zotac zbox nano

ZOTAC ZBOX nano

Getting to know your ZOTAC ZBOX nano

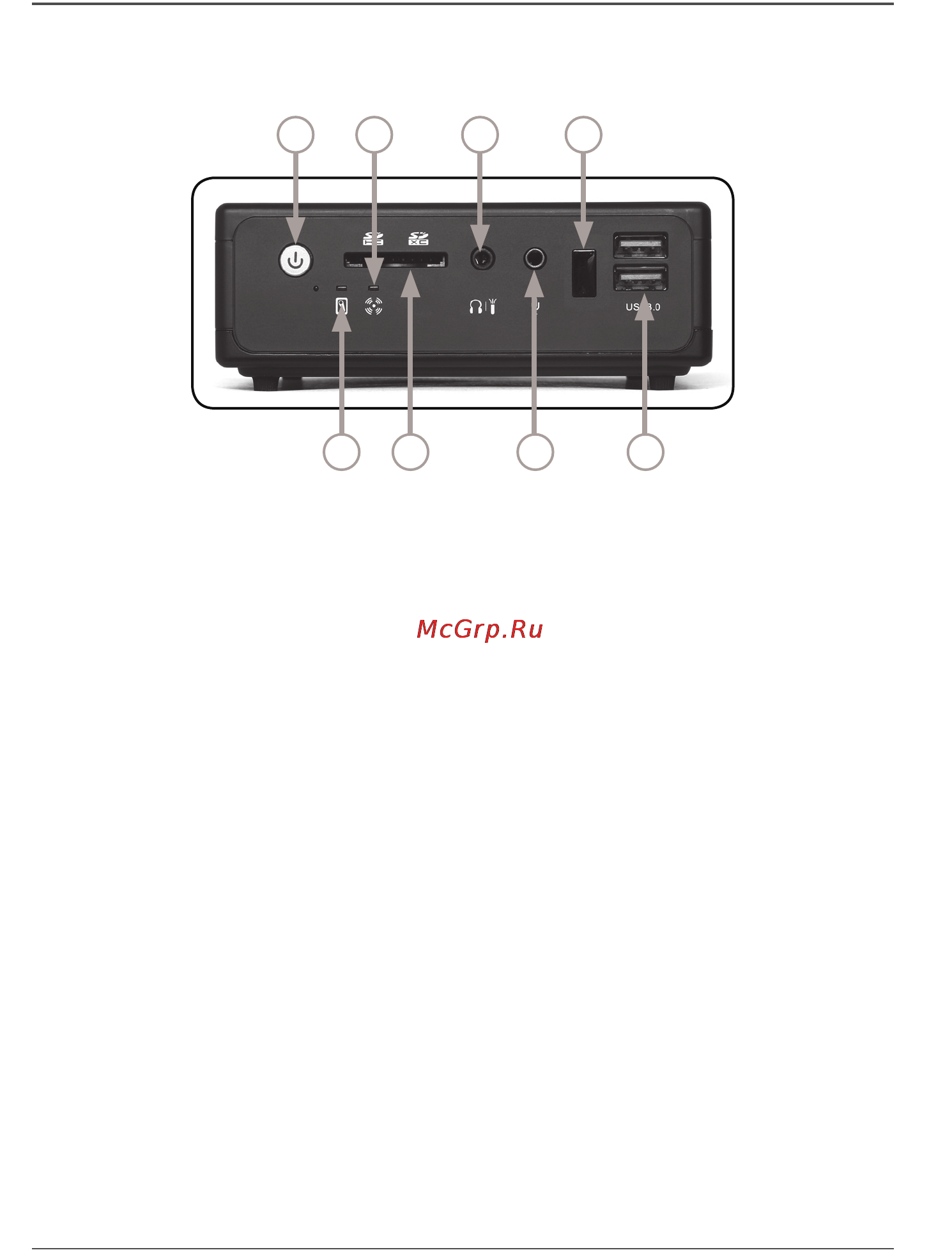

Front view

3 5 7

2 4 6 8

Refer to the diagram below to identify the components on this side of the system

1. Power button

The power button turns the mini-PC ON and OFF.

2. HDD status indicator

The hard disk LED blinks when data is being written onto or read from the hard

disk drive.

3. Wi-Fi status indicator

The Wi-Fi LED blinks when data is being transfered over Wi-Fi.

4. Memory card reader

The built-in memory card reader reads SD/SDHC/SDXC cards used in devices

such as digital cameras, MP3 players, mobile phones and PDAs.

5. Combo analog/mini-Optical S/PDIF output

The Combo analog/mini-Optical S/PDIF output (3.5mm) is used to connect the

system’s audio out signal to amplied speakers or headphones. It also supports

SPDIF output with the headphone/SPDIF adapter included in the package. The

optical SPDIF output enables connecting the ZBOX nano to digital audio receivers

and speakers for crystal clear digital audio and surround sound from compatible

soundtracks.

6. Microphone input

The microphone input is designed to connect a microphone for video conferencing,

voice narrations or simple audio recordings.

7. IR receiver

The integrated IR receiver is used to receive signals from the IR remote control.

8. USB 3.0 ports

The USB 3.0 ports support the SuperSpeed USB 3.0 devices and are backwards

compatible with USB 2.0/1.1 devices. Use the ports for USB 3.0 devices for

maximum performance with USB 3.0 compatible devices.
