Zotac zbox-bi319-e [16/16] Configuring audio output via an hdmi device

ZOTAC ZBOX

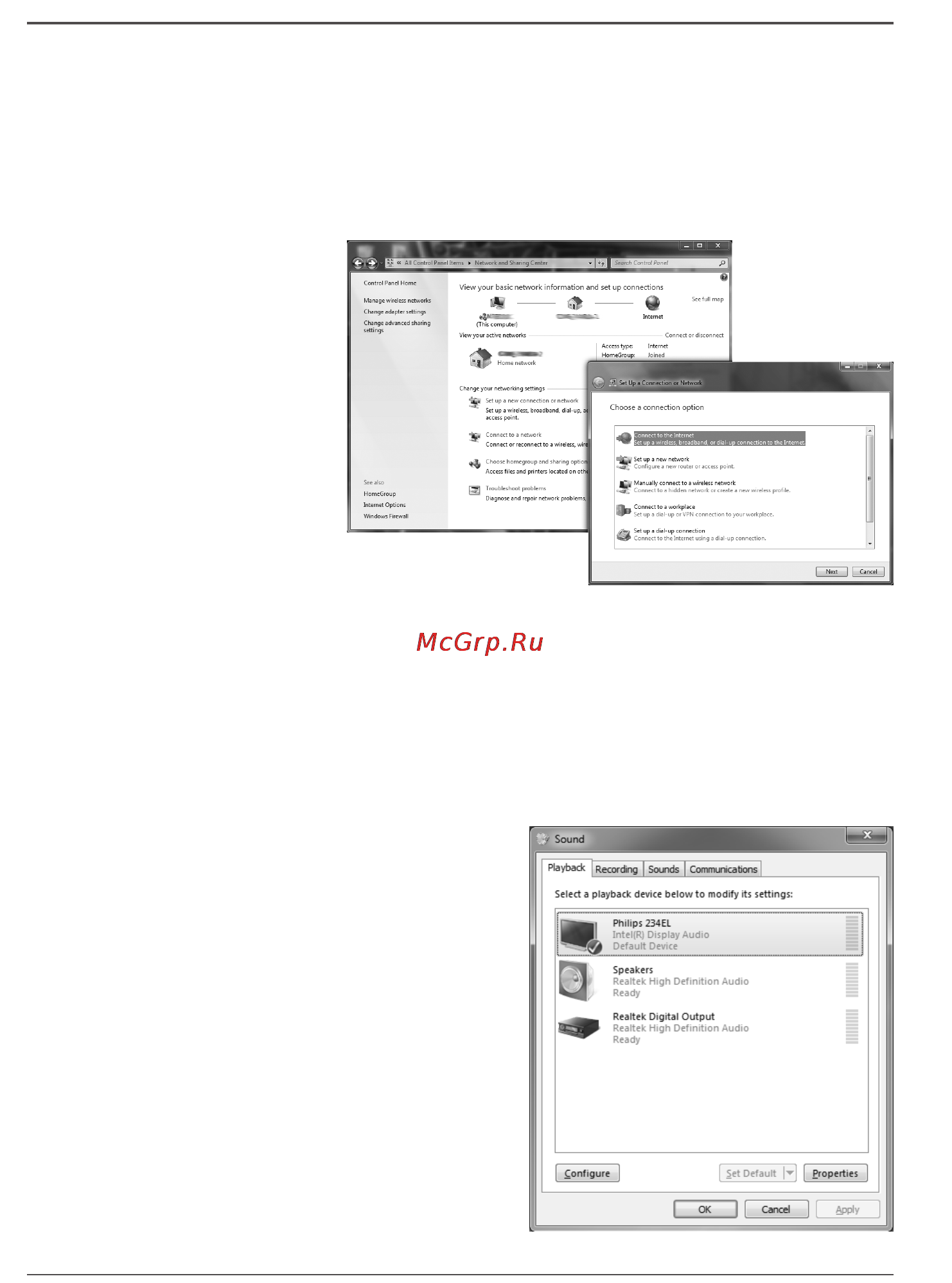

Using a dynamic IP (PPPoE connection)

1. Repeat Step 1-3 in the previous section.

2. Select Obtain an IP address automatically and click OK.

3. Click Create a new connection to start the NEW Connection Wizard.

4. Click Next.

5. Select Connect to the Internet and click Next.

6. Select Set up my connec-

tion manually.

7. Select your connection

type and click Next.

8. Enter your ISP Name and

click Next.

9. Enter your User name and

Password. Click Next.

10. Click Finish to nish the

conguration.

11. Enter your user name and

password. Click

Connect to connect to the internet.



Contact your internet Service Provider (ISP) if you have problems connecting to

the network.

Conguring audio output via an HDMI device

Follow the steps below to enable audio output via HDMI when connecting the

ZOTAC ZBOX to a TV or receiver via HDMI.

1. Access the Sound settings via the system

Control Panel.

2. Under Playback devices, click the display

device that corresponds with your audio

compatible display.

3. Click the “Set Default” button in the lower

right hand corner.

4. Click “OK” to exit the setup.

291-MB227-01
