ZOTAC ZBOX

Rear view

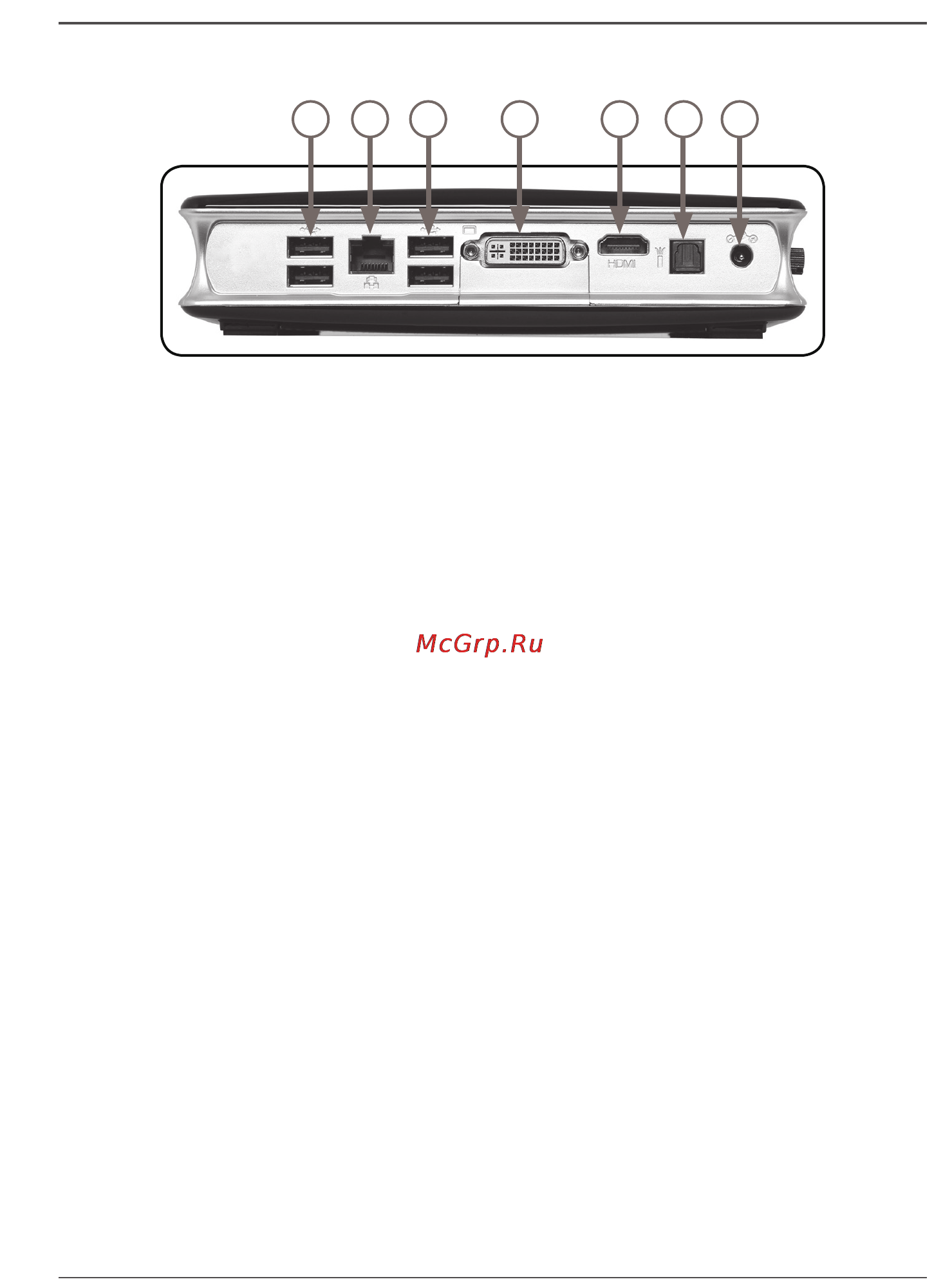

Refer to the diagram below to identify the components on this side of the system.

1. USB 2.0 ports

The USB (Universal Serial Bus) port is compatible with USB devices such as

keyboards, mice, cameras and hard disk drives.

2. LAN port

The eight-pin RJ-45 LAN port supports standard Ethernet cable for connection to

a local network.

3. DVI port

The DVI port supports connection to analog monitors and displays (supports VGA

for analog monitors with bundled DVI-VGA adapter).

Note: For best compatibility, please use the bundled DVI-VGA adapter.

4. HDMI port

The HDMI (High Denition Multimedia Interface) port supports a Full-HD device

such as an LCD TV or monitor to allow viewing on a larger external display.

5. Optical (SPDIF OUT) jack

Plug an optical cable into this jack for digital audio transfer.

6. Power input (DC19V)

The supplied power adapter converts AC power to DC power for use with this jack.

Power supplied through this jack supplies power to the PC. To prevent damage to

the PC, always use the supplied power adapter.



The power adapter may become warm to hot when in use. Do not cover the

adapter and keep it away from your body.
