Getting to know your ZOTAC ZBOX

Front view

1 2 3 4

5 6

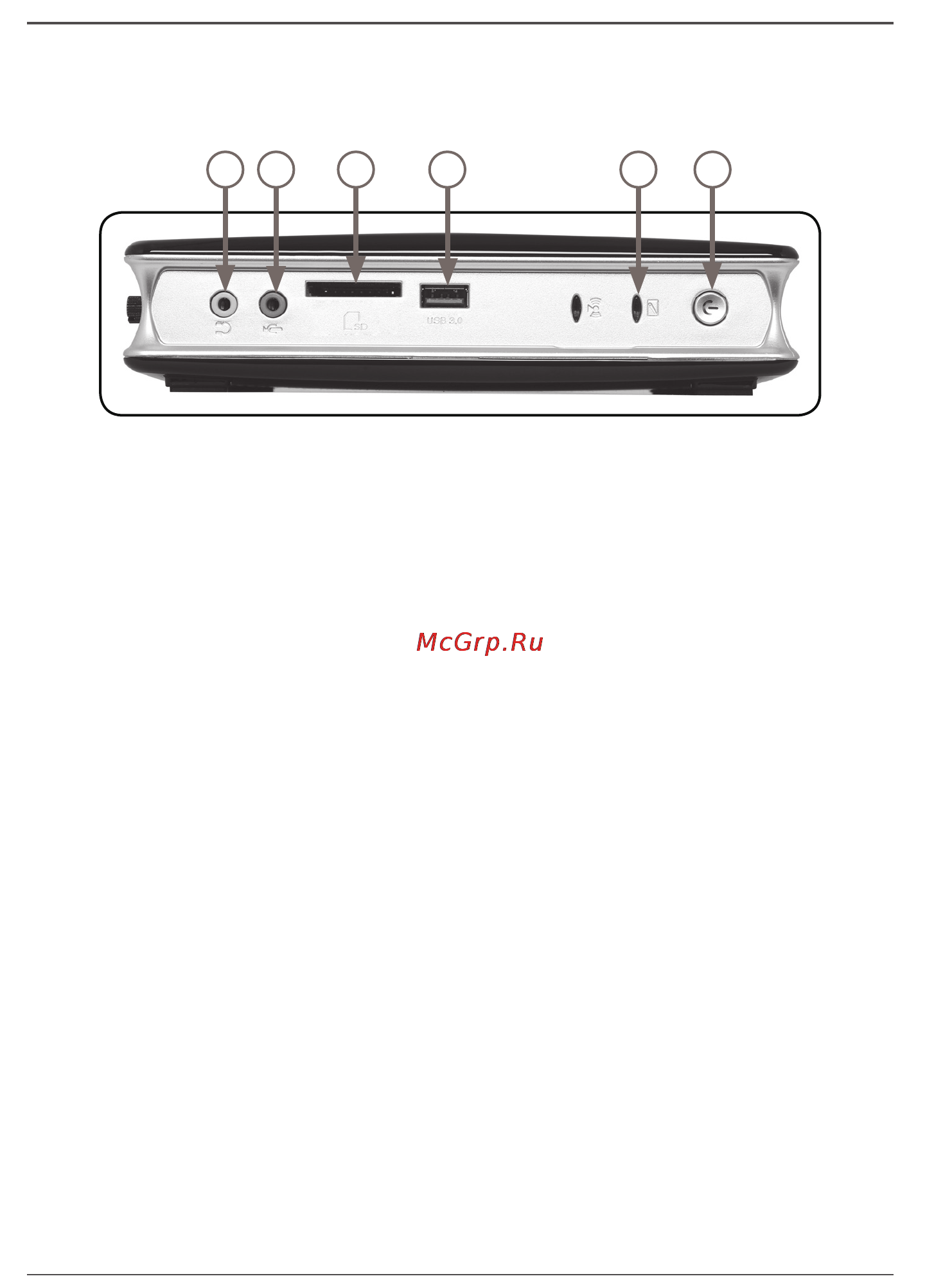

Refer to the diagram below to identify the components on this side of the system

1. Headphone/Audio Out jack

The stereo headphone jack (3.5mm) is used to connect the system’s audio out

signal to amplied speakers or headphones.

2. Microphone jack

The microphone jack is designed to connect the microphone used for video confer-

encing, voice narrations or simple audio recordings.

3. Memory card slot

The built-in memory card reader reads SD/SDHC/SDXC cards used in devices like

digital cameras, MP3 players, mobile phones and PDAs.

4. USB 3.0 port

The USB 3.0 port supports the SuperSpeed USB 3.0 devices and is backwards

compatible with USB 2.0/1.1 devices. Use this port for USB 3.0 devices for

maximum performance with USB 3.0 compatible devices.

5. Hard disk LED

The hard disk LED blinks when data is being written into or read from the hard disk

drive.

6. Power switch

The power switch allows powering ON and OFF the system
