Parts
56 312394W
Lid Assemblies LC0047, LC0048, LC0051, LC0052
CAUTION
The electric agitators used with off-board tanks will fail
prematurely when material viscosity exceeds
48,000 cps. Use pneumatic agitators if material vis-
cosity exceeds 48,000 cps.
1608
Apply thread sealant tape to male npt threads prior to installation.
1

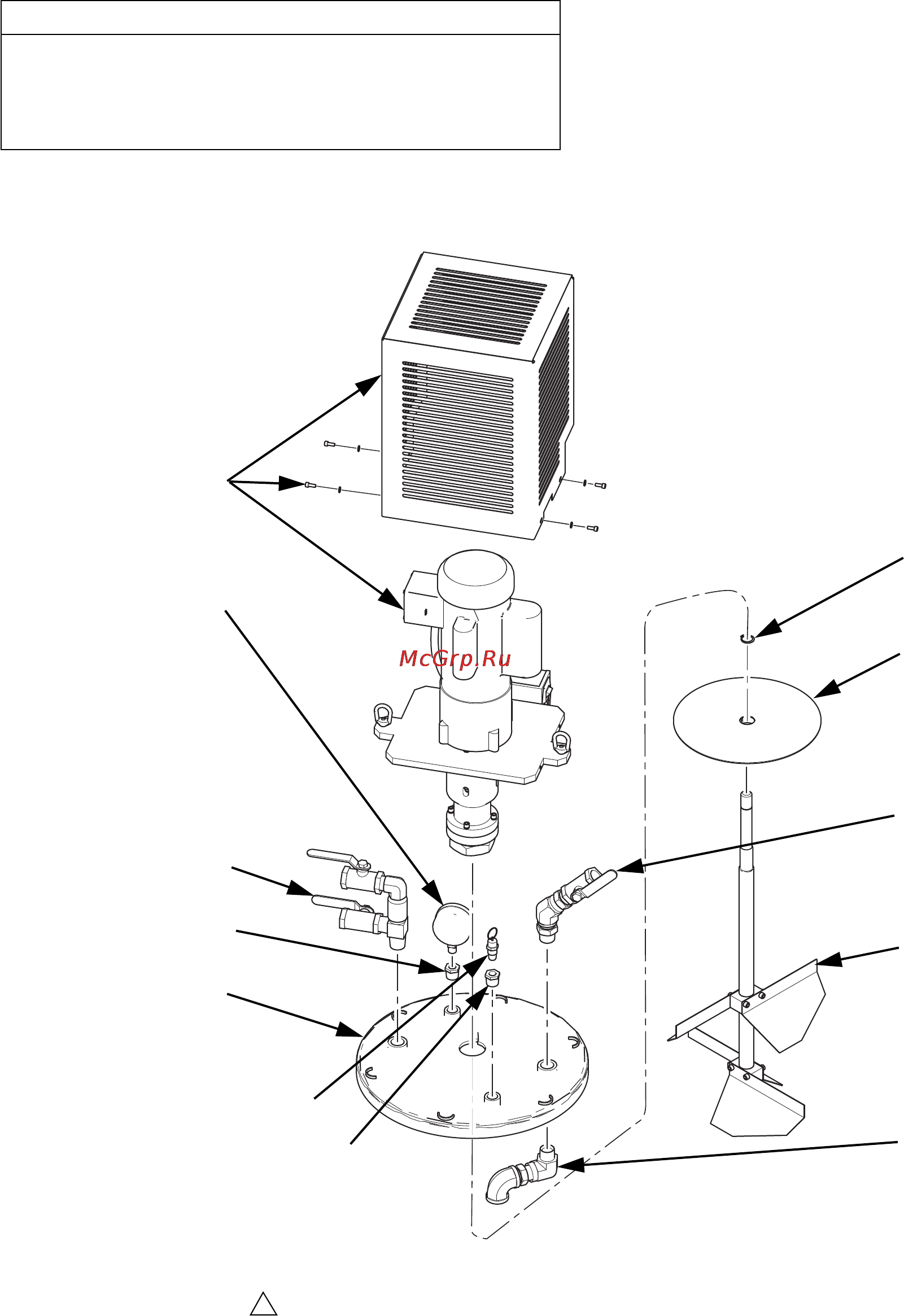

Assembly LC0051 Shown
ti17647a
1610
1603
1601
1609
1605
1607
1602
1604
1611
1607
1606
