LDM5 Meter Setup and Operation Instructions
312668Z 11

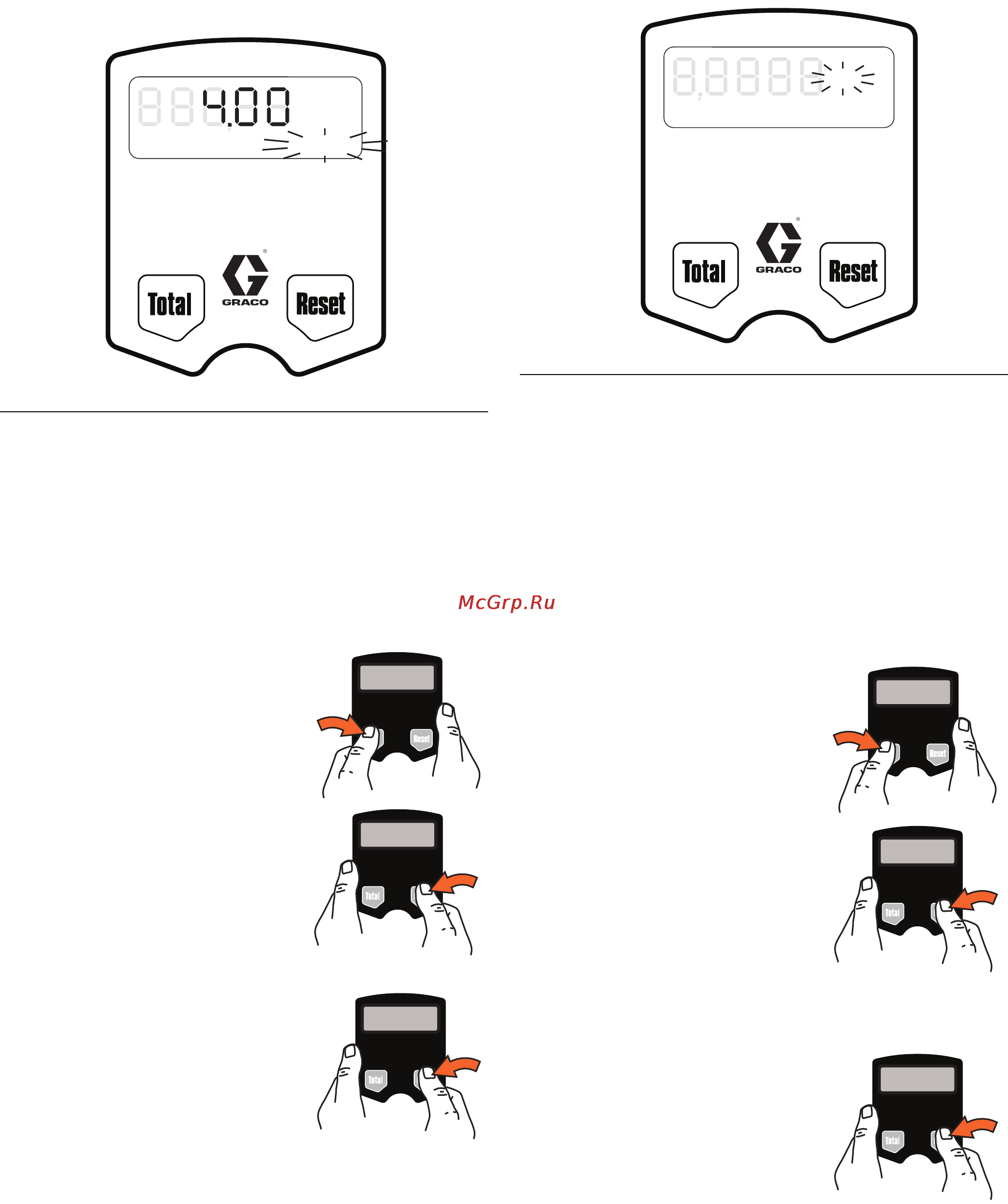

Resettable Total (FIG. 11)
Resets dispensed total on screen to zero or stores dis-
played dispense total. The resettable total accumulates
until the next time it is manually reset.
1. If Resettable Total Menu is not already displayed,
complete steps 1 and 2 of Setup Menus section.
2. R-TOTAL blinks indicating you are on the Resetta-
ble Total Menu. The currently stored total and unit of
measurement is displayed (F
IG. 11).
3. Do ONE of the following.
a. Press and hold the Total
button. Resettable total is
set to zero (0).
0 GAL/QTS/PTS or 0
LITERS is displayed.
b. Press and hold the Reset
button. The zero (0) total
is stored. Units of Mea-
surement Menu displays.
OR
• Press and hold the Reset
button. The currently dis-
played total is stored. The
Units of Measurement
Menu displays.
Units of Measurement (FIG. 12)
Sets unit of measurement to quarts, gallons, pints, or
liters.
1. If the Units of Measurement Menu is not already dis-
played, complete steps 1 - 3 of the Setup Menus
section, page 10.
2. The currently stored unit of measurement: GAL,
QTS, PTS or LITERS blinks indicating you are on
the Units of Measurement Menu screen.
3. To change the unit of measurement, do ONE of the
following.
a. Press and hold Total but-
ton to display next unit of
measurement in the
sequence.
b. When measurement unit
you want to use is dis-
played, press and hold
Reset button. Display
advances to Calibration
Menu.
OR
• Press and hold Reset but-
ton. The currently dis-
played measurement unit
is stored. The Calibration
Menu displays.
F
IG. 11
GAL
QTSPTS
LITERS
R-TOTAL
Auto
Min. Dispense Volume 0.5 liter (0.13 gal)
Minimum Flow Rate 1.0 l/min. (0.26 gpm)
Maximum Flow Rate 19.0 l/min. (5.00 gpm)
Maximum Working Pressure: 70 bar (1000 PSI)
ti12047a
FIG. 12
ti0272C
GAL
QTSPTS
LITERS
R-TOTAL
AUTO
Min. Dispense Volume 0.5 liter (0.13 gal)
Minimum Flow Rate 1.0 l/min. (0.26 gpm)
Maximum Flow Rate 19.0 l/min. (5.00 gpm)
Maximum Working Pressure: 70 bar (1000 PSI)
ti12045a
