Graco 255277 LDP5 [15/34] Error code
![Graco 24F890 LDP5 [15/34] Error code](/views2/1193217/page15/bgf.png)
LDM5 Meter Setup and Operation Instructions
312668Z 15
Error Code

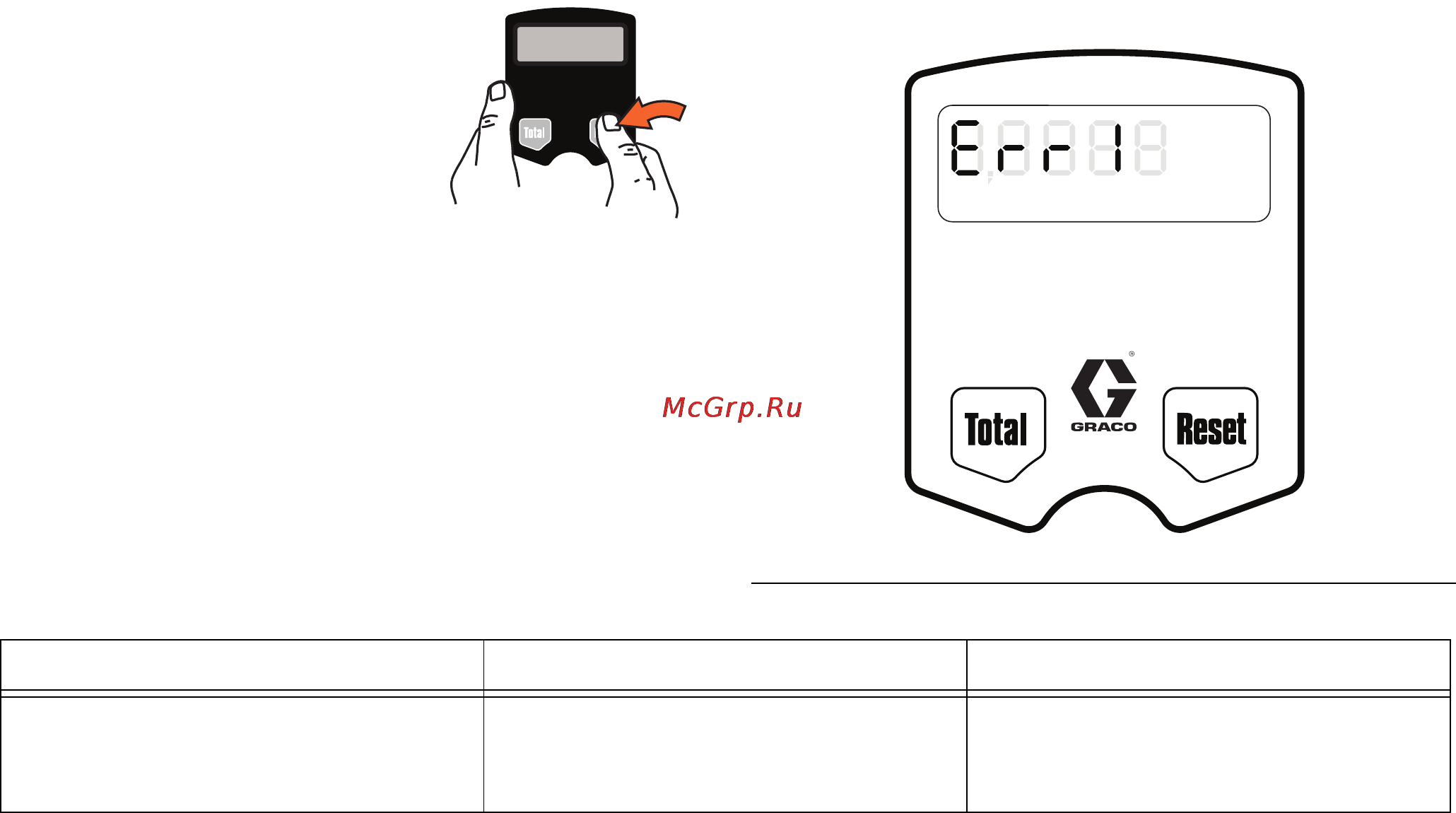

If an error code is shown on the
display, as shown in F
IG. 19, you
can press the Reset button to
clear the error code and view the
dispensed amount. Even in an
error condition, the unit keeps
track of the amount dispensed.
FIG. 19
GAL
QTSPTS
LITERS
R-TOTAL
AUTO
Min. Dispense Volume 0.5 liter (0.13 gal)
Minimum Flow Rate 1.0 l/min. (0.26 gpm)
Maximum Flow Rate 19.0 l/min. (5.00 gpm)
Maximum Working Pressure: 70 bar (1000 PSI)
ti12051a
Error Code Cause Solution
Err 1
Flow rate is higher than 5 gpm. Adjust the flow rate so it is not higher
than 5 gpm.
Air was pumped through the line. Purge air from the line.
