LDM5 Meter Setup and Operation Instructions
312668Z 9
LDM5 Meter Setup and Operation Instructions
Setup
Terms
The following terms are shown on the display and/or
used often in this instruction manual.
• R-TOTAL: Resettable Total
Shows the cumulative amount that has been dis-
pensed. Can be reset to zero.
• TOTAL: Non–Resettable Total
Shows the cumulative amount that has been dis-
pensed for the life of the unit. Cannot be reset.
• Standard Dispense Mode
Dispense mode in which display counts up from
zero or from where it recently stopped.
• ASLEEP / AWAKE Mode
Asleep is a battery–saving mode in which the dis-
play goes blank after 45 seconds of inactivity. The
display comes Awake from sleep mode when you
press any button on the keypad or squeeze the trig-
ger to dispense fluid.

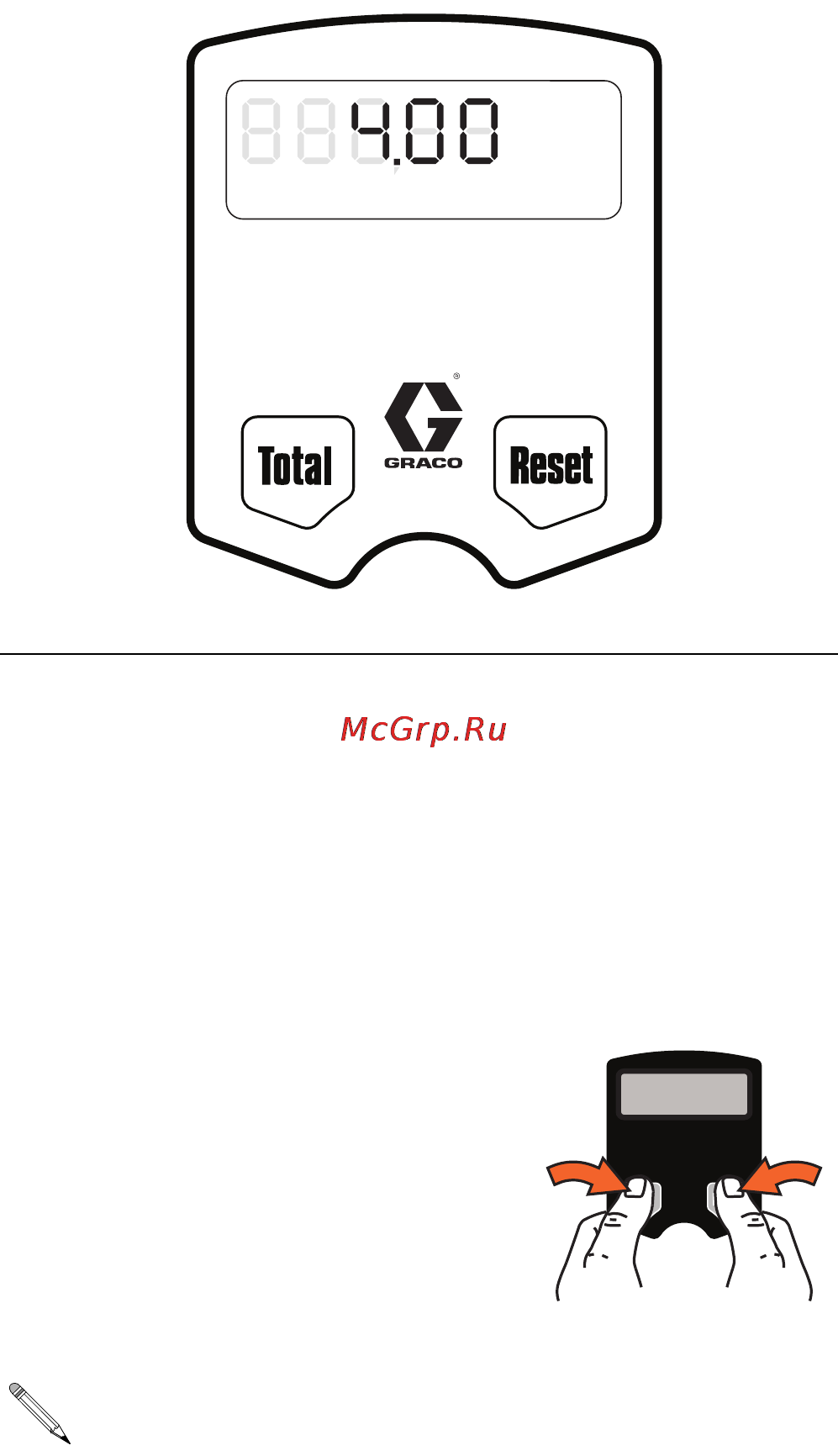

Keypad Buttons (FIG. 9)
• TOTAL*
Displays the resettable total, non–resettable total,
and calibration factor.
• RESET*
Resets the displayed amount to zero or press to
enter the Standard Dispense Mode (see Terms).
* Press the hold Reset and Total
buttons simultaneously to dis-
play Setup Menus (page 10).
F
IG. 9
All buttons are disabled while fluid is being
dispensed.
GAL
QTSPTS
LITERS
R-TOTAL
AUTO
Min. Dispense Volume 0.5 liter (0.13 gal)
Minimum Flow Rate 1.0 l/min. (0.26 gpm)
Maximum Flow Rate 19.0 l/min. (5.00 gpm)
Maximum Working Pressure: 70 bar (1000 PSI)
ti12043A
