LDP5 Meter Setup and Operation Instructions

312668Z 21

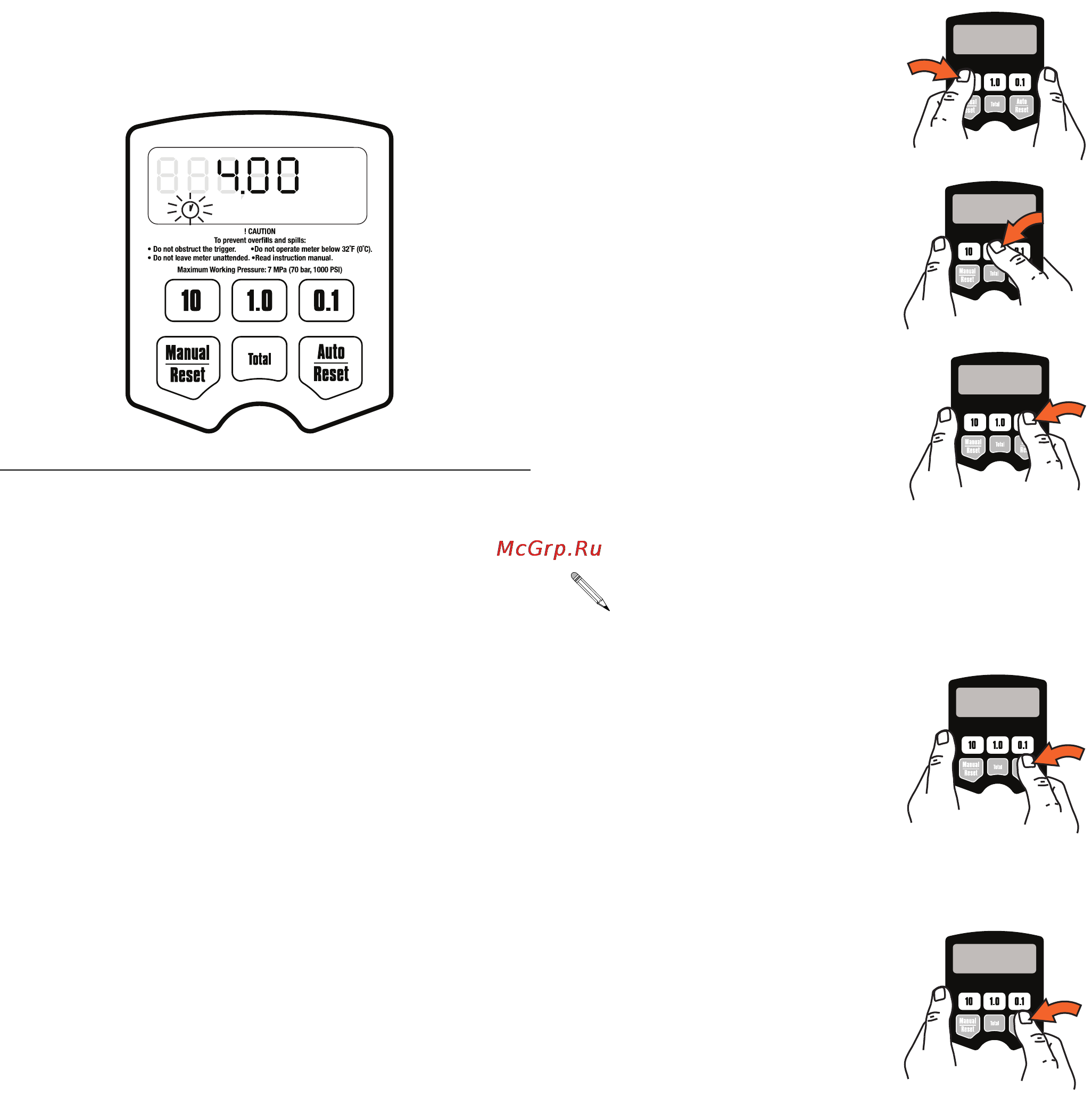

Shut–Off Default Amount (FIG. 28)

Prevents accidental overfills when dispensing with the

trigger locked in Manual mode. The shut–off default

amount is factory preset at 5 quarts.

1. If the Shut-Off Default Amount Menu is not already

displayed, complete steps 1 - 6 of the Setup Menus

section, page 17.

2. The clock icon blinks indicating you are in the

Shut–off Default Amount Menu. The stored shut–off

default amount is displayed.

3. Do ONE of the following.

a. To enter a new shut–off

default amount, press and

hold the 10 button to

change the 10’s digit,

the 1.0 button to change

the 1’s digit,

and the 0.1 button to

change the first decimal

digit. You cannot enter

zero.

b. Press and hold the Auto /

Reset button to lock in the

new shut–off default

amount and return to the

unit to the Manual Dis-

pense Mode.

• Press and hold the

Auto/Reset button to

return to the unit to the

Manual Dispense Mode.

IG. 28

GAL

QTSPTS

LITERS

R-TOTAL

AUTO

ti12058a

To reset the display to 0.00, press and hold the

Manual/Reset button.
