Graco Fire-Ball 300 [12/18] Model 222069 245694 240885 25 lb to 50 lb pail size
![Graco Fire-Ball 300 [12/18] Model 222069 245694 240885 25 lb to 50 lb pail size](/views2/1193477/page12/bgc.png)
Parts
12 307878Z
Parts
Ref No 2, Dispense Kit 222070
Model 225827, 240884: 35 lb to 50 lb pail size
Model 222069, 245694, 240885: 25 lb to 50 lb
pail size
Ref. Part No. Description Qty.
2a 109151 HOSE, 1/4 npt (mbe), 12 ft (3.7 m) 1
2b 242056 VALVE 1
2c 114558 COUPLER, quick-disconnect 1
2d 169971 NIPPLE, quick-disconnect 1
2e 202577 Z-SWIVEL 1
Ref. Part No. Description Qty.
1 239877 PUMP, 50:1 Fire-Ball, See manual
308883 for parts
1
2 222070 DISPENSE KIT, See parts list
above
1
3 204134 PAIL 1
4 24R350 COVER, See manual 306345 for
parts, model 225827
1
204574 COVER, See manual 306345 for
parts, model 240884
1
6 203976 HOLSTER 1
7 240831 CE INSTALLATION KIT, See parts
list on page 16, model 240884
1
Ref. Part No. Description Qty.
1 239877 PUMP, 50:1 Fire-Ball, See manual
308883 for parts
1
2 222070 DISPENSE KIT, see parts above 1
245697 DISPENSE KIT, Model 245694
only, See parts list on page 14
1
3 222059 COVER, includes items 3a- 3h 1
3a 207617 COVER, pail 1
3b 168102 PLATE, stop, pump 1
3c 158048 BUMPER, button, rubber 1
3d 159608 RIVET 1
3e 150868 HOLDER, gun 1
3f 100200 SCREW, thumb 3
3g 100025 NUT, 1/4 npsm thd 1
3h 100579 PIN, cotter, 1/8” x 1” 1
5 220653 FOLLOW PLATE, See manual
306345 for parts, model 240885
1
24F901 FOLLOW PLATE, see manual
306345, models 222069, 245694
1
7 240831 CE INSTALLATION KIT, See parts
list on page 16, model 240885
1
2c
2d
2a
2e
2b
6
1
4
3
7

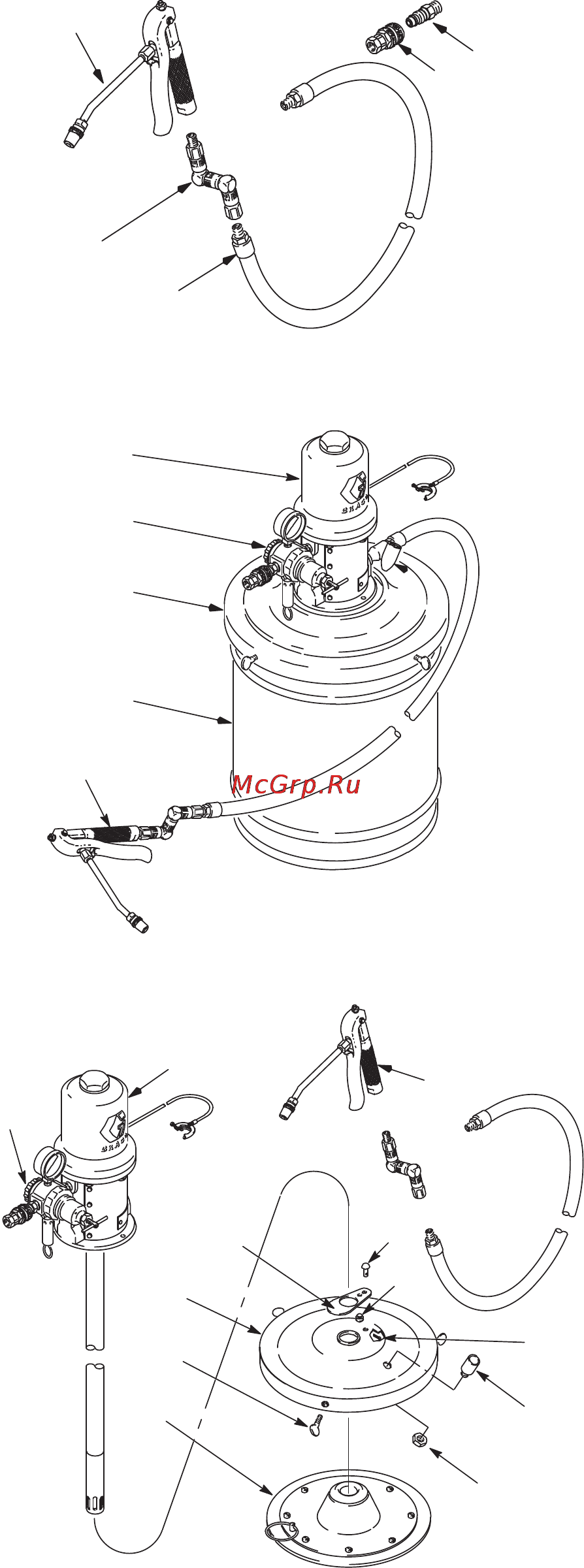

Model 240884 shown
2
1
5
3f
2
3b
3c
3h
3e
7
Model 240885 shown
3d
3a
Ref No. 2
