Installation
6 307878Z
Models 225006, 225026, 240880,
240881, and 245696
Refer to FIG. 3 for the following instructions.
1. Models 225006 and 240880
: Assembly the base
(3) as shown in the Parts Drawing on page 14.
Models 225026, 240881, and 245696
: Assemble
the truck (3) as shown in the Parts Drawing on page
13.
2. Remove the fluid outlet adapter included with the
pump, and screw the holster (6) into the pump out-
let, using thread sealant.
3. Place an open 120-lb (54.43 kg) drum of grease on
mounting base or truck and secure it with the
hold-down clamps.
For portable base models 225006 and 240880:
For steel drums
use pointed end of bracket (3c).
Position clamps above drum bead. Tight bolts (3b).
For fiber drums
reverse bracket (3c) to use flat end.
For truck model 225026, 245696 and 240881:
For steel drums
: use pointed end of bracket (3c).
Position clamp above drum bead. Tighten thumb
nuts (3d).
4. Press the follow plate (5) down firmly onto the
grease, and rotate it to eliminate air pockets and
reduce channeling.
5. Insert the pump through the cover (4).
6. Slide the cover up far enough to let the pump pass
easily through the follow plate grommet.
7. Secure the cover (4) on the drum with the thumb
screws (A). It is not necessary to bolt the pump to
the cover.
8. Assemble the gun (2b) and hose (2a), and connect
the hose to the pump fluid outlet.
9. Connect the nipple (2d) to the pump air inlet or air
regulator (7b) inlet, whichever is applicable.
10. Connect the quick-disconnect couple (2c) to the air
supple hose.

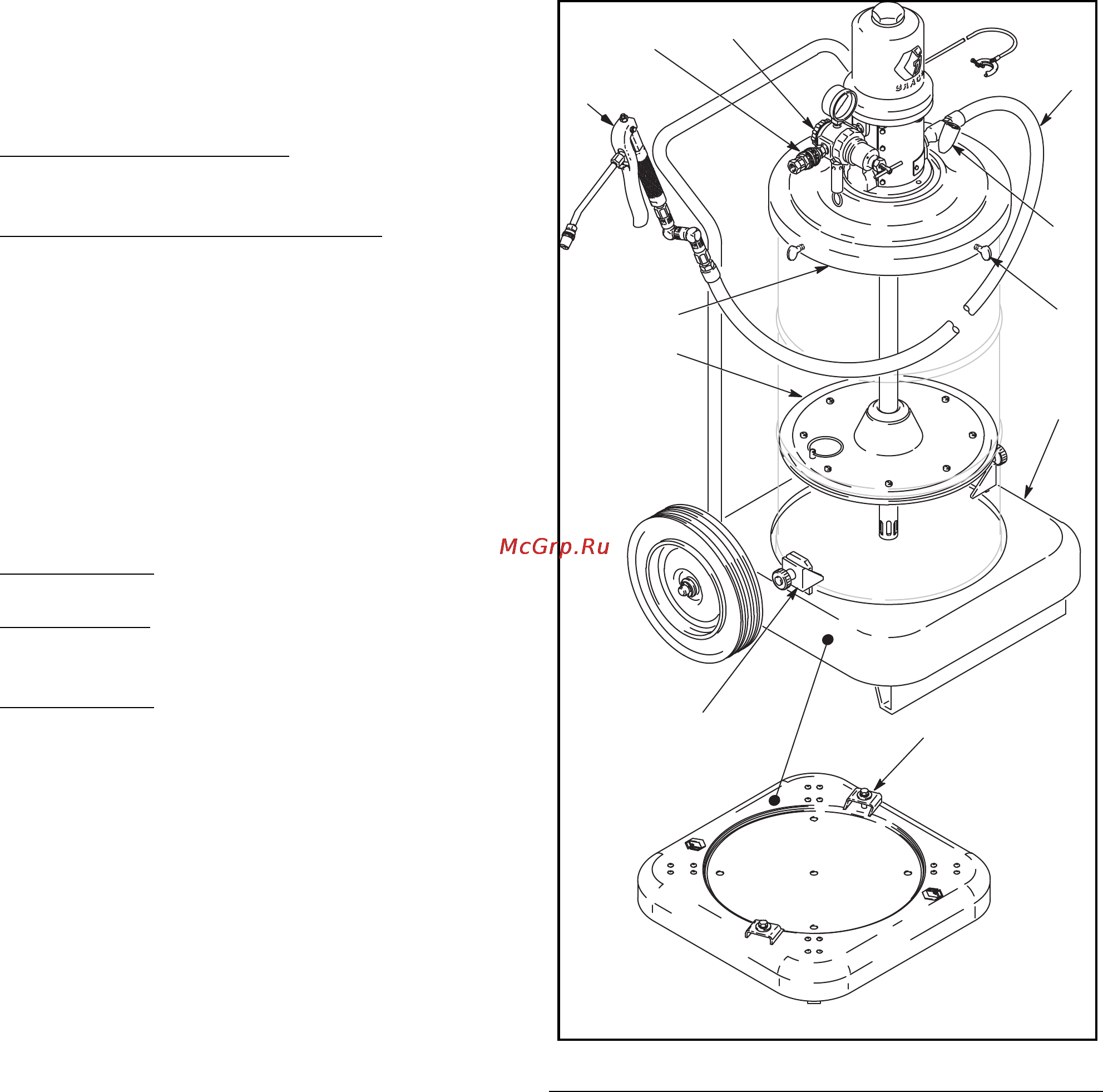

FIG. 3
2c, 2d
4
5
6
2a
3
3b, 3c
Model 240881 shown
7b
A
2b
3c, 3d
2a
