Installation
307878Z 7
Models 222069, 240885, and
245694
Refer to FIG. 4 for the following instructions.
1. Remove the cover from the pail and scoop the lubri-
cant from the center to the sides of the pail to make
its surface concave.
2. Center the follow plate (5) in the pail opening. Press
the plate firmly downward and rotate it over the
lubricant surface to eliminate air pockets and pre-
vent channeling.
3. Place the cover (3a) on thep ail, and tighten the
thumb screws (3f).
4. Assemble the gun (2b) and hose (2a), and connect
the hose to the pump fluid outlet.
5. Connect the nipple (2d) to the pump air inlet or air
regulator (7b) inlet, whichever is applicable.
6. Connect the quick-disconnect coupler (2c) to the air
supply hose.
Models 222245 and 240882
Refer to FIG. 5 for the following instructions.
1. Assemble the cart (6). Use only 2 of the 4 brackets
(5d) supplied.
2. Install the rear positions of the drum shelf (6b).
3. Press the follow plate (4) down firmly onto the
grease, and rotate it to eliminate any air pockets and
reduce channeling. Insert the pump through the
cover (3). Slide the cover up far enough to allow the
pump to pass easily through the follow plate grom-
met and into the grease.
4. Using items 5a to 5d, secure the cover to the drum,
and the drum to the cart. It is not necessary to bolt
the pump to the cover.
5. Assemble the gun (2b) and hose (3a), and connect
the hose to the pump fluid outlet.
6. Connect the quick-disconnect nipple (2d) to the
pump air inlet or air regulator (7b) inlet, whichever is
applicable.
7. Connect the quick-disconnect couple (2c) to the air
supply hose.

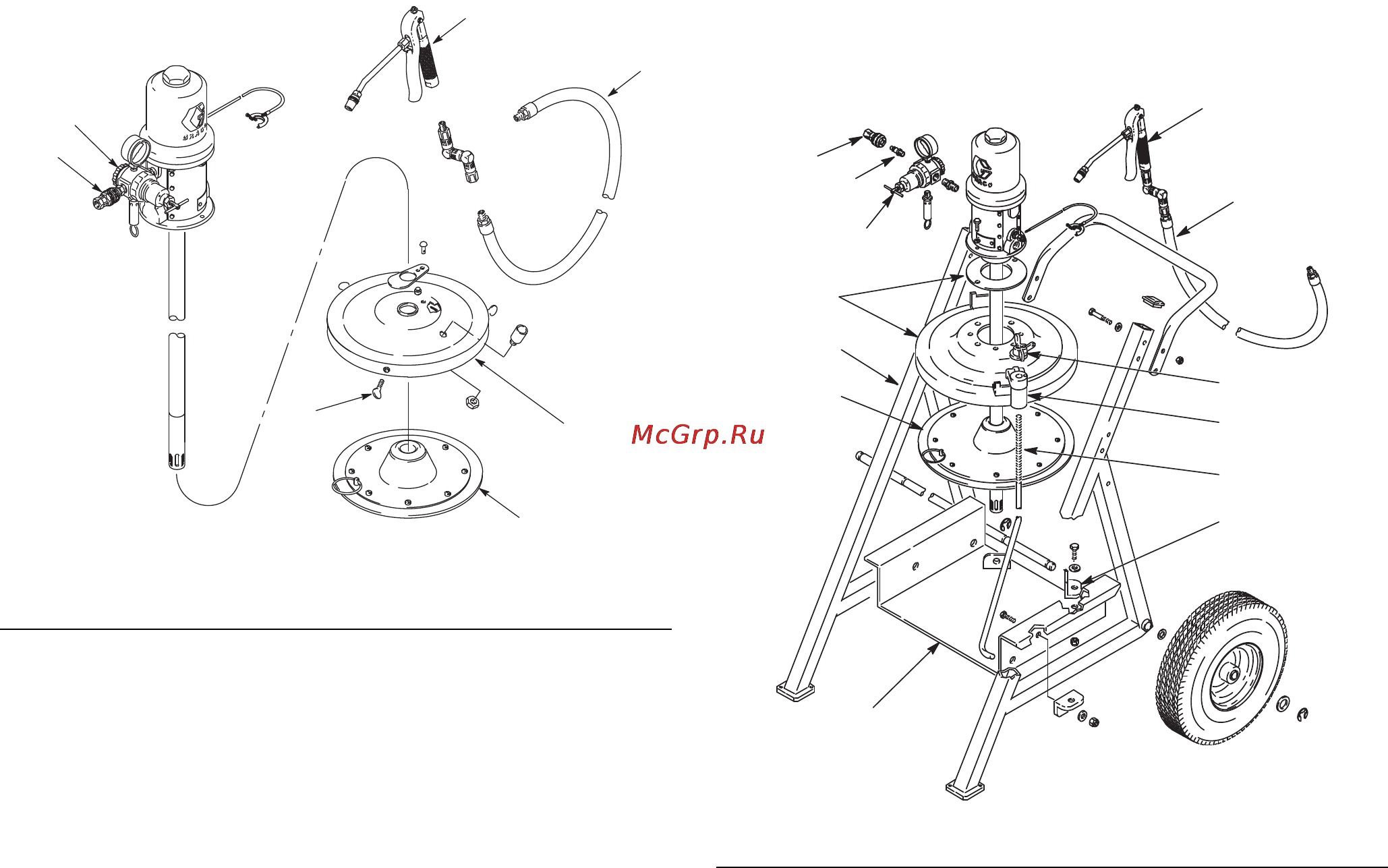

FIG. 4
2a
2c,
2d
3f
3a
7b
Model 240885 shown
2b
5
FIG. 5
2b
2c
2d
3
6
4
6b
5a
5b
5c
5d
Model 240882 shown
2a
7b
