309003 7
Installation

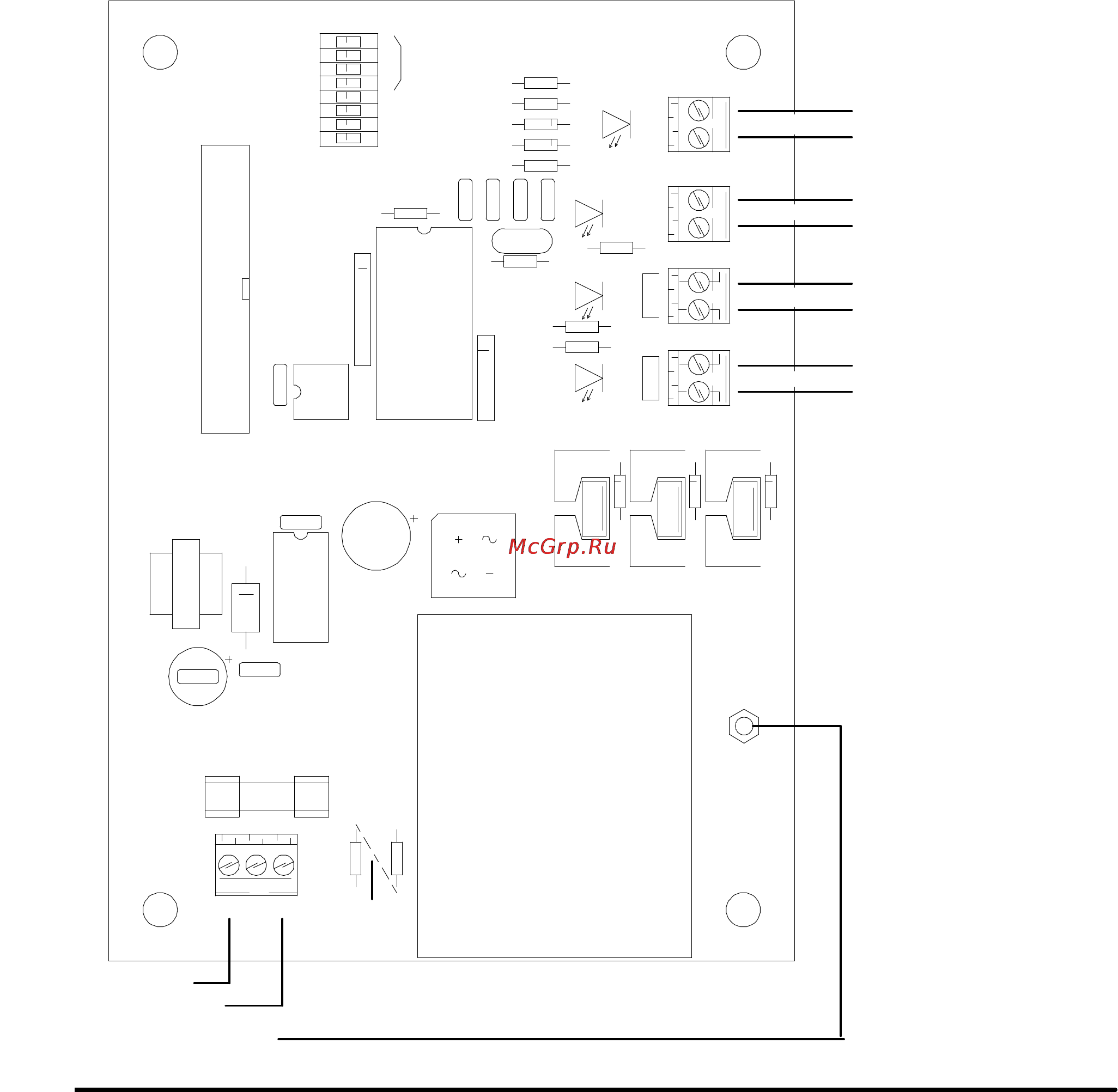

Fig. 2
DIp Switch
SW1
8 Remote Run Test
7 Test Mode
6 Program Mode
5 x10 CPM Multiplier
CPM Rate
1
2
3
4
Microprocessor
Remote Run
Input
Air Supply
Valve Signal
Output
Solenoid
Valve #1
Solenoid
Valve #2
24 VDC, 6W max.
24 VDC, 6W max.
24 VDC, 6W max.
24 VDC, 6W max.
+
–
+
–
+
–
+
–
Power Supply
J1
J2
J3
Terminal
Fuse
L
N
L
N
GND
Power
100–240 VAC
Block
750 mA
2
1
25
26
The Remote Run input is an external switch input. A
switch connected to this input should be a potential
free contact.
The Air Supply Line Valve Signal is a 24 VDC output
signal. This signal drives the external 6W solenoid
valve (Graco Part No. 115605), which controls the
main air supply (required for pumps larger than the
Husky 205).
Solenoid Valve #1 and #2 Signals (24 VDC output
signals) are pre-connected to the air valves on the
right side of the CycleFlo.
Power Connections
Connect Line (L), Neutral (N), and Ground (GND) as
shown in Fig. 2. Ground wire must be attached to the
ground stud and fastened down with the nut provided.
