Installation
4 3A1189G
Installation

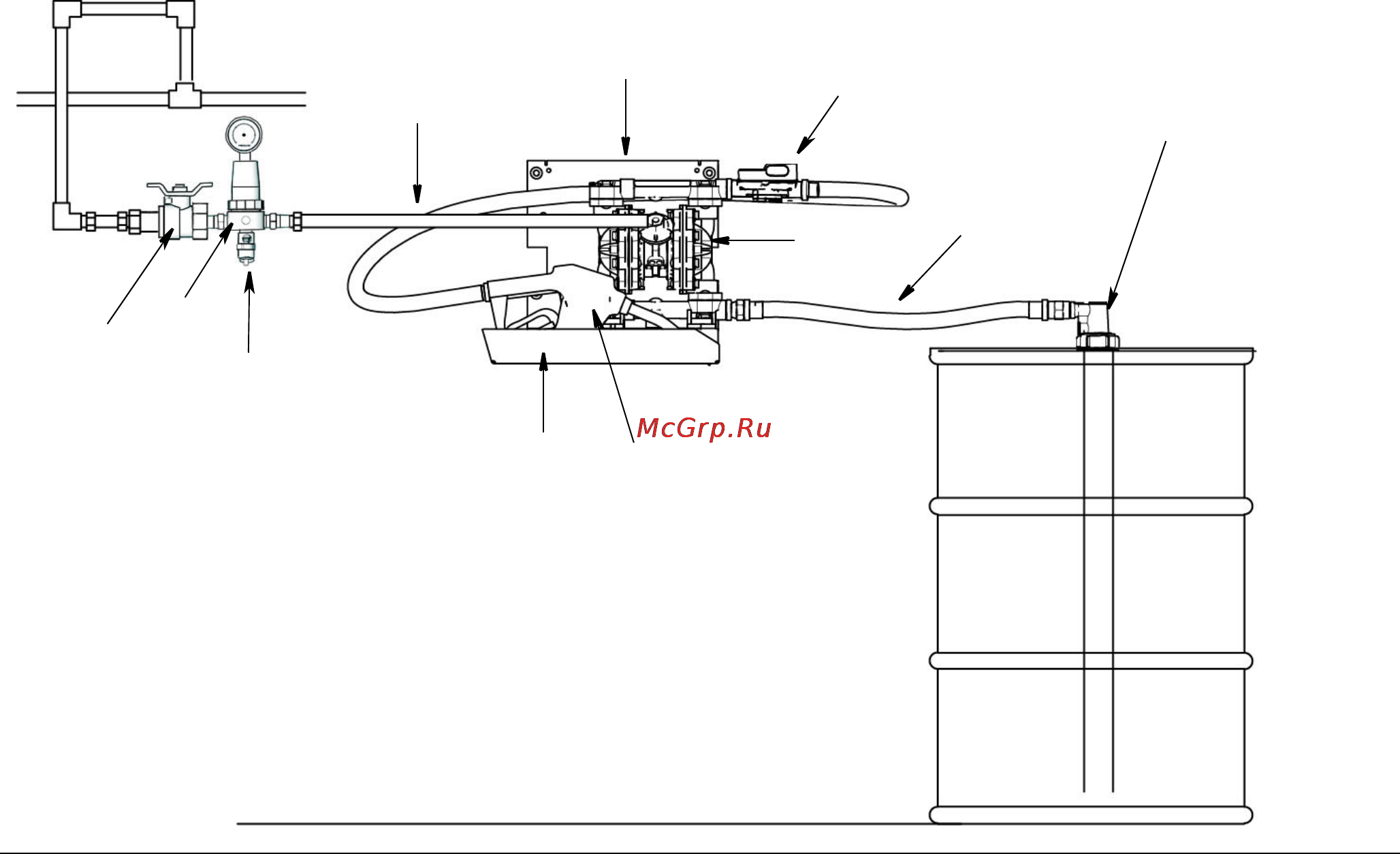

Typical Installations
Model 24F531 - Wall Mounted, with Meter
Model 24F878 - Wall Mounted, no Meter
Key
APump
B Bleed-type master air valve (required for pump)
C Air supply line
D Pump air regulator
E Fluid supply hose
F Suction kit
G Wall mounting bracket
H Fluid nozzle
JMeter
K Nozzle bracket and bath
L Safety valve - set to 50 psi (3.4 bar, 0.34 MPa)
FIG. 1
K
B
G
D
J
H
C
A
F
E
L
